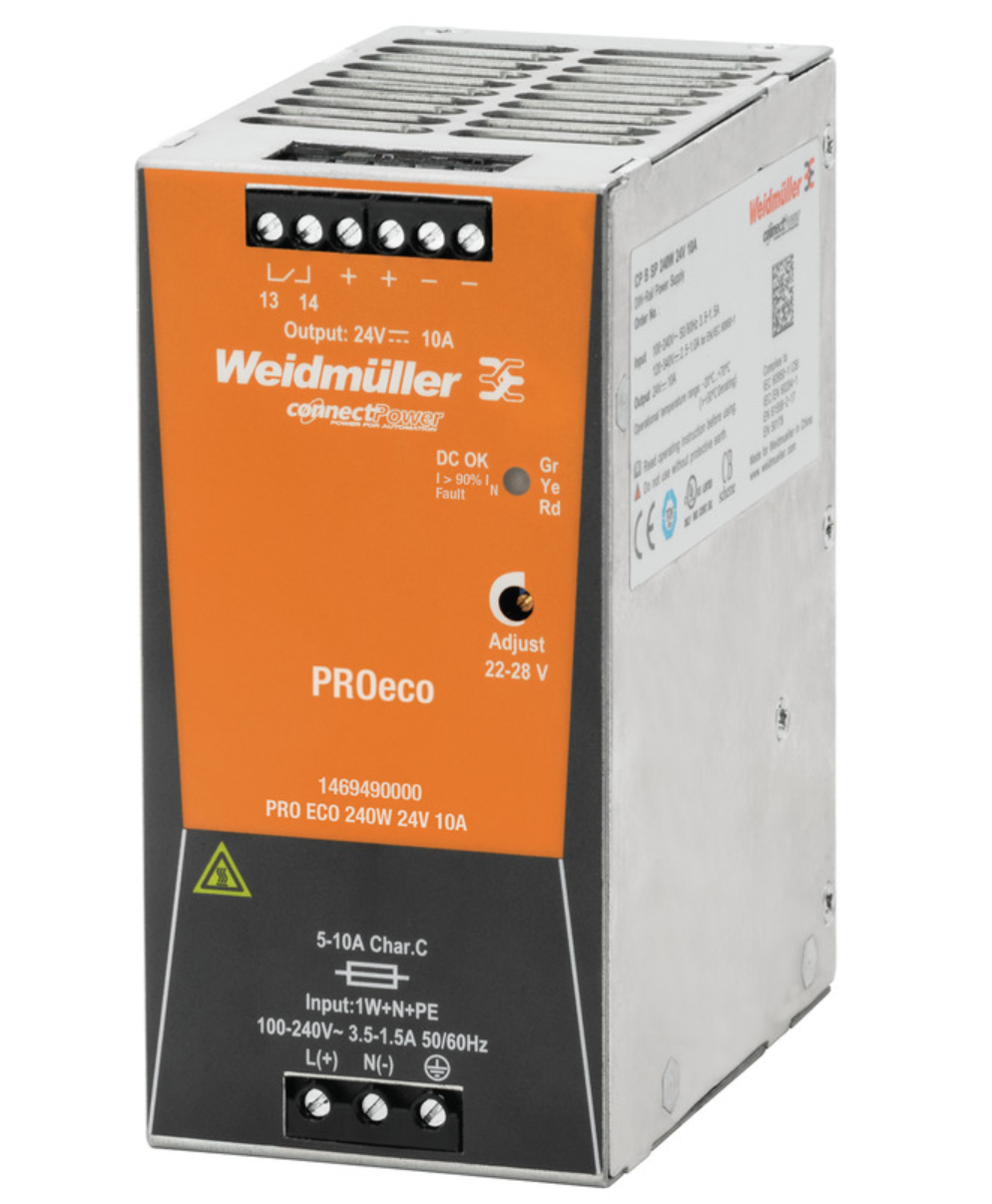

Weidmuller PRO ECO 240W 24V 10A
PROeco switch-mode power supply units feature a compact design, high efficiency and are extremely easy to maintain. Thanks to temperature protection, short-circuit and overload resistance they can be universally used in all applications.
Technical data
| Series | PRO ECO |
| Type | Switched mode |
| Electrical Phase |
1 |
| Input Voltage Type |
ac or dc |
| Outputs |
1 |
| Input Voltage |
85 to 264V ac / 80 to 370V dc |
| Output Voltage type |
dc |
| Output Voltage |
24V dc |
| Output Current |
10A |
| Power Rating |
240W |
| Dimensions H x W x D |
125 x 60 x 100mm |
| MTBF |
>500000h |
| Min Temp |
-25°C |
| Max Temp |
+70°C |
| Ripple and Noise |
<50mV |
| Mounting type |
Din Rail |
| Standards met |
61000-4-4, 61000-4-5, 61000-4-6, CE Certified, cULus Listed, EAC, EN 50178/VDE 0160, EN 55022, EN 60204, EN 60950, EN 61000-3-2, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-8, IEC 1709, IEC 60068-2-27, IEC 60068-2-6, IEC 61558-2-16, VDE 0100-410/DIN57100-410, VDE 0106-101 |
| Special Features |
Compact Size, Easy to Maintain, Flexible, High Efficiency |
