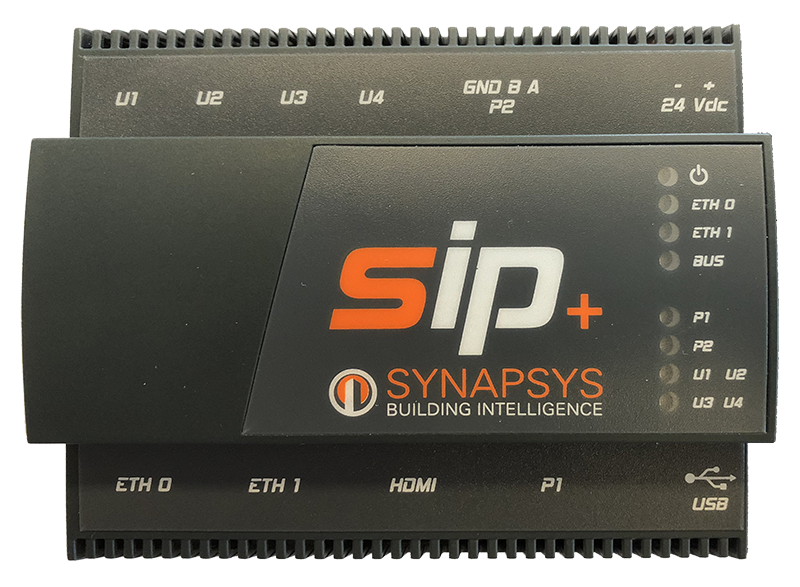

A Synapssys SIP+ DAIKIN Building Intelligence electrical module in black plastic, featuring orange and white branding, terminal labels, and LED status indicators.

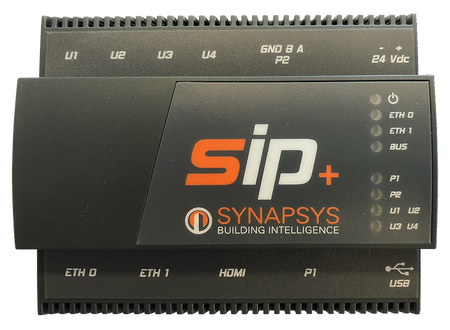

A Synapssys SIP+ DAIKIN Building Intelligence electrical module in black plastic, featuring orange and white branding, terminal labels, and LED status indicators.
Synapsys - Contact us directly for Trade prices and Account sales

SIP+ Daikin AC interface

In stock
£2,195.00
Varient
Estimated UK delivery 1 - 7 days

The price shown is excluding VAT. If VAT is applicable, it will be calculated at checkout based on the shipment address.

Need help, call 01444 246 128

Discover the power of SIP+ Daikin, the solution designed to expose values from devices connected to the Daikin AC network, available through a Daikin Centralised Controller, e.g. Daikin I-Touch Manager or Daikin I-Touch Manager Adapter, to a BMS (BACnet or Trend), a SCADA system (ModBus Slave), and/or to IoT (MQTT/REST) cloud based platforms.

Each Daikin I-Touch Manager or Adapter supports up to 64 devices per D-Net AC network. Available parameters from each connected device on the AC network can be linked to a defined parameter to expose these values via a required protocol using the configuration web pages within the SIP+ Daikin hardware.

To simplify the commissioning, the Daikin driver includes a discovery tree listing all available devices/parameters, and shows a list of selected Daikin parameters. Connectivity to BMS/IoT/SCADA platforms are configured via the available drivers within the SIP+ Daikin device.

SIP+ Daikin Features

  • Max 4 AC Networks
  • Max 64 devices per AC network
  • Max 2560 points from any compatible unit
  • BMS compatible application
  • IoT compatible application
  • 2 x Ethernet Ports
  • 1 x RS485 Port (ModBus Master connectivity)
  • 1 x RS232 Port (ModBus Master connectivity)

Installation and set up

Commissioning of the device is simple with a full range of supporting documentation and tools available as free downloads from our SIP Integrator support portal. Simply register via your email address to access these free downloads as well as hints, tips and the latest software updates.



Specifications

Technical data

Operating temperature 0 to 55°C
Storage temperature
 -25 to 85°C
Mounting DIN Rail


Electrical data

Input voltage range
 24VDC
Power consumption
 0.4A@24VDC



Function

Device type
 Interface

Dimensions

Length 90mm
Width
 45mm
Height
 60mm
Colour Grey
