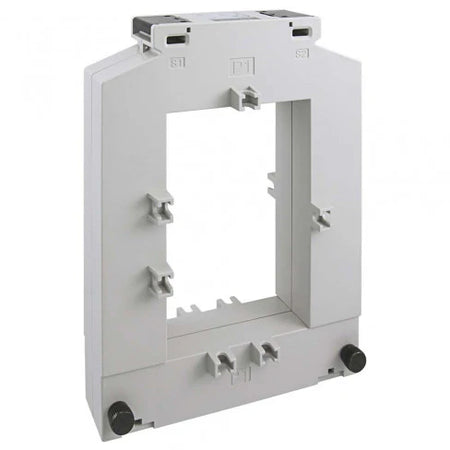

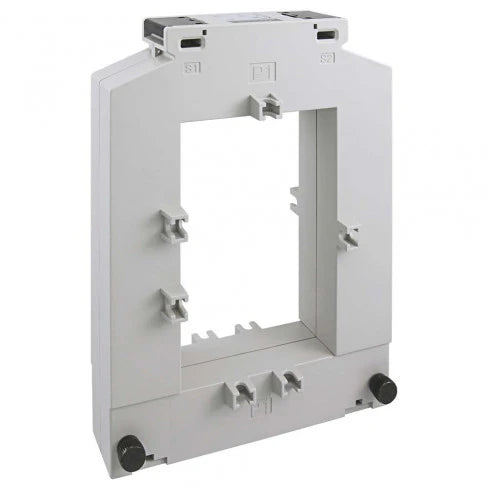

Rayleigh Instruments RI-CTS812 2000/5A Split Core Measuring CT

In stock
SKU: 01805090
Regular price £43.00
Title
Estimated UK delivery 1 - 7 days

The price shown is excluding VAT. If VAT is applicable, it will be calculated at checkout based on the shipment address.

Need help, call 01444 246 128

The RI-CTS812 Series forms part of a large family of split-core single-phase moulded case current transformers from Rayleigh Instruments.

These transformers are suitable for monitoring current flow in commercial, industrial or utility applications. They are designed to connect any standard metering or relay product requiring a 5A or 1A output and are available with Primary current input ranges from 500A to 2000A.

The RI-CTS812 Series have been designed for ease of installation into existing plants where removal of busbars or cable lugs is impractical. They also have clear markings moulded into the case to indicate the correct direction of primary current flow to minimise installation errors

Features

  • From 500A to 2000A Primary currents
  • 5A or 1A Secondary output
  • 145mm width
  • 80 x 120.5mm aperture
