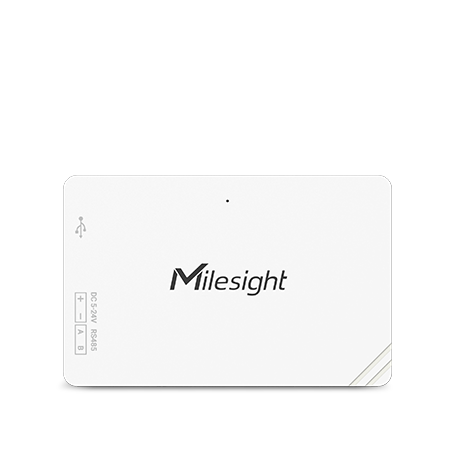

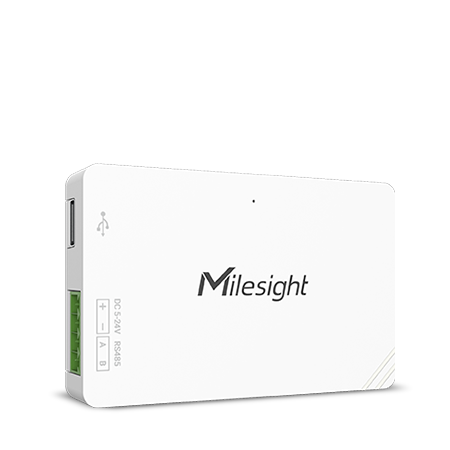

Milesight UC100-Modbus to LoRaWAN® Converter
Couldn't load pickup availability
The price shown is excluding VAT. If VAT is applicable, it will be calculated at checkout based on the shipment address.
Need help, call 01444 246 128
The Milesight UC100 loT Controller can read up to 32 Modbus RTU devices and support Modbus transparent transmission, serving as a converter from Modbus RS485 to LoRaWAN®. Designed for remote control and data acquisition, it supports multiple trigger conditions and actions, and can work autonomously even when the network is unavailable.
The UC100 IoT LoRaWAN® Controller is an easy and intelligent device dedicated to collecting data from on-site Modbus RTU devices, and transmitting them to the Internet via LoRaWAN®.
Feature
- Modbus RS485 to LoRaWAN® Converter
- Local & Remote Easy Configuration
- Data Collection Up to 32 Registers
-
Milesight D2D Controller & Agent
Specifications
| Wireless Transmission | |
|---|---|
| Technology | LoRaWAN®, Milesight D2D |
| Antenna | Internal Antenna |
| Frequency | CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4 |
| Tx Power | 16dBm(868)/20dBm(915)/19dBm(470) |
| Sensitivity | -137dBm @300bps |
| Mode | OTAA/ABP Class A |
| Data Interface | |
|---|---|
| Port | 1 × RS485 |
| Connector | 2-pin 3.5 mm Terminal Block |
| Terminal Resistor | 1 × 120 Ω Resister Switch |
| Baud Rate | 1200~115200 bps |
| Protocol | Modbus RTU, Passthrough |
| Others | |
|---|---|
| USB | 1 × Type-C for Power Supply, Configuration and Console |
| Reset Button | 1 × Reset Button (Internal) |
| LED Indicator | 1 × System |
| Power Connector | 1 × 3.5mm 2-pin Terminal Block, with Surge-Protection and Reverse Polarity Protection |
| Software | |
|---|---|
| Configuration | USB Type-C or Downlink |
| Advanced Feature | Threshold Alarm, Change Alarm, Data Storage (1000 entries), Data Retrievability, Data Retransmission, Milesight D2D Controller, Milesight D2D Agent, IF-THEN Command |
| Physical Characteristics | |
|---|---|
| Power Supply | 1. DC 5-24 V by Power Connector 2. DC 5V/1A by Type-C Port |
| Power Consumption | < 0.5 W |
| Material & Color | PC+ABS, White |
| Weight | 28.9g |
| Ingress Protection | IP30 |
| Operating Temperature | -20°C ~ 60°C (-4°F~140°F) |
| Relative Humidity | 0% ~ 95% (non-condensing) |
| Dimensions | 70 × 45 × 13 mm (2.75 × 1.77 × 0.51 in) (Connectors Excluded) |
| Installation | Desktop, Wall Screw Mounting |
