Milesight Temperature Sensor - TS301 / TS302
Couldn't load pickup availability
The price shown is excluding VAT. If VAT is applicable, it will be calculated at checkout based on the shipment address.
Need help, call 01444 246 128

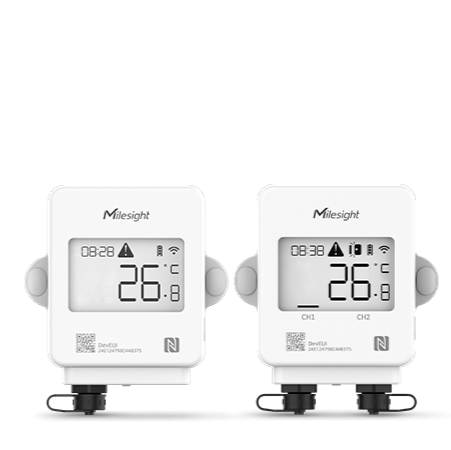

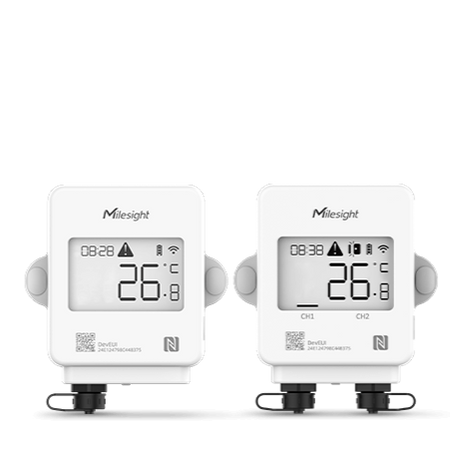

The Milesight TS301 / TS302 are advanced resistance temperature sensor with a visualised data display. It features extendable connecting lines and a diverse range of detecting probes, including A-class, B-class, and A-class food-grade temperature probes. Moreover, it provides the option for a magnetic contact switch sensor. TS301 / TS302 prioritises security and reliability, ensuring traceable data and effortless data exports for seamless integration.
TS301 / TS302 are designed for measuring a wide range of temperature in harsh environments and transmitting data using LoRaWAN® technology. With this low power consumption technology, The devices can maintain a long operational life with its embedded batteries.
TS301 / TS302 are widely used for temperature monitoring applications like food processing, cold chain storage of food
or medicine, etc.
Feature
- Optimised Readability with LCD Screen
- Up to 10,000 Sets of Historical Data Records
- Data Retrieval and Retransmission
- Efficient Data Export in PDF for Anti-Tampering
- Meet HACCP and 21 CFR Part 11B Requirements
- Certified for EN12830 Standard
- Ideal for Food Production, Pharmaceutical Storage and Cold Chain
- Rugged Protection with IP65 Rating
- LoRaWAN® Wireless Deployment with Average 3 Years Battery Life
Specifications
| Wireless Transmission | |
|---|---|
| Technology | LoRaWAN® |
| Antenna | Internal Antenna |
| Frequency | CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4 |
| Tx Power | 16dBm (868MHz)/22dBm (915MHz)/19dBm (470MHz) |
| Sensitivity | -137dBm @300bps |
| Mode | OTAA/ABP Class A |
| Sensor Connector | |
|---|---|

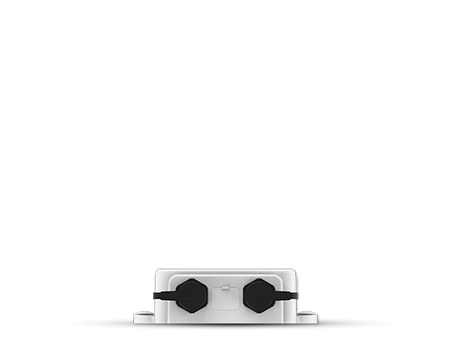

| Connector Type | 5-pin M12 A-Coded Male Connector |
| Connector Number1 | TS301: 1 × Connector for PT100 Sensor or Magnet Switch Sensor TS302: 2 × Connectors for two PT100 Sensors or PT100 Probe + Magnet Switch Sensor |
| PT100 Connection | 3-wire Connection |
| PT100 Resolution | 0.1 °C |
| Display | |
|---|---|
| Display | LCD Segment Code Screen |
| Viewing Direction | 12 O'clock |
| Others | |
|---|---|
| Button | 1 × Power Button (External) + 1 × Reset Button (Internal) |
| LED Indicator | 1 × Status Indicator (Internal) |
| USB | 1 × Type-C Port for Power Supply, Configuration and Debug |
| Software | |
|---|---|
| Power On/Off | NFC, USB, Power Button |
| Configuration | 1. Mobile App via NFC 2. PC software via USB Type-C port 3. Downlink |
| Data Logging | 10, 000 measurements and supports to export as CSV or PDF file |
| Advanced Features | Threshold Alarm, Change Alarm, Data Retrievability, Data Retransmission |
| Physical Characteristics | |
|---|---|
| Power Supply | 2 × 4000 mAh ER18505 Li-SOCl2 Batteries or Type-C USB (5V/1A) |
| Battery Life2 | TS30x + One or Two PT100 Sensors: Around 5 years |
| (30°C, 10 min interval) | TS302 + PT100 Sensor + Magnet Sensor: Around 5 years (10 triggers per day) TS30x + One Magnet Sensor: Over 10 years (10 triggers per day) |
| Operating Temperature | -30°C to +70°C |
| Relative Humidity | 0% to 95% (non-condensing) |
| Ingress Protection | IP65 |
| Weight | 175 g (TS301), 185 g (TS302) |
| Dimension | 109.35 × 75 × 29 mm (4.31 × 2.95 × 1.14 in) |
| Installation | Wall Screw Mounting, Magnetic Mounting (Opt.) |
| Approvals | |
|---|---|
| Regulatory | CE, FCC, EN12830 |
| Environmental | RoHS |
1TS302 does not support to connect both magnet switch sensors.
2Tested under laboratory conditions and for guideline purposes only.
