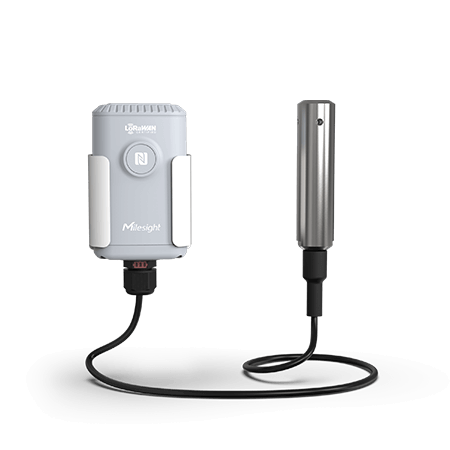

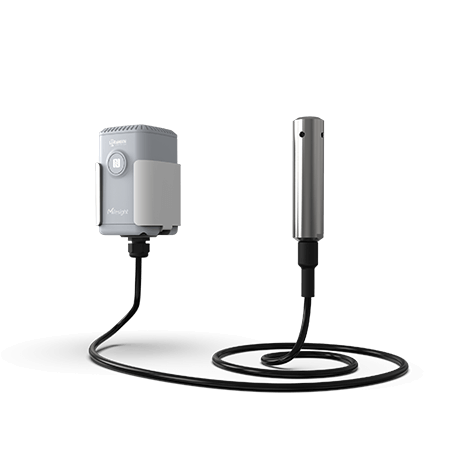

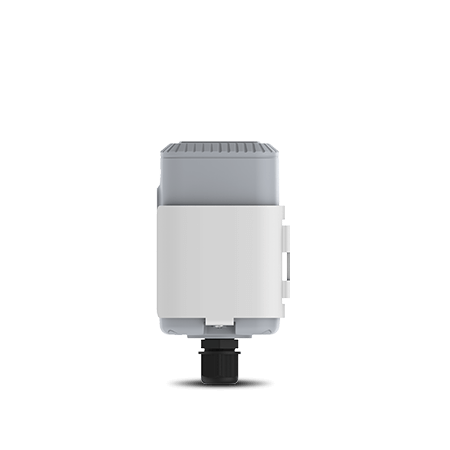

Milesight Smart Submersible Water Level Sensor - EM500-SWL
Regular price
£246.03
Estimated UK delivery 1 - 7 days
Couldn't load pickup availability
The price shown is excluding VAT. If VAT is applicable, it will be calculated at checkout based on the shipment address.
Need help, call 01444 246 128
The Milesight EM500-SWL is designed for measuring liquid level in harsh environments and transmitting data using LoRaWAN® technology. With this low power consumption technology, EM500-SWL can work up to 10 years with 19000 mAh battery.
EM500-SWL is widely used for applications like tank level monitoring, river level monitoring, etc.
Feature
- Not Affected by Foam, Wind, or Rain
- Customizable Measuring Range
- Customizable for Oil and Other Non-corrosive Media
- Impressive IP67 Rated Waterproof Performance
- 10 Years Long Battery Life
- LoRaWAN® Wireless Deployment
- Milesight IoT Cloud
- Easy Configuration via NFC
Specifications
| Wireless Transmission | |
|---|---|
| Technology | LoRaWAN® |
| Frequency | CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4 |
| Tx Power | 16dBm(868)/20dBm(915)/19dBm(470) |
| Sensitivity | -137dBm @300bps |
| Mode | OTAA/ABP Class A |
| Measurement | |
|---|---|
| Pressure Type | Gauge Pressure |
| Range | 0 ~ 3m/5m/10m (H2O) (Customizable up to 200 m and for other liquids) |
| Accuracy | ± 0.5% FS |
| Resolution | 0.01 m |
| Long-term Stability | ≤ ± 0.3% FS/year |
| Operation | |
|---|---|
| Power On & Off | NFC, Power Button (Internal) |
| Configuration | Mobile App(via NFC) or PC software(via USB Type-C) |
| Physical Characteristics | |
|---|---|
| Cable Length | At least 1-1.5m longer than measuring range |
| Power Supply | 19000 mAh Li-SOCL2 battery (ER34615) |
| Battery Life* | 10 years (10 min interval) |
| Operating Temperature | -30°C to +70°C (Transceiver)/-10°C to +70°C (Level Sensor) |
| Relative Humidity | 0% to 100% (non-condensing) |
| Ingress Protection | IP67 (Transceiver)/IP68(Level Sensor) |
| Dimension | Transceiver: 105.4 × 71 × 69.5 mm (4.1 × 2.8 × 2.7 in) Level Sensor: 140 × ф28 mm (5.5 × ф1.1 in) |
| Installation | Pole, wall or DIN Rail Mounting |
| Approvals | |
|---|---|
| Regulatory | CE, FCC, RoHS |
