Milesight Smart Scene Panel - WS136 / WS156
Regular price
£57.51
Estimated UK delivery 1 - 7 days
Couldn't load pickup availability
The price shown is excluding VAT. If VAT is applicable, it will be calculated at checkout based on the shipment address.
Need help, call 01444 246 128

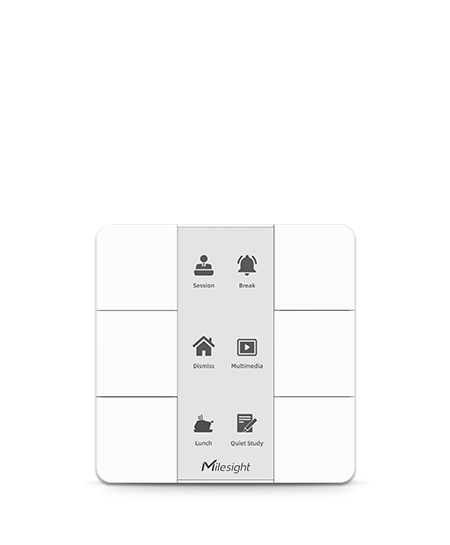

The Milesight WS156/WS136 Smart Scene Panels allow occupants to predefine 6 scenes with different surrounding ambiances which can be fast changed by pressing the button.
Efficiency meets customization as the WS156/WS136 brings unparalleled control to your environment. Whether it's fostering a focused work setting or enhancing collaboration spaces, this solution ensures seamless and rapid scene adjustments.
Feature
- Adapt to Multiple Scenarios
- Customize Display for Specific Needs
- Efficient One-to-Many Control
- Milesight D2D Communication
Specifications
| Wireless Transmission | |
|---|---|
| Technology | LoRaWAN®, Milesight D2D |
| Frequency | CN470/RU864/IN865/EU868/US915/AU915/KR920/AS923 |
| Tx Power | 16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz) |
| Sensitivity | -137dBm |
| Mode | OTAA/ABP Class A |
| Interface | |
|---|---|

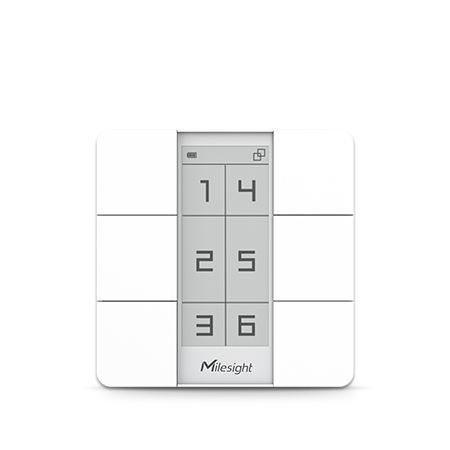

| Display | WS156: 2.9-Inch Black & White E-Ink Screen, 128 × 296 Pixels WS136: Not Support |
| Scene Button | 6 Buttons |
| Button Light | Blue |
| Others | 1 × Reset Button (Internal) + 1 × LED Indicator |
| Software | |
|---|---|
| Configuration | NFC |
| Advanced Features | Milesight D2D Controller, Screen Display Customization |
| Physical Characteristics | |
|---|---|
| Power Supply | 2 × 590 mAh CR2450 Lithium Coin Cell Batteries |
| Battery Life* | Over 3 years (1080 min interval + 20 presses per day) |
| Ingress Protection | IP30 |
| Color & Material | White, PC + ABS (Flame-retardant) |
| Operating Temperature | -10°C to +50°C (E-Ink Screen: 0°C - 50°C) |
| Relative Humidity | ≤ 90% (Non-condensing) |
| Dimensions | 86 × 86 × 14 mm (3.39 × 3.39 × 0.55 in) |

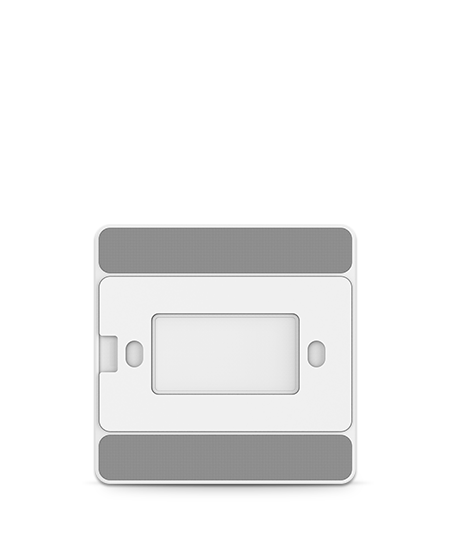

| Installation | Desktop, 3M Tape Mounting, 86 Box Mounting |
