Milesight EM300-DI Pulse Counter
Milesight EM300-DI Pulse Counter
Milesight

Milesight Pulse Counter - EM300-DI

In stock
SKU: EM300-DI-868EU
£53.26
Title
Estimated UK delivery 1 - 7 days

The price shown is excluding VAT. If VAT is applicable, it will be calculated at checkout based on the shipment address.

Need help, call 01444 246 128

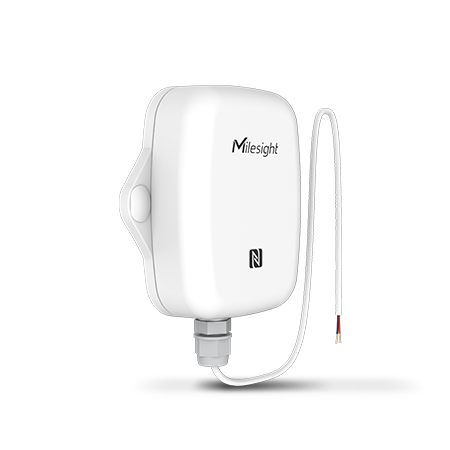

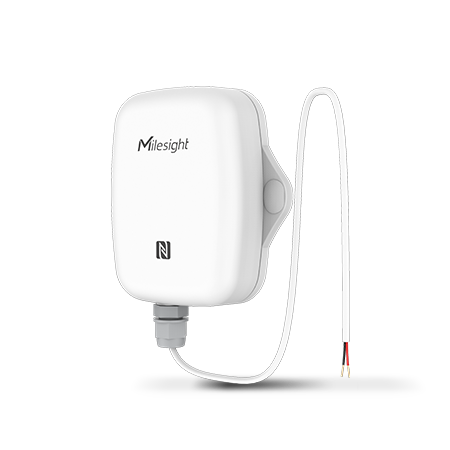

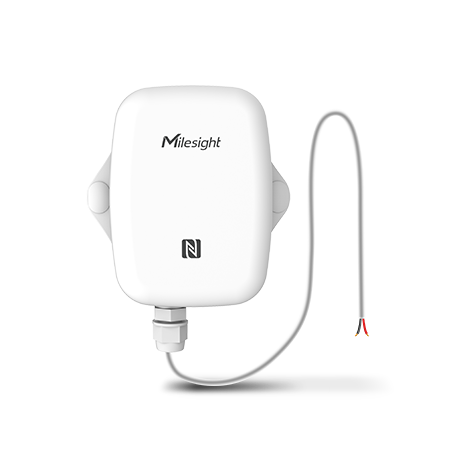

The Milesight EM300-DI LoRaWAN® Pulse Counter is used to remotely read metering data from water meters. It turns existing traditional water meters into smart meters via LoRaWAN® network which further enables easier management and increases the efficiency of water use

Feature

  • Superior Accuracy
  • Embedded with 2 Sensors
  • Data Storage, Retransmission and Retrievability
  • Versatile Applications
  • IP67 Waterproof
  • LoRaWAN® Based
  • Ultra-Low Power Consumption

Specifications

Wireless Transmission
Technology LoRaWAN®
Frequency CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4
Tx Power 16dBm(868)/20dBm(915)/19dBm(470)
Sensitivity -137dBm @300bps
Mode OTAA/ABP Class A



Measurement
GPIO
Port 1 × GPIO Interface, Dry Contact
Work Mode Pulse Counter, Digital Input
Cable Length 1 m (Customizable)
Applicable Meters Reed switches meters or any other passive pulse meters
Temperature
Range -30°C to + 70°C
Accuracy 0°C to + 70°C (+/- 0.3°C), -30°C to 0°C (+/- 0.6°C)
Resolution 0.1°C
Humidity
Range 0% to 100% RH
Accuracy 10% to 90% RH (+/- 3%), below 10% and above 90% RH (+/- 5%)
Resolution 0.5% RH


Operation
Power On & Off NFC, Power Button (Internal)
Configuration NFC Configuration via Mobile App


Physical Characteristics
Power Supply 1 × 4000 mAh ER18505 Li-SOCL2 Battery (extendable to 2 batteries)
Battery Life* 5 years (10 min interval )
Operating Temperature -30°C to +70°C
Relative Humidity ≤95% (non-condensing)
Material & Color ABS + PC, White
Ingress Protection IP67
Dimension 105.6 × 85.2 × 27 mm (4.15 × 3.35 × 1.06 in)
Installation Screw Mounting
