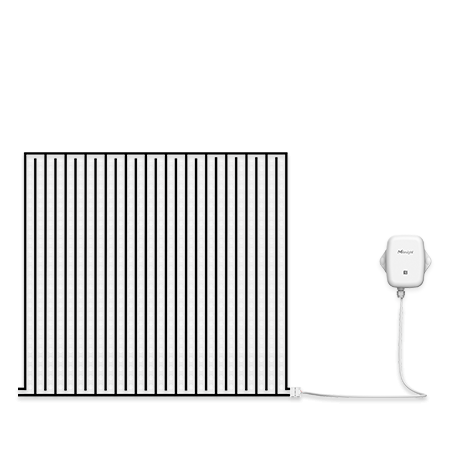

The Milesight EM300-MLD is an innovative leak sensor that incorporates a flexible printed membrane. This design enables precise detection and customised coverage in a compact form factor, making it suitable for various applications. With a single embedded battery, EM300-MLD offers a long operational life of up to 10 years, extendable to two batteries if desired. Its high IP67 protection and durable construction ensure reliability and
adaptability in harsh environments.
With easy configuration and wireless detection, the EM300-MLD facilitates simple deployment and connectivity.
Feature
- Sensitive Leak Detection with Membrane
- IP67 Waterproof Rating for Durability
- Data Storage and Retransmission
- LoRaWAN® Connectivity for Reliable Communication
- Milesight D2D Communication
- Prolonged Performance: 10-Year Battery Life
Specifications
| Wireless Transmission | |
|---|---|
| Technology | LoRaWAN®, Milesight D2D |
| Frequency | CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4 |
| Tx Power | 16dBm(868 MHz)/20dBm(915 MHz)/19dBm(470 MHz) |
| Sensitivity | -137dBm @300bps |
| Mode | OTAA/ABP Class A |
| Leakage Detection | |
|---|---|
| Liquid Type | Conductive Liquid |
| Trigger Media | 400 × 400 × 0.25 mm Printed Leakage-Detecting Film (The size can be customizable) |
| Trigger Condition | When the Sensing Film Contact Conductive Liquid |
| Operation | |
|---|---|
| Power On & Off | NFC, Power Button (Internal) |
| Configuration | NFC Configuration via Mobile App |
| Advanced Feature | Milesight D2D Controller, Data Storage, Data Retransmission |
| Physical Characteristics | |
|---|---|
| Cable Length | 1000 mm (Customizable) |
| Power Supply | 1 × 4000 mAh ER18505 Li-SOCL2 Battery (Extendable to 2 Batteries) |
| Battery Life* | Up to 10 Years (One hour Leakage per Day, 25°C) |
| Operating Temperature | -30°C~70°C |
| Relative Humidity | 0% to 95% (non-condensing) |
| Color & Material | White Flame, ABS + PC (Retardant) |
| Ingress Protection | IP67 |
| Dimension | 105.6 × 85.3 × 27 mm (4.16 × 3.36 × 1.06 in) |
| Installation | Wall Screw Mounting, 3M Tape Mounting, Cable-Tie Mounting |
* Tested under laboratory conditions and for guideline purposes only.
