Milesight Magnetic Contact Switch - EM300-MCS
Couldn't load pickup availability
The price shown is excluding VAT. If VAT is applicable, it will be calculated at checkout based on the shipment address.
Need help, call 01444 246 128

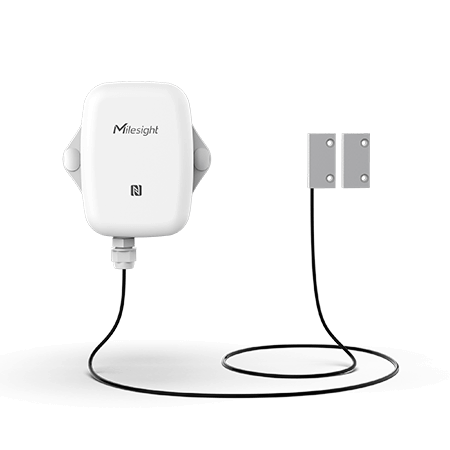

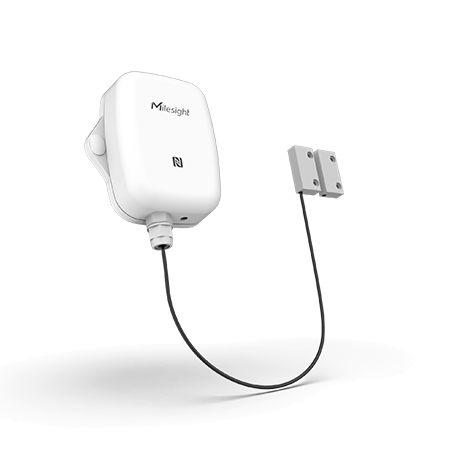

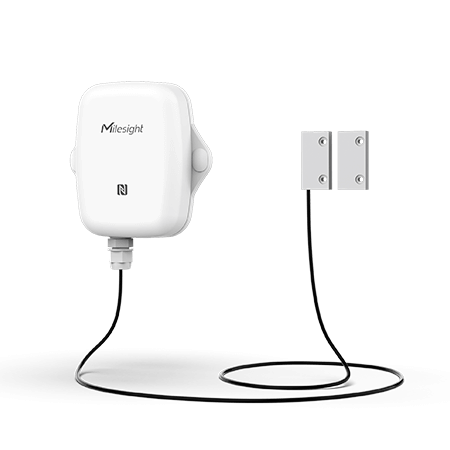

The Milesight EM300-MCS is a compact magnet switch sensor for detecting open/close status of objects (such as doors or windows) and transmitting alarm using LoRaWAN® technology. With this low power consumption technology, EM300-MCS can work up to 5
years with 4000 mAh battery. Combining with Milesight LoRaWAN® gateway and Milesight IoT Cloud solution, users can manage all sensor data and remotely and visually and receive
alarms via mobile App.
EM300-MCS also integrates temperature and humidity sensors, which has a great use for applications such as home and office automation, factories monitoring, etc.
Feature
- IP67 Rated and UV Resistance
- Detect Temperature, Humidity and Door/Window Status
- High Sensitivity with 20 to 30 mm Open/Close Sensing Distance
- Customized Alarm Reporting Interval/Times
- Up to 10 Years Battery Life
- 3-in-1 Sensor - Temperature / Humidity / Contact switch
Specifications
| Wireless Transmission | |
|---|---|
| Technology | LoRaWAN® |
| Frequency | CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923 |
| Tx Power | 16dBm(868)/20dBm(915)/19dBm(470) |
| Sensitivity | -137dBm @300bps |
| Mode | OTAA/ABP Class A |
| Measurement | |
|---|---|
| Door Magnet | |
| Detection Distance | 20-30 mm |
| Cable Length | 1.5 m |
| Temperature | |
| Range | -30°C to + 70°C |
| Accuracy | 0°C to + 70°C (+/- 0.3°C), -30°C to 0°C (+/- 0.6°C) |
| Resolution | 0.1°C |
| Humidity | |
| Range | 0% to 100% RH |
| Accuracy | 10% to 90% RH (+/- 3%), below 10% and above 90% RH (+/- 5%) |
| Resolution | 0.5% RH |
| Operation | |
|---|---|
| Power On & Off | NFC, Power Button (Internal) |
| Configuration | NFC Configuration via Mobile App |
| Physical Characteristics | |
|---|---|
| Power Supply | 1 × 4000 mAh ER18505 Li-SOCL2 battery (extendable to 2 batteries) |
| Battery Life* | 10 years (10 min interval + 48 triggers per day) |
| Operating Temperature | -30°C to +70°C |
| Relative Humidity | 0% to 100% (non-condensing) |
| Ingress Protection | IP67 |
| Dimension | Transceiver: 105.6 × 85.3 × 27 mm (4.16 × 3.36 × 1.06 in) Magnet: 32 × 15 × 8 mm (1.25 × 0.59 × 0.31 in) |
| Installation | Wall Mounting |
| Approvals | |
|---|---|
| Regulatory | CE, FCC, RoHS |
