Milesight Light & PIR Sensor - WS202
Regular price
£39.09
Estimated UK delivery 1 - 7 days
Couldn't load pickup availability
The price shown is excluding VAT. If VAT is applicable, it will be calculated at checkout based on the shipment address.
Need help, call 01444 246 128

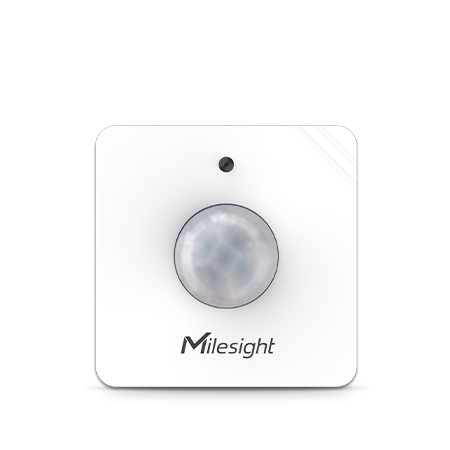

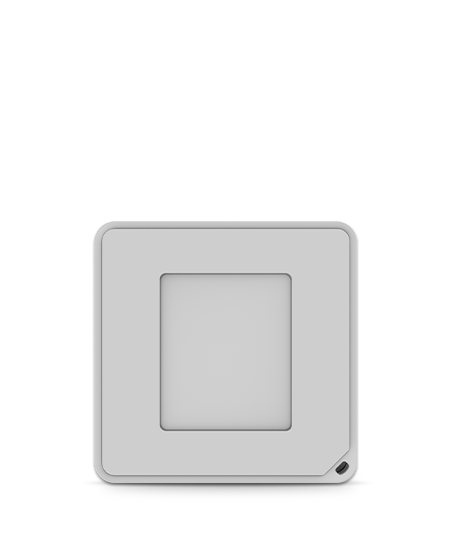

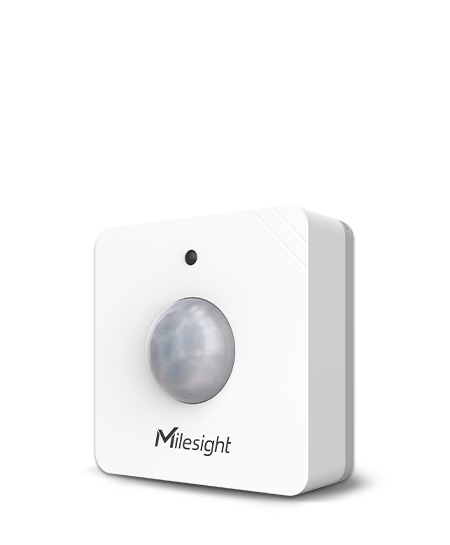

The Milesight PIR & Light Sensor WS202 provides PIR motion detection and brightness measurement, providing reliable supports for automatic lighting control.
WS202 utilizes a powerful combination of PIR detection and brightness measurement, allowing it to determine an indoor area's occupancy or vacancy status effortlessly.
Feature
- Experience Precise PIR Presence Detection
- Accurate Brightness Measurement
- Seamless LoRaWAN® Wireless Transmission
- Effortless NFC Configuration for Easy Setup
Specifications
| Wireless Transmission | |
|---|---|
| Technology | LoRaWAN®, Milesight D2D |
| Frequency | CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923 |
| Tx Power | 16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz) |
| Sensitivity | -137 dBm @300bps |
| Mode | OTAA/ABP Class A |
| Measurement | |
|---|---|
| PIR | |
| Detection Area | 120 ° Horizontal, 100 ° Vertical |
| Detection Distance | Maximum 8 m |
| Light | |
| Status | Bright/Dark (Determine 1-60000 lux as Bright or Dark according to custom threshold) |
| Software | |
|---|---|
| Configuration | NFC |
| Advanced Feature | Milesight D2D Controller |
| Physical Characteristics | |
|---|---|
| Power Supply | 1 × 1650 mAh ER14335 Li-SOCl2 Battery |
| Battery Life* | Around 4 years (30 min interval + 30 triggers per day) |
| Operating Temperature | -20°C to +60°C |
| Relative Humidity | ≤90% (non-condensing) |
| Ingress Protection | IP30 |
| Dimension | 50 × 50 × 23.8 mm (1.97 × 1.97 × 0.94 in) |
| Material | Anti-flaming Polycarbonate |
| Color | White |
| Installation | On the flat surfaces with screws or 3M tapes |
| Approvals | |
|---|---|
| Regulatory | CE, FCC, RoHS |
