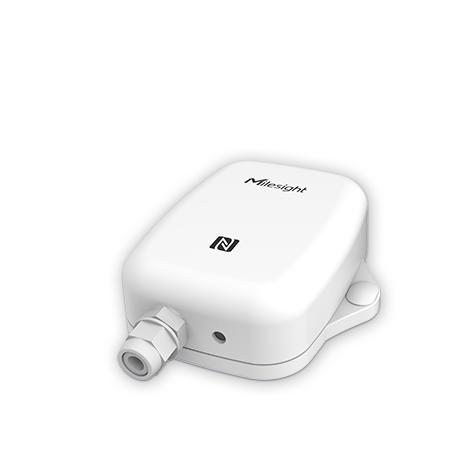

Milesight Leak Detection Sensor - EM300-SLD / EM300-ZLD
Regular price
£58.94
Estimated UK delivery 1 - 7 days
Couldn't load pickup availability
The price shown is excluding VAT. If VAT is applicable, it will be calculated at checkout based on the shipment address.
Need help, call 01444 246 128
The Milesight M300-SLD/ZLD is suitable for detecting the presence of water and remotely alerting users to potential water leak, water spillage, or floor wetness. It supports water or other conductive liquids leak detection when liquid levels reach 5mm.
Feature
- IP67 Rated and UV Resistance

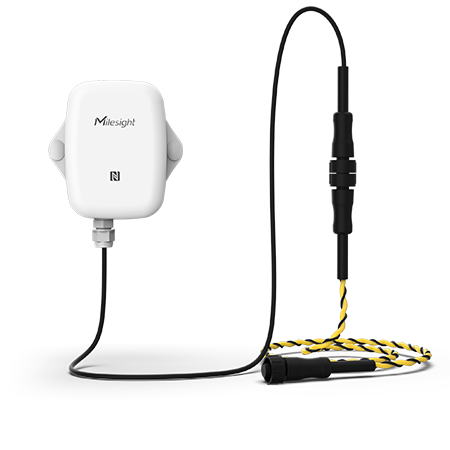

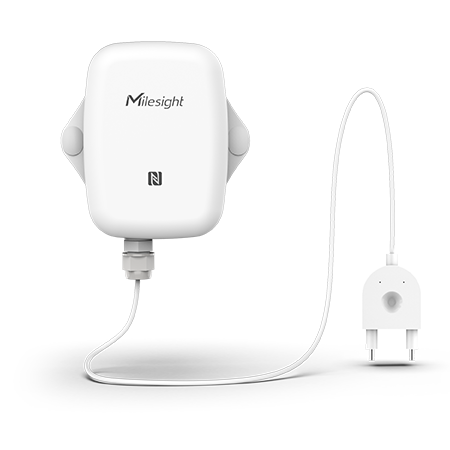

- Probe & Rope Type Available
- Conductive Liquids Leak Detection
- Embedded Temperature & Humidity Sensors
- Customized Alarm Reporting Interval/Times
- Up to 10 Years Battery Life
Specifications
Wireless Transmission | |
---|---|
Technology | LoRaWAN® |
Frequency | CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923 |
Tx Power | 16dBm(868)/20dBm(915)/19dBm(470) |
Sensitivity | -137dBm @300bps |
Mode | OTAA/ABP Class A |
Measurement | |
---|---|
Leakage Detection | |
Trigger Condition | When liquid level reaches 5mm |
Detection Cable | EM300-SLD: 1.5m/ EM300-ZLD: 3m (Customizable) |
Temperature | |
Range | -30°C to + 70°C |
Accuracy | 0°C to + 70°C (+/- 0.3°C), -30°C to 0°C (+/- 0.6°C) |
Resolution | 0.1°C |
Humidity | |
Range | 0% to 100% RH |
Accuracy | 10% to 90% RH (+/- 3%), below 10% and above 90% RH (+/- 5%) |
Resolution | 0.5% RH |
Operation | |
---|---|
Power On & Off | NFC, Power Button (Internal) |
Configuration | NFC Configuration via Mobile App |
Physical Characteristics | |
---|---|
Power Supply | 1 × 4000 mAh ER18505 Li-SOCL2 battery (extendable to 2 batteries) |
Battery Life* | 10 years (10 min interval + 24 triggers per day) |
Operating Temperature | -30°C to +70°C |
Relative Humidity | 0% to 100% (non-condensing) |
Ingress Protection | IP67 |
Dimension | 105.6 × 85.3 × 27 mm (4.16 × 3.36 × 1.06 in) |
Installation | Wall Mounting |
Approvals | |
---|---|
Regulatory | CE, FCC, RoHS |
