Milesight Insertion Temperature Sensor - TS101

In stock
SKU: TS101-868EU-1
£78.79
Title
Estimated UK delivery 1 - 7 days

The price shown is excluding VAT. If VAT is applicable, it will be calculated at checkout based on the shipment address.

Need help, call 01444 246 128

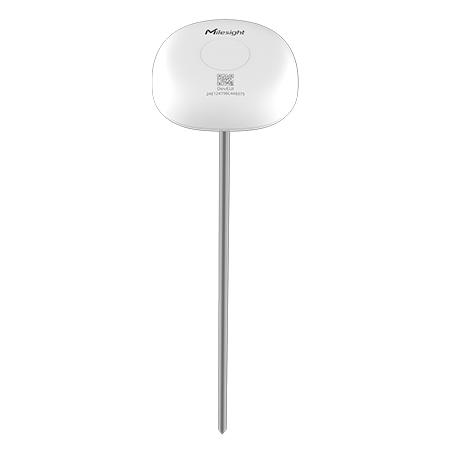

The Milesight TS101, an innovative all-in-one insertion temperature sensor with an integrated transmitter, offers a wide temperature measuring range, making it versatile for various applications.

TS101 features a professional-grade temperature monitoring design, IP67 ingress protection, and rated IK10 for strike resistance, making it ideal for various environmental conditions.

With a battery life of up to 10 years, it features wireless deployment for easy plug-and-play use across different internal temperature monitoring applications.

Precise and Accurate Temperature Monitoring

Milesight TS101 is an all-in-one insertion temperature sensor with an integrated transmitter. With an advanced measuring unit that provides a wide temperature measuring range, TS101 provides high precision and reliable consistency.

Feature

  • Precise and Accurate: ±0.5 °C
  • Safe and Hygienic: Food-Grade Enclosure and Probe
  • Exceptionally Durable: IP67 Waterproof Rating and Phosphine Corrosion Resistant
  • Built to Last: IK10 Rated Transceiver for Impact Resistance
  • Data Integrity and Easy Management
  • Long-Lasting and Low-Maintenance: 10 Years Battery Life

Specifications

Wireless Transmission
Technology LoRaWAN®
Antenna Internal Antenna
Frequency CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4
Tx Power 16dBm (868MHz)/22dBm (915MHz)/19dBm (470MHz)
Sensitivity -137dBm @300bps
Mode OTAA/ABP Class A


Measurement
Detecting Range -30°C ~ +70°C
Accuracy ± 0.5°C
Resolution 0.1°C



Software
Power On & Off Mobile App via NFC or Power Button (Internal)
Configuration NFC Configuration via Mobile App
Advanced Feature Data Storage (1200 entries), Data Retransmission, Data Retrievability, Abrupt Temperature Change Alarm
Physical Characteristics
Power Supply 1 × 4000 mAh ER18505 Li-SOCl2 Replaceable Battery
Battery Life* Up to 10 Years (SF7, EU868 & US915)
(1 Hour Report Interval, 25°C) Around 4.8 Years (SF10, EU868 )
Around 5.5 Years (SF10, US915)
Operating Temperature -30°C ~ +70°C
Relative Humidity 0 ~ 95% (Non-condensing)
Housing & Color Transceiver: ABS+PC(Food-Grade, Phosphine Corrosion resistant), White
Sensor Probe: 316 Stainless Steel (Food-Grade, Phosphine Corrosion Resistant) , Silver Grey
Ingress Protection IP67
Impact Protection IK10 (Transceiver)
Dimension Transceiver: Ф 92 × 92 × 26 mm (Ф 3.62 × 3.62 × 1.02 in)
Sensor Probe: Ф 7 × 400 mm (Ф 0.28 × 15.75 in)
Installation Insert Installation



Approvals
Regulatory CE, FCC
Environmental RoHS
