Milesight Industrial Temperature Sensor - EM500-PT100
Regular price
£128.39
Estimated UK delivery 1 - 7 days
Couldn't load pickup availability
The price shown is excluding VAT. If VAT is applicable, it will be calculated at checkout based on the shipment address.
Need help, call 01444 246 128

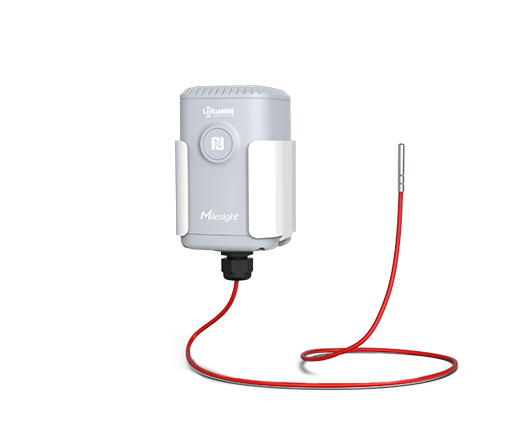

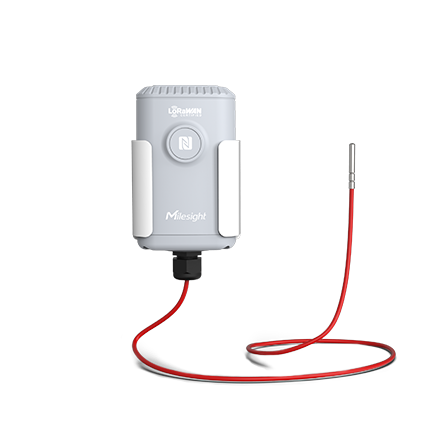

The Milesight EM500-PT100 resistance temperature sensor is designed for measuring wide range of temperature in harsh environments and transmitting data using LoRaWAN® technology. With this low power consumption technology, EM500-PT100 can work up to 10
years with 19000 mAh battery.
EM500-PT100 is widely used for temperature monitoring applications like industrial machines, ovens, pipes, etc.
Feature
- Stable and Precise Temperature Measurement
- LoRaWAN® Wireless Deployment
- Impressive Resistance
- 10 Years Long Battery Life
- Milesight IoT Cloud
- NFC Configuration
Specifications
| Wireless Transmission | |
|---|---|
| Technology | LoRaWAN® |
| Frequency | CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923 |
| Tx Power | 16dBm(868)/20dBm(915)/19dBm(470) |
| Sensitivity | -137dBm @300bps |
| Mode | OTAA/ABP Class A |
| Measurement | |
|---|---|
| Connection Type | 3-wire connection |
| Range | T050: -200 °C to +50 °C T200: -50 °C to +200 °C T500: -50 °C to +500 °C T800: -50 °C to +800 °C (Customizable from -200 °C to +800 °C) |
| Accuracy | ±0.5°C |
| Resolution | 0.1°C |
| Operation | |
|---|---|
| Power On & Off | NFC, power button (Internal) |
| Configuration | Mobile App(via NFC) or PC software(via USB Type-C) |
| Physical Characteristics | |
|---|---|
| Cable Length | 1.5 m (Customizable) |
| Probe Type | Straight tube (Customizable) |
| Power Supply | 19000 mAh Li-SOCL2 battery (ER34615) |
| Battery Life* | 10 years (10 min interval) |
| Operating Temperature | -30°C to +70°C |
| Relative Humidity | 0% to 100% (non-condensing) |
| Ingress Protection | Transceiver: IP67, Sensor: differ based on temperature ranges |
| Dimension | 105.4 × 71 × 69.5 mm (4.1 × 2.8 × 2.7 in) |
| Installation | Pole, wall or DIN Rail Mounting |
| Approvals | |
|---|---|
| Regulatory | CE, FCC, RoHS |
