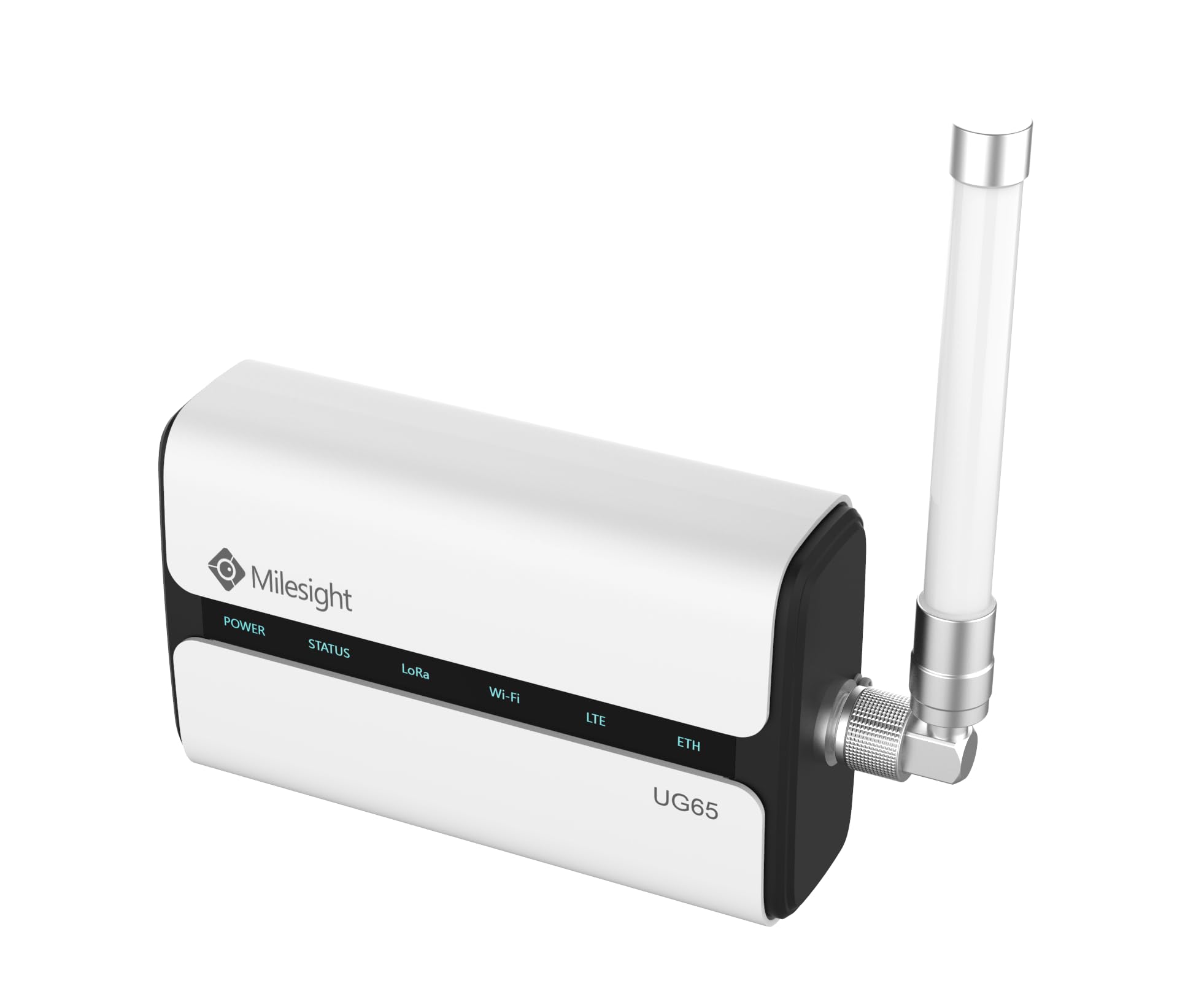

Milesight Indoor LoRaWAN® Gateway - UG65
Regular price
£309.73
Estimated UK delivery 1 - 7 days
Couldn't load pickup availability
The price shown is excluding VAT. If VAT is applicable, it will be calculated at checkout based on the shipment address.
Need help, call 01444 246 128
Milesight Indoor LoRaWAN® Gateway UG65 is a PoE based high-performance indoor LoRaWAN® gateway powered by NXP quad-core processor and SX1302 chip, delivering stable, scalable, and seamlessly integrated connectivity for demanding IoT deployments such as smart buildings.
Hardware Specifications
| Hardware System | |
|---|---|
| CPU | Quad-core 1.5 GHz, 64-bit ARM Cortex-A53 |
| Memory | 512 MB DDR4 RAM |
| Flash | 8 GB eMMC |
| LoRaWAN® | |
| Antenna | 1 × 50 Ω N-Female External Connector |
| Channel | 8 (Half/Full-duplex) |
| Frequency Band | CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4 |
| Sensitivity | -140dBm Sensitivity @292bps |
| Tx Power | 27dBm Max |
| Protocol | V1.0 Class A/Class B/Class C and V1.0.2 Class A/Class B/Class C |
| Ethernet Interface | |
| Port | 1 × RJ45 WAN Port (PoE PD supported) |
| Physical Layer | 10/100/1000 Base-T (IEEE 802.3) |
| Data Rate | 10/100/1000 Mbps (Auto-Sensing) |
| Interface | Auto MDI/MDIX |
| Mode | Full or Half Duplex (Auto-Sensing) |
| Ethernet Isolation | 1.5 kV RMS |
| Wi-Fi Interface | |
| Antenna | Internal Antenna |
| Standards | IEEE 802.11 b/g/n, 2.4GHz |
| Tx Power | 802.11b: 18 dBm +/-2.0 dBm (11 Mbps) 802.11g: 15 dBm +/-2.0 dBm (6 Mbps) 802.11g: 15 dBm +/-2.0 dBm (54 Mbps) 802.11n@2.4 GHz: 14 dBm +/-2.0 dBm (MCS0_HT20) 802.11n@2.4 GHz: 14 dBm +/-2.0 dBm (MCS7_HT20) 802.11n@2.4 GHz: 13 dBm +/-2.0 dBm (MCS0_HT40) 802.11n@2.4 GHz: 13 dBm +/-2.0 dBm (MCS7_HT40) |
| Cellular Interface (Optional) | |
| Network | 4G LTE |
| Tx Power | Class 3 (23 dBm ±2 dB) |
| SIM Slot | 1 (mini SIM-2FF) |
| Others | |
| Reset Button | 1 × RST |
| USB | 1 × USB Type-C for Power Supply and Console |
| LED Indicators | 1 × POWER, 1 × STATUS, 1 × LoRa, 1 × Wi-Fi, 1 × LTE, 1 × ETH |
| Power Connector | 1 × DC Male Jack Connector (2.1 x 5.5 mm) |
| Built-in | Watchdog, RTC, Timer |
| Power Supply and Consumption | |
| Power Input | 1. DC 9-24 V by Power Connector 2. 802.3 af PoE 3. 5V/1A by USB Type-C Port |
| Power Consumption | Typical 2.9 W, Max 4.2 W |
| Physical Characteristics | |
| Ingress Protection | IP65 |
| Material & Color | PC+ABS (UL94 V0), White & Black |
| Weight | 548g |
| Dimensions | 180 x 110 x 55.5 mm (7.09 x 4.33 x 2.19 in) |
| Installation | Desktop, Wall or Pole Mounting |
| Environmental | |
| Operating Temperature | -40°C to +70°C (-40°F to +158°F) Reduced Cellular Performance Above 60°C |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Relative Humidity | 0% to 95% (non-condensing) at 25°C/77°F |
| Approvals | |
| Regulatory | CE, CE(RED), FCC, IC, Telec, JATE, RCM |
| Environmental | RoHS |
Software Specifications
| LoRaWAN® | |
|---|---|
| Supported Devices | Around 2000 Class A/B/C Devices (10 min uplink interval) |
| Protocol | V1.0 Class A/Class B/Class C and V1.0.2 Class A/Class B/Class C |
| Packet Forwarder | |
| Noise Analyzer | Scan the noise of the frequencies for channel selection |
| Packet Filter | Add whitelist or blacklist to filter the packets |
| Data Retransmission1 | Re-transmit the data packets after network recovery |
| Embedded Network Server | |
| Decode and Encode | Inbuilt Milesight devices codec library, support custom codec setup |
| Gateway Fleet | Work as the network server of other Milesight blind-filling gateways |
| Multicast | Support multicast downlink control |
| FUOTA | Upgrade FUOTA supported end devices |
| Integration | MQTT(s), HTTP(s), BACnet/IP, BACnet/SC, Modbus TCP, ModbusRTUover TCP |
| Network | |
| Network Protocols | PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS, HTTP, HTTPS, DNS, ARP, SNTP, Telnet, SSH, etc. |
| VPN Tunnel | OpenVPN/IPsec/PPTP/L2TP/GRE/DMVPN/WireGuard |
| Firewalls | Access Control, DMZ, Port Mapping (DNAT), MAC Binding, Filtering (IP&Domain) |
| DDNS | Supported >16 service providers, others can be configured manually |
| Multilevel Authority | Multiple Levels of User Authority |
| Reliability | WAN Failover |
| Diagnostics Tools | Ping, Traceroute, Tcpdump, QXDM, Log Server |
| Wi-Fi Interface | |
| Standards | IEEE 802.11 b/g/n, 2.4GHz |
| Mode | AP or Client mode |
| Security | AP: WPA-PSK/WPA2-PSK authentication, WEP/TKIP/AES encryption Client: WPA-PSK/WPA2-PSK/WPA-Enterprise/WPA2-Enterprise authentication, WEP/TKIP/AES encryption |
| Management | |
| Configuration | Web, CLI (SSH/Telnet), On-demand dial up, SNMP, HTTP API, MQTT API, Milesight Development Platform, DeviceHub |
| Update | Web, Milesight Development Platform, DeviceHub |
| Remote Management | Milesight Development Platform, DeviceHub |
| Event Alarm | Power On, Network Up/Down, VPN Up/Down, etc. |
| Others | |
| App | Python SDK, Node-RED |
