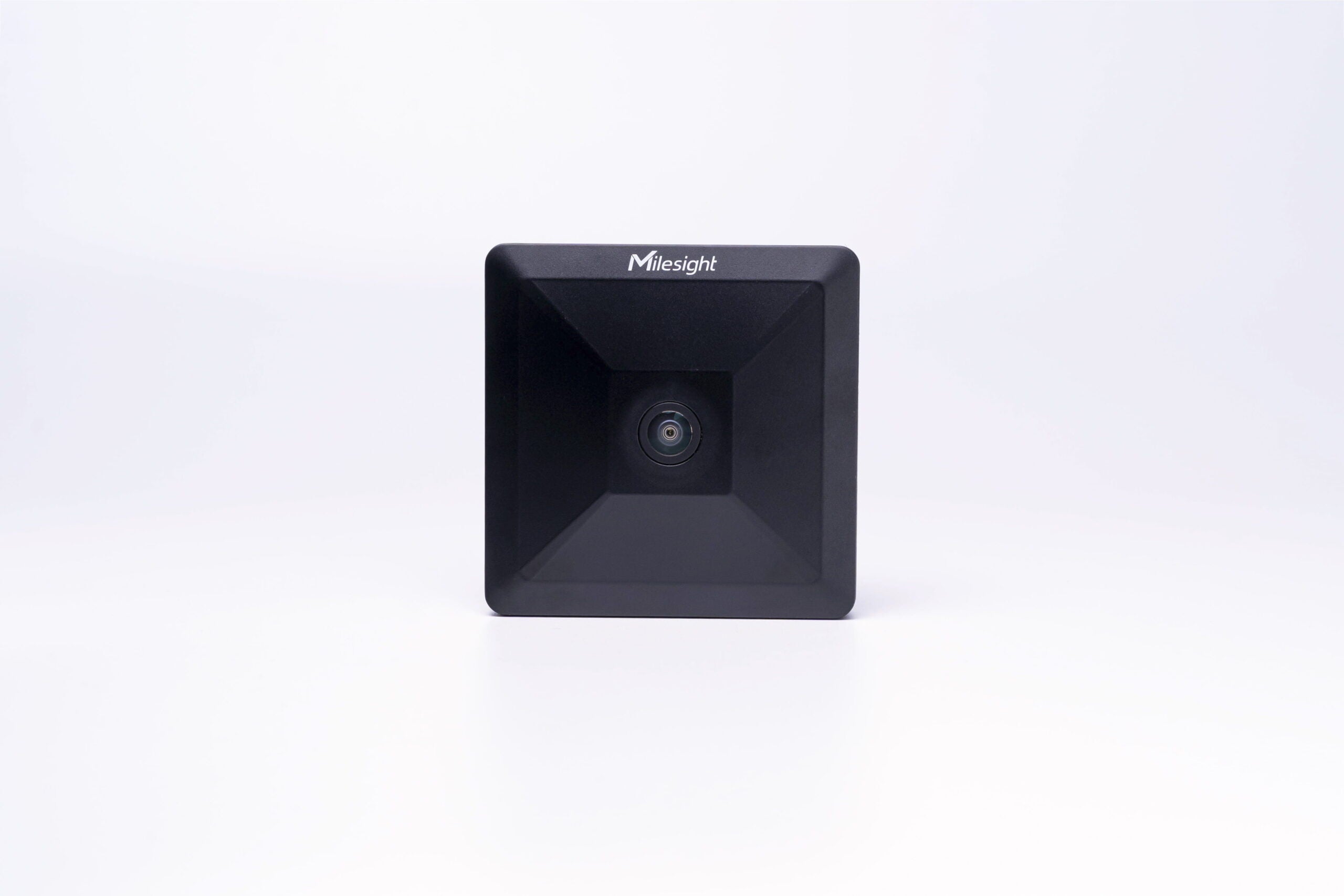

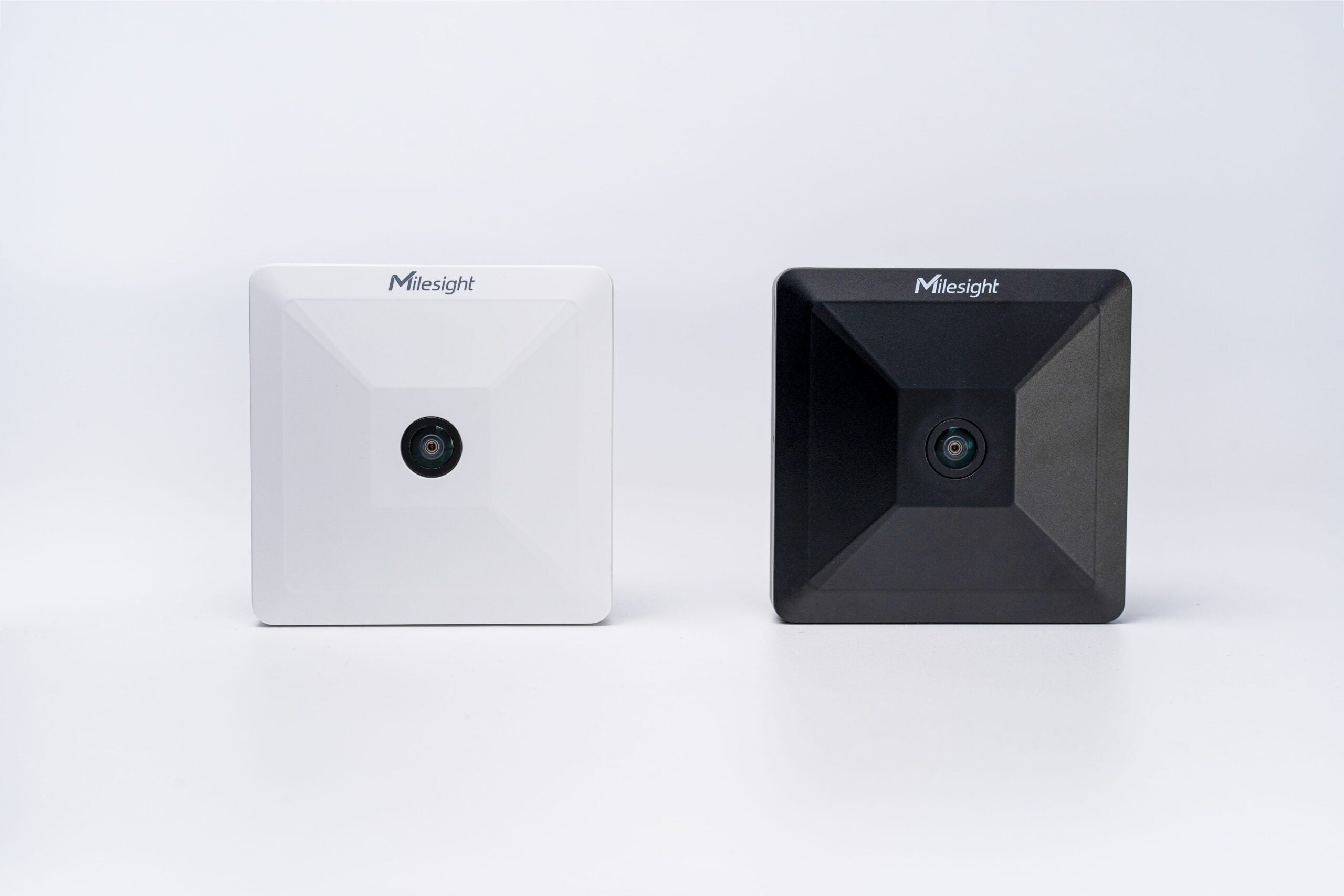

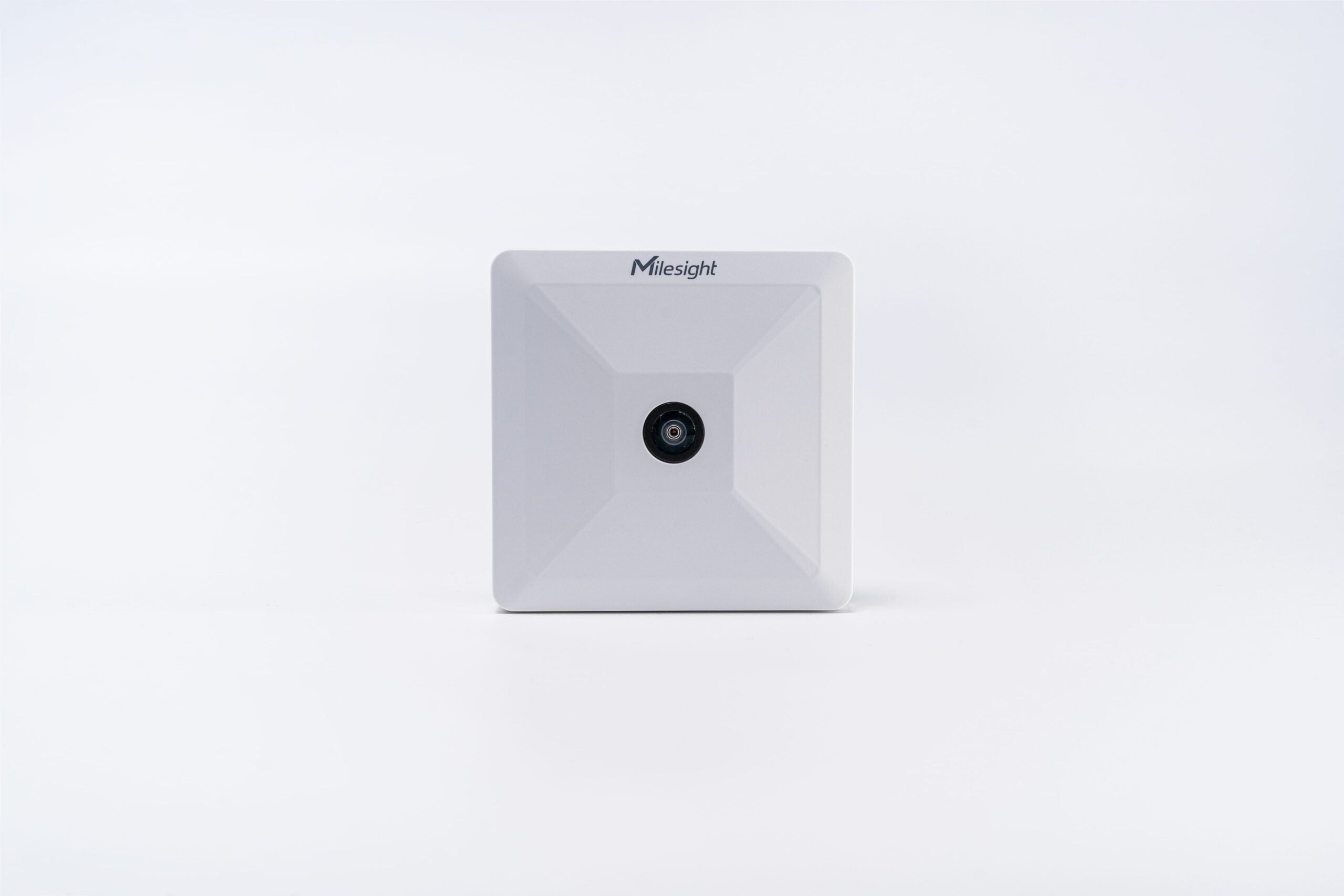

Milesight AI Workplace Occupancy Sensor - VS121
Regular price
£254.89
Estimated UK delivery 1 - 7 days
Couldn't load pickup availability
The price shown is excluding VAT. If VAT is applicable, it will be calculated at checkout based on the shipment address.
Need help, call 01444 246 128
The Milesight AI Workplace Occupancy Sensor - VS121, an AI workplace occupancy sensor with LoRaWAN® delivers GDPR-compliant detection of the presence of people across offices to meeting rooms, optimizing space utilization, and improving building efficiency.
Feature
- Low Power Consumption
- Easy and Wireless Deployment
- Long Distance Transmission
Specifications
| People Counting | |
|---|---|
| Field of View | 190 ° Horizontal, 112 ° Vertical |
| Installation Height | 2.3m to 4m |
| Advanced Function | |
| Regional People Counting & Dwell Time Detection | Upto 16 areas (up to 10 sides for each area) for regional people counting and dwell time detection |
| Bi-DirectionalPeople Counting | Support |
| U-turnsFiltering | Filter redundant counting of people wandering in the bi-directional people counting areas |
| People Flow Analysis | Calculate the traffic of different directions at most 4 edges |
| Privacy Mask | Up to 8 privacy masks to cover certain areas |
| Data Retransmission | Support 3000 data retransmission packets |
| LoRaWAN® Transmission | |
| Protocol | LoRaWAN®, Milesight D2D |
| Frequency | CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4 |
| Tx Power | 16 dBm (868 MHz)/20 dBm (915 MHz)/19 dBm (470 MHz) |
| Sensitivity | -137 dBm @300bps |
| Mode | OTAA/ABP Class C |
| Ethernet Transmission | |
| Ethernet Port | - |
| Network Protocol | - |
| Other Interfaces | |
| Wi-Fi | IEEE 802.11 b/g/n, 2.4GHz (AP Mode for configuration) |
| DI/DO | - |
| Serial Interface | - |
| Button | 1 × Reset Button,1 × Wi-Fi Button |
| LED Indicators | 1 × Wi-Fi |
| Power Input | - |
| Physical Characteristics | |
| Power Supply | 5VDC / 2A by Type-C Port |
| Power Consumption | 3.5W |
| Operating Temperature | -5°C ~ +55°C |
| Storage Temperature | -20°C ~ +60°C |
| Relative Humidity | 0 ~ 95% (Non-condensing) |
| Ingress Protection | IP30 |
| Housing | PC + Cast Aluminium |
| Color&Weight | White/Black (Optional), 126.9g |
| Dimension | 85 × 85 × 20 mm (3.35 × 3.35 × 0.79 in) |
| Installation | Ceiling Mounting |
| Approvals | |
| Regulatory | CE, FCC, Telec, GDPR |
| Environmental | RoHS |
