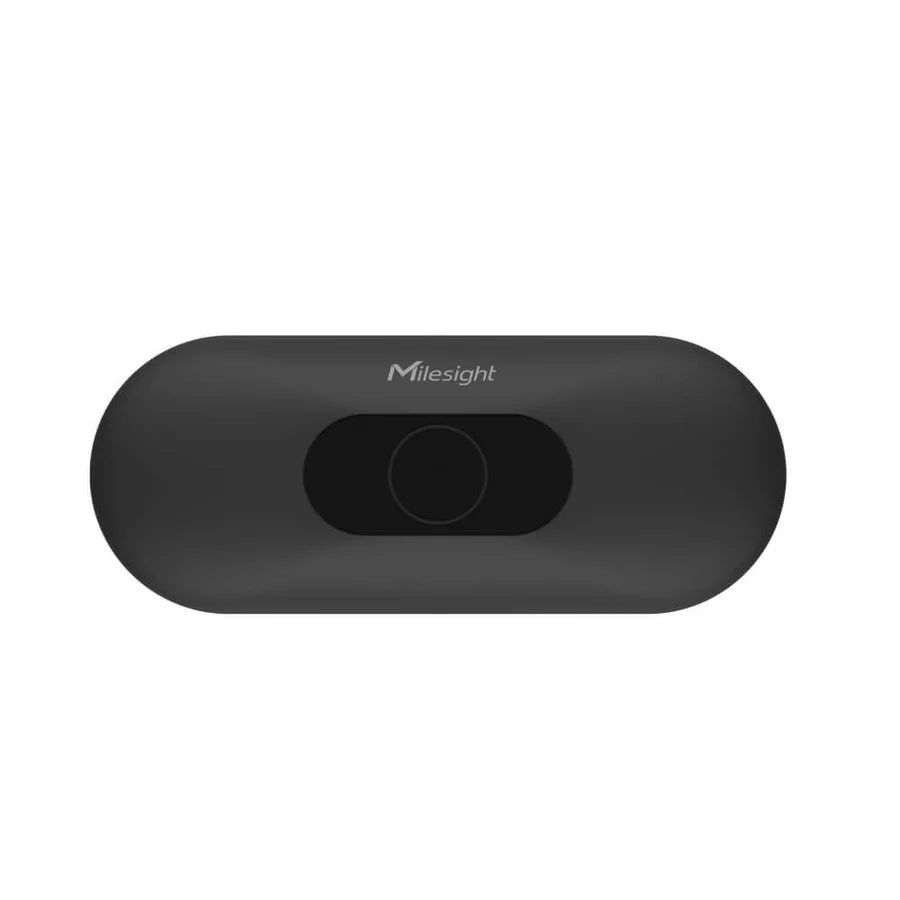

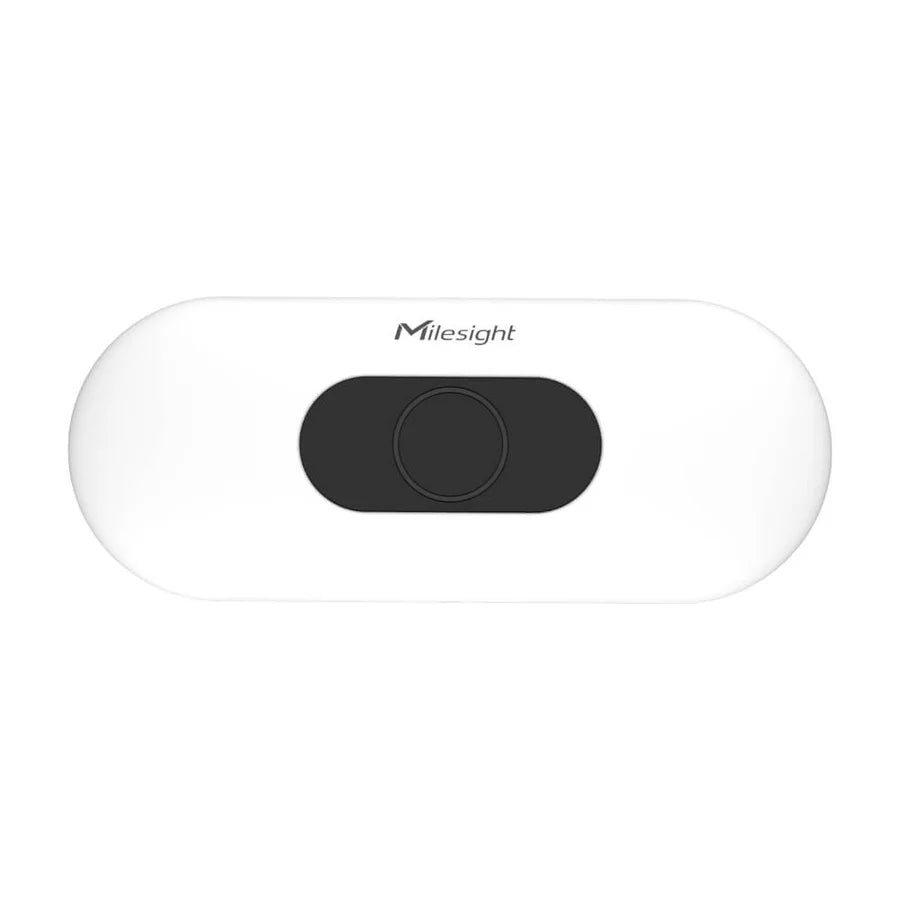

Milesight AI ToF People Counting Sensor - VS135
Regular price
£522.38
Estimated UK delivery 1 - 7 days
Couldn't load pickup availability
The price shown is excluding VAT. If VAT is applicable, it will be calculated at checkout based on the shipment address.
Need help, call 01444 246 128
The Milesight VS135 AI ToF People Counting Sensor, a ToF pioneer with PoE, delivers ultra-precise overhead people counting for staff and groups. Anonymous, GDPR-compliant, AI-powered analytics make VS133 the must-have solution for smart spaces.
Feature
- Optimise energy usage
- Manage facilities efficiently
- Improve space utilisation
| Sensor | |
|---|---|
| Version | PoE Version |
| ToF FoV | Standard Version: 98° Horizontal, 80° Vertical High Ceiling Mount: 60° Horizontal, 45° Vertical |
| ToF Light Beam | 940nm (Invisible) |
| Distance Measuring Accuracy | Standard Version: ± 3.5cm High Ceiling Mount: ± 6.5cm |
| Detection Range | Standard Version: 0.5 ~ 3.5m High Ceiling Mount: 2~ 6.5m |
| Installation Height | Standard Version: ≤ 3.5m High Ceiling Mount: ≤ 6.5m |
| Luminous Mode | Auto / Always On |
| Advanced Function | |
| Bi-Directional People Counting | Up to 4 detection lines for bi-directional people counting |
| U-turns Filtering | Filter redundant counting of people wandering in the bi-directional people counting areas |
| Regional People Counting & Dwell Time Detection | Up to 4 detection areas (up to 10 decagon for each area) for regional people counting and dwell time detection |
| Group Counting | Support |
| Children/Adults Differentiation | Support |
| Staff Detection | Support |
| Occlusion Detection | Support |
| Shopping Cart Fill Level Detection | Support |
| Heat Map | Motion Heat Map, Dwell Heat Map |
| Multi-Device Stitching | Up to 8 devices stitching to expand coverage |
| Data Retransmission | Support 8 x 50000 data retransmission packets |
| Video Validation | Support 1 channel video validation ( the duration of 4 hours) |
| Data Transmission | |
| Ethernet Port | 1 × RJ45 10/100 Mbps (PoE PD) |
| Ethernet Isolation | 1.5 kV RMS |
| Network Protocol | HTTP, HTTPS, MQTT, MQTTS, NTP, 802.1x, SSH, LLDP, BACnet/IP,etc. |
| Other Interfaces | |
| Power Input | 1 × DC Jack Connector |
| Alarm I/O | 1/1 |
| Wi-Fi | IEEE 802.11 b/g/n, 2.4GHz (AP Mode for configuration) |
| Button | 1 × Reset/Wi-Fi Button |
| LED Indicators | 1 × RGB LED indicator |
| Physical Characteristics | |
| Local Storage | Store up to one million data records and supports to export csv file |
| Power Supply | 802.3at PoE+or DC 12V/2A |
| Operating Power Consumption | Standard Version: Avg. 8 W, Max. 17W High Ceiling Mount: Avg. 10 W, Max. 24 W |
| Hibernate Power Consumption | 5W |
| Operating Temperature | -20°C ~50°C |
| Relative Humidity | 0 ~ 95% (Non-condensing) |
| Ingress Protection | IP40 |
| Dimension | 200 x 35 x 85 mm (7.87 x 1.38 x 3.35 in) |
| Weight | 419g |
| Color | White or Black (Optional) |
| Installation | Ceiling Mounting, Extended Ceiling Mounting & Lintel Mounting (with Optional Multifunctional Bracket) |
| Approvals | |
| Regulatory | FCC, CE, GDPR |
