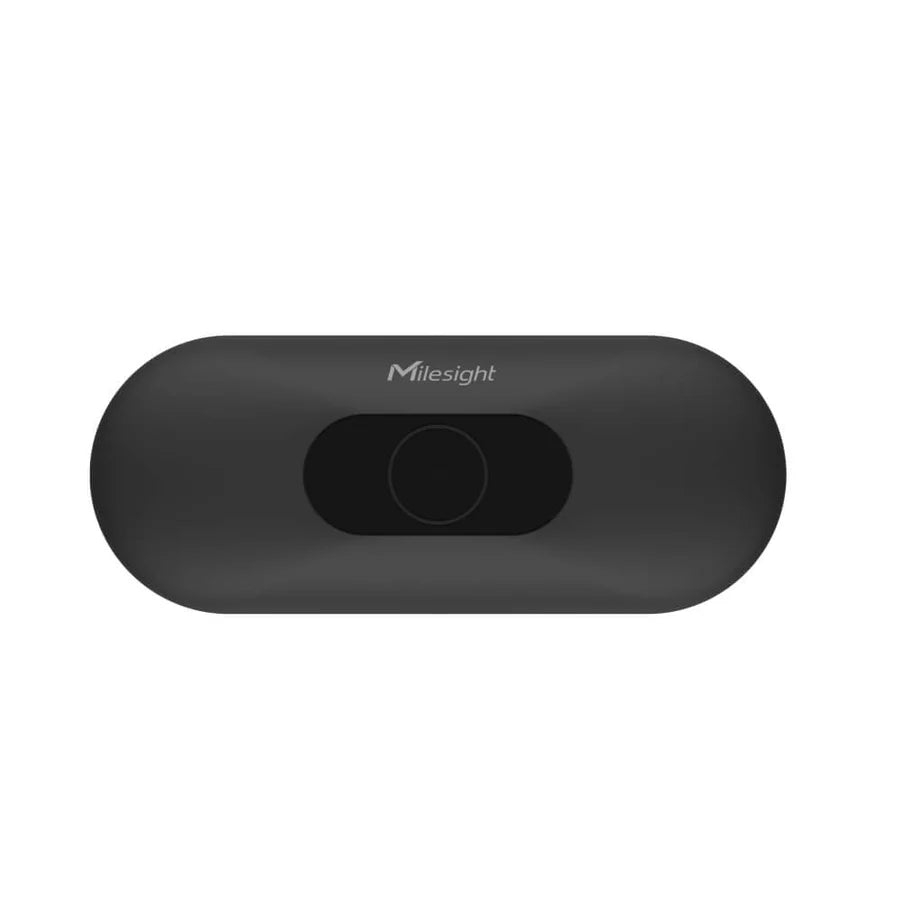

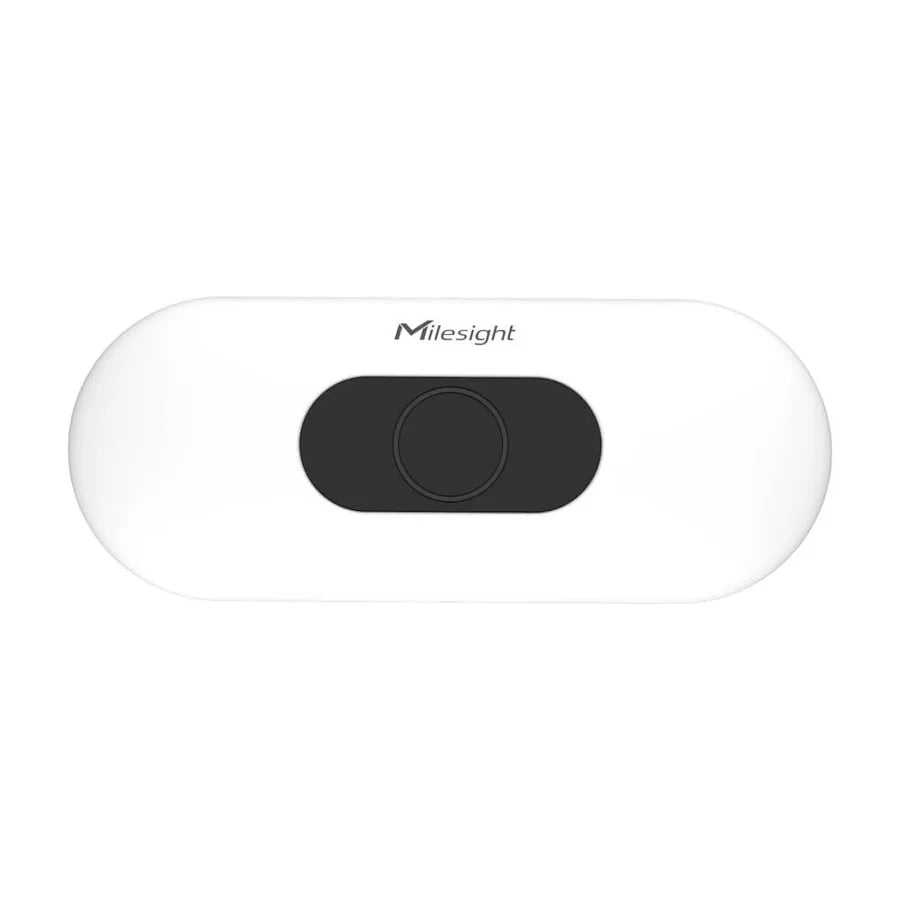

Milesight AI ToF People Counting Sensor - VS133
Regular price
£407.35
Estimated UK delivery 1 - 7 days
Couldn't load pickup availability
The price shown is excluding VAT. If VAT is applicable, it will be calculated at checkout based on the shipment address.
Need help, call 01444 246 128
The Milesight VS133 AI ToF People Counting Sensor, a ToF pioneer, delivers ultra-precise overhead people counting for staff and groups. Anonymous, GDPR-compliant, AI-powered analytics make VS133 the must-have solution for smart spaces.
Feature
- Optimise energy usage
- Manage facilities efficiently
- Improve space utilisation
| People Counting | |
|---|---|
| ToF FoV | 98 ° Horizontal, 80 ° Vertical |
| ToF Light Beam | 940nm (Invisible) |
| Distance Measuring Accuracy | ± 3.5cm |
| Detection Range | 0.5 to 3.5 m |
| Installation Height | ≤ 3.5m |
| Advanced Function | |
| Bi-Directional People Counting | Up to 4 counting lines for bi-directional people counting |
| U-turns Filtering | Filter redundant counting of people wandering in the bi-directional people counting areas |
| Regional People Counting & Dwell Time Detection | Up to 4 detection areas (up to 10 sides for each area) for regional people counting and dwell time detection |
| Group Counting | Support |
| Children/Adults Differentiation | Support |
| Staff Detection | Support |
| Shopping Cart Fill Level Detection | Support |
| Occlusion Detection | Support |
| Heat Map | Motion Heat Map, Dwell Heat Map |
| Data Retransmission | Support 6 x 30000 data retransmission packets |
| Multi-Device Stitching | Support up to 4 devices stitching to expand coverage. Support automatic detection of the deflection angle. |
| Wireless Transmission | |
| Ethernet Port | 1 × RJ45 10/100 Mbps (PoE PD) |
| Ethernet Isolation | 1.5 kV RMS |
| Network Protocol | HTTP(s), MQTT(s), NTP, 802.1x, SSH, LLDP, BACnet/IP, etc. |
| VPN | OpenVPN |
| Other Interfaces | |
| Alarm I/O | 1/1 |
| Serial Interface | 1 × RS485 (Under development) |
| Button | 1 × Reset Button |
| LED Indicators | 1 × RGB LED Indicator |
| Physical Characteristics | |
| Local Storage | Store up to one million data records and supports to export csv file |
| Power Supply | 802.3at PoE+ |
| Power Consumption | Typical 9.4 W, max 23.8 W |
| Operating Temperature | -20°C ~ +50°C |
| Relative Humidity | 0 ~ 95% (Non-condensing) |
| Ingress Protection | IP40 |
| Dimension | 180 × 26 × 72 mm |
| Housing&Color | PC + Aluminium alloy, White |
| Weight | 226g |
| Installation | Ceiling Mounting, Extended Ceiling Mounting & Lintel Mounting (with Optional Multifunctional Bracket) |
| Approvals | |
| Regulatory | CE, FCC, GDPR |
| Environmental | RoHS |
