Milesight 7-in-1 indoor Monitoring Sensor - AM307 / AM307L
Regular price
£220.51
Estimated UK delivery 1 - 7 days
Couldn't load pickup availability
The price shown is excluding VAT. If VAT is applicable, it will be calculated at checkout based on the shipment address.
Need help, call 01444 246 128

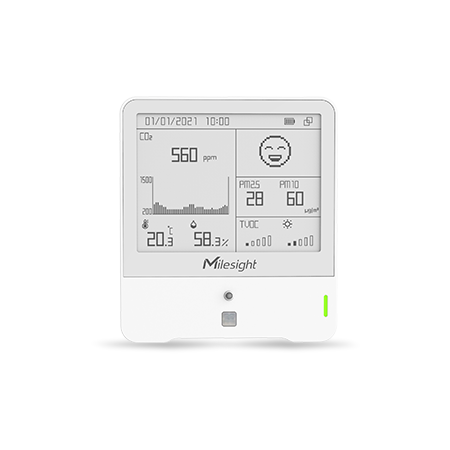

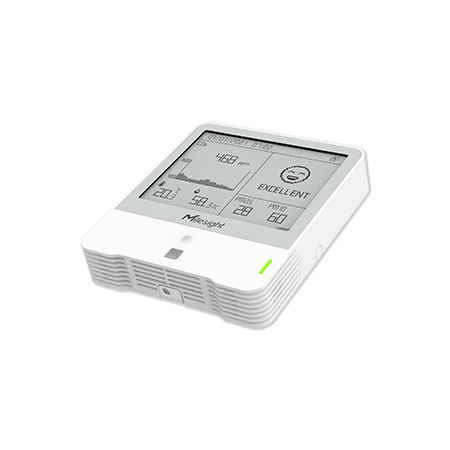

The Milesight AM307/AM307L is a compact indoor ambience monitoring sensor for measurement of temperature, humidity, light, CO2 concentration, TVOC, barometric pressure, and motion. The data will be shown on the E-ink screen in real-time, which helps to measure the indoor environment and comfort. AM307/AM307L is widely used for
offices, stores, classrooms, hospitals, etc.
Feature
- 7 Sensors in 1

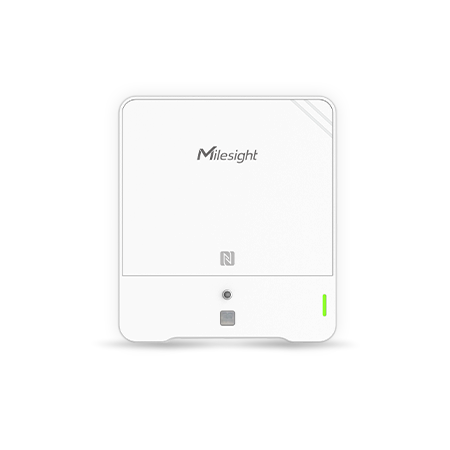

- Optional 4.2 Inch E-ink Screen
- Traffic Light Indicator & Buzzer
- Anti-theft Protection
- Vivid Emoticon Indication - AM307
- Battery Life up to 3 Years - AM307
Specifications
| Wireless Transmission | |
|---|---|
| Technology | LoRaWAN® |
| Frequency | CN470/RU864/IN865/EU868/US915/AU915/KR920/AS923-1&2&3&4 |
| Tx Power | 16dBm(868MHz)/22dBm(915MHz)/19dBm(470MHz) |
| Sensitivity | -137dBm @300bps |
| Work Mode | OTAA/ABP Class A |
| Sensors | |
|---|---|
| Temperature | |
| Operating Principle | Digital CMOSens® technology (MEMS) |
| Range | -20°C~60°C |
| Accuracy | ± 0.2°C |
| Resolution | 0.1°C |
| Humidity | |
| Operating Principle | Digital CMOSens® technology (MEMS) |
| Range | 0% ~ 100% RH |
| Accuracy | ± 2% RH |
| Resolution | 0.5% RH |
| Motion | |
| Operating Principle | Passive infrared (PIR) |
| Detection Range | 80 ° Horizontal, 55 ° Vertical, 5m |
| Status | Vacant/Occupied |
| Light | |
| Operating Principle | Photodiode |
| Range | 0-60000 Lux (Determine as 6 levels, 0-5) |
| TVOC | |
| Operating Principle | MOX (MEMS) |
| Range | 1.00 ~ 5.00 (IAQ Rating) |
| Accuracy | ±1 |
| Resolution | 0.01 |
| Barometric Pressure | |
| Operating Principle | Piezoresistive absolute pressure sensor (MEMS) |
| Range | 260 - 1260 hPa |
| Accuracy | ±0.5 hPa |
| Resolution | 0.1 hPa |
| Carbon Dioxide (CO2) | |
| Operating Principle | Nondispersive Infrared (NDIR) |
| Range | 400 ~ 5000 ppm |
| Accuracy | ± (30 ppm + 3 % of reading) (0°C~ 50°C, 0% to 85%RH) |
| Resolution | 1 ppm |
| Display & Configuration | |
|---|---|
| Display | 4.2-inch Black & White E-Ink Screen |
| Button | 1 × Power Button + 1 × Reset Button |
| LED & Buzzer | 1 × Traffic Light Status Indicator + 1 × Buzzer |
| Configuration | 1. Mobile App via NFC 2. PC software via NFC or USB Type-C port |
| Physical Characteristics | |
|---|---|
| Power Supply | 1. 4 × 2700 mAh ER14505 Li-SOCl2 Replaceable Batteries 2. 5V/1A by Type-C Port |
| Battery Life (10 min interval, 25°C) |
Around 3 Years |
| Operating Temperature | -20°C - 60°C (E-Ink Screen: 0°C - 40°C) |
| Relative Humidity | 10% - 90% (non-condensing) |
| Ingress Protection | IP30 |
| Dimension | 100.8 × 114 × 22 mm (3.97 × 4.49 × 0.87 in) |
| Installation | Wall Mounting via 3M Tape or Screws |
| Approvals | |
|---|---|
| Regulatory | CE, FCC, ISED |
| Environmental | RoHS |
