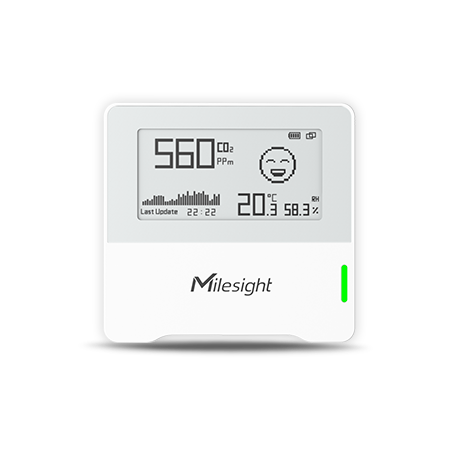

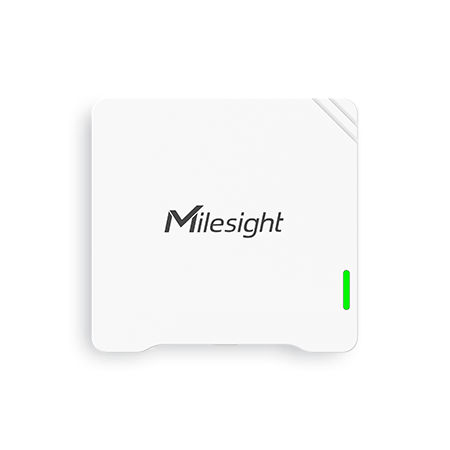

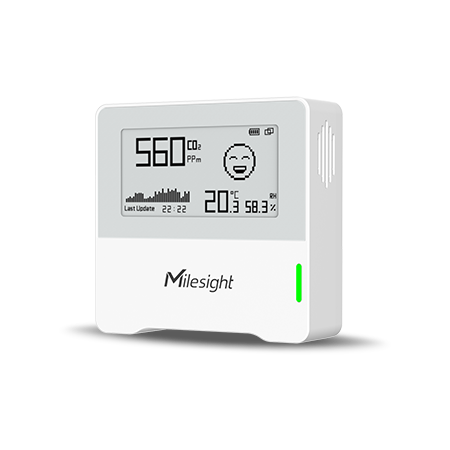

Milesight 3-in-1 IAQ Sensor AM103/AM103L
Regular price
£142.56
Estimated UK delivery 1 - 7 days
Couldn't load pickup availability
The price shown is excluding VAT. If VAT is applicable, it will be calculated at checkout based on the shipment address.
Need help, call 01444 246 128
The Milesight 3-in-1 IAQ Sensor AM103/AM103L is a compact LoRaWAN® air quality sensor for detecting CO 2 concentration, humidity, and temperature accurately
Feature
- Detect CO2, Humidity and Temperature
- Traffic Light Status Indicator
- Hibernation Mode for Low Power Consumption
- Wireless Installation with Anti-Theft Protection
- Support Data Storage and Retransmission
- 2.13 -Inch E-Ink Screen (AM103)
- Vivid Emoticon Indication (AM103)
- Battery Life up to 3 Years (AM103) / 4 Years (AM103L)
Specifications
| Wireless Transmission | |
|---|---|
| Technology | LoRaWAN® |
| Frequency | CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4 |
| Tx Power | 16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz) |
| Sensitivity | -137dBm @300bps |
| Mode | OTAA/ABP Class A |
| Sensors | |
|---|---|
| Temperature | |
| Range | -20°C to + 70°C |
| Accuracy | 0°C to + 70°C (+/- 0.3°C), -20°C to 0°C (+/- 0.6°C) |
| Resolution | 0.1°C |
| Humidity | |
| Range | 0% to 100% RH |
| Accuracy | 10% to 90% RH (± 3%), below 10% and above 90% RH (± 5%) |
| Resolution | 0.5% RH |
| Carbon Dioxide (CO2) | |
| Range | 400 to 5000 ppm |
| Accuracy | ± (30 ppm + 3 % of reading) |
| Resolution | 1 ppm |
| Display & Configuration | |
|---|---|
| Display | AM103: 2.13-inch Dark & Light E-Ink Screen AM103L: Not Support |
| Button | 1 × Power Button |
| LED | 1 × Traffic Light Status Indicator |
| Configuration | Mobile App via NFC |
| Physical Characteristics | |
|---|---|
| Power Supply | 2 × 2700 mAh ER14505 Li-SOCl2 Replaceable Batteries |
| Battery Life1 (10 min interval) |
AM103: Around 3 Years AM103L: Around 4 Years |
| Operating Temperature | -20°C to +60°C (E-Ink Screen: 0°C - 40°C) |
| Relative Humidity | 0% to 95% (non-condensing) |
| Ingress Protection | IP30 |
| Dimension | 68 × 65 × 20.5 mm (2.68 × 2.56 × 0.81 in) |
| Installation | Wall Mounting |
