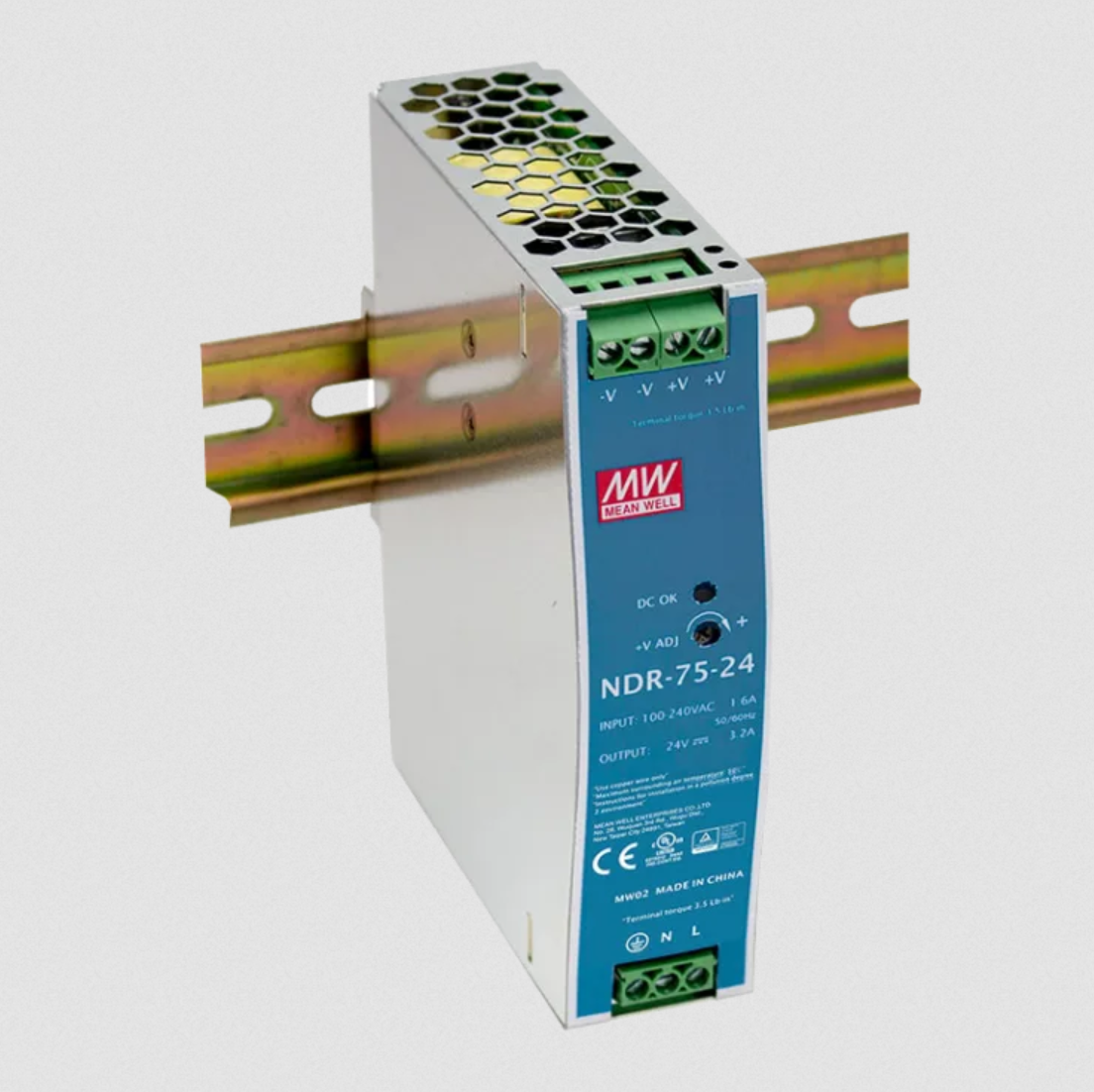

MEAN WELL NDR-75-24 Series
Couldn't load pickup availability
The price shown is excluding VAT. If VAT is applicable, it will be calculated at checkout based on the shipment address.
Need help, call 01444 246 128
MEAN WELL NDR-75-24 is one economical slim 75W Din rail power supply series, to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed 32mm in width, which allows space saving inside the cabinets.
The entire series adopts the full range AC input from 90VAC to 264VAC and conforms to EN61000-3-2, the norm the European Union regulates for harmonic current. NDR-75 is designed with metal housing that enhances the unit's power dissipation. With working efficiency up to 89%, the entire series can operate at the ambient temperature between -20 and 70 under air℃ ℃ convection.
It is equipped with constant current mode for over-load protection, fitting various inductive or capacitive applications. The complete protection functions and relevant certificates for industrial control apparatus (UL508, TUV EN62368-1, and etc.) make NDR-75 a very competitive power supply solution for industrial applications.
Features
- Universal AC input / Full range
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- Can be instaled on DIN rail TS-35/7.5 or 15
- UL 508 (industrial control equipment) approved
- EN61000-6-2 (EN500082-2) Industrial immunity level
- 100% full load burn-in test
- 3 years warranty
Technical data
| Wattage | 76.8 | ||
| Input Voltage | 90-264VAC | ||
| Output Current | 3.2A | ||
| Output Voltage | 24 | ||
| Output Voltage Options | Single | ||
| Dimensions | 32x 125.2x 104 | ||
| Working Temperature | -20-+70°C | ||
| Safety Standards | UL508, TUV EN60950-1 approved | ||
| EMC Standards | Compliance to EN55022 (CISPR22), EN61204-3 Class B, EN61000-3-2,-3, Compliance to EN61000-4,-2,3,4,5,6,8,11, EN55024, EN61000-6-2 (EN50082-2), EN61204-3, heavy Industry level, criteria A | ||
