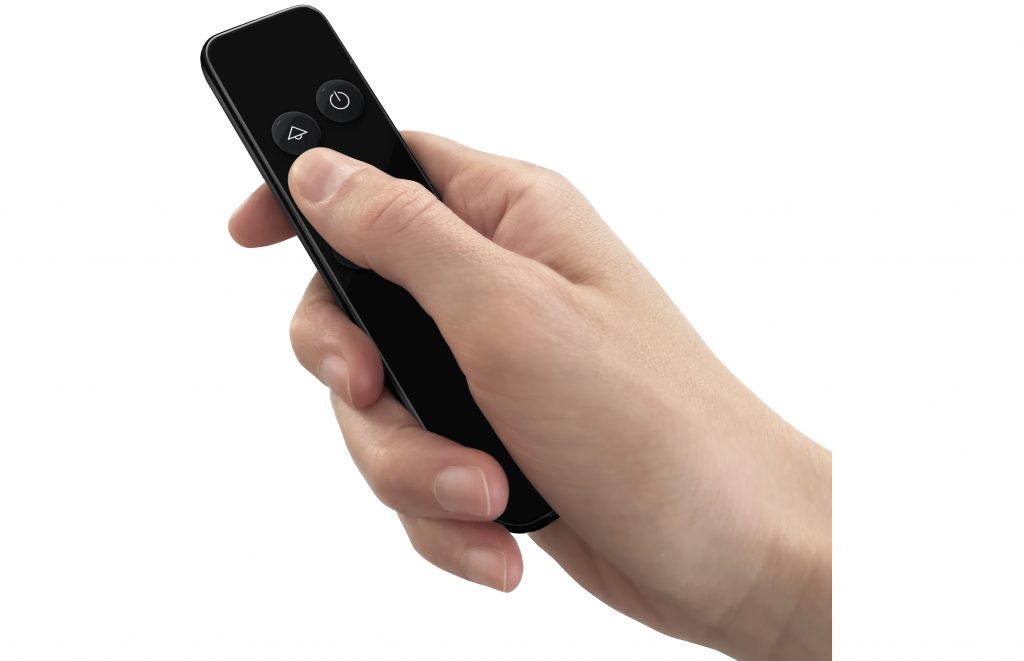

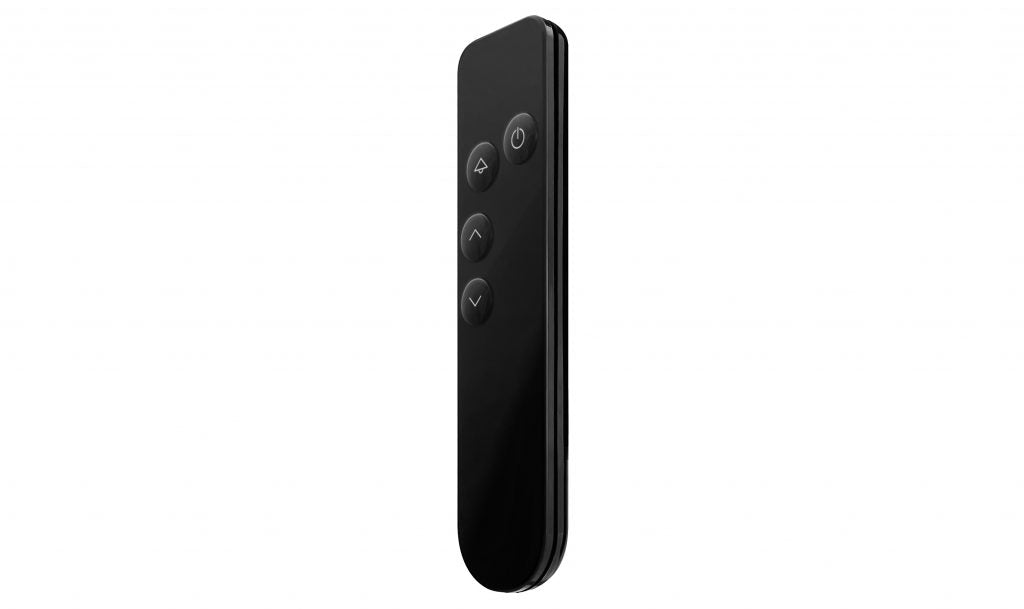

Lunatone wDALI-2 Extra Long Range Remote & Receiver - Wireless remote control with 4 buttons for DALI systems
The mobile control unit allows location-independent operation of the DALI system. The wireless range is up to 800 m in open field, and 100–500 m indoors depending on the building structure. Each button can be individually configured with target address, button behaviour and DALI commands. In addition to the standard functions such as dimming, switching, and scene recall, DT8 commands for color and color temperature control are also supported.
Configuration is possible via DALI Cockpit and a Lunatone DALI USB interface.
Multiple control units can be paired with one receiver – or one control unit with multiple receivers.
Furthermore the device supports multi-master operation and customisable power-up behaviour.
A version with integrated DALI bus power supply (Art. No. 87313917-PS) is available.
Specifications- wDALI Remote
Technical data
| Wireless technology / policy | ELORA 868 MHz / RL 2014/53/EU |
| Inputs | 4 pushbuttons |
| Operational ambient temperature | 0°C…+50°C |
| Storing and transportation temperature | -20°C…+75°C |
| Protection degree housing | IP40 |
Electrical data
| Supply | Battery |
| Expected battery life |
~10 000 actuations within 10 years |
Specifications- wDALI Receiver
Technical data
| Ambient temperature | -20°C…+55°C |
| Protection class | IP20 |
| Wire size stranded wired | max. 1.5mm² |
| Mounting | Back box installation |
Electrical data
| Supply, mains- voltage | L, N |
| Input voltage range | 210Vac … 250Vac |
| Max input current | 5mA |
| Max. power consumption (210-250V) Art.Nr.: 87313917 | Max 2mA: 250mW |
| Max. power consumption (210-250V) Art.Nr.: 87313917-PS | Max 9mA: 1,2W |
| Output type | DALI control: DA, DA |
| Output type | DALI control and DALI power supply 20mA (for up to 10 standard DALI-ballasts) |
| Output voltage range | 12,0Vdc … 20,5Vdc according to IEC62386 |
| Guaranteed DALI supply current | 20mA |
| max. DALI | 250mA |
Function
| Device type | wDALI control unit - wireless control of DALI systems |
| Wireless technology / policy | E-LORA 868 MHz / RL 2014/53/EU |
| Configurable with DALI Cockpit PC Software | yes |
Dimensions
| Length, Width, Height | 59mm, 33mm,10mm |
| Colour | Grey |
