Lunatone wDALI-2 Bluetooth 5 CW-WW LED Dimmer CC DT8

In stock
SKU: 86458911-BT-350
Buy 10 or more Lunatone products to get 10% off. FOR LARGER ORDERS CONTACT US DIRECTLY FOR FURTHER DISCOUNTS
X
£92.73
Title
Estimated UK delivery 1 - 7 days

The price shown is excluding VAT. If VAT is applicable, it will be calculated at checkout based on the shipment address.

Need help, call 01444 246 128

Lunatone wDALI-2 CW-WW Dimmer module is used to wirelessly control tuneable white luminaries via one DALI address (DALI DT8).

The LED ballasts can be switched, dimmed and adjusted in colour temperature by using DALI commands. The device supports Operating Mode DT8, Operating Mode Balance&Dim, Operating Mode Dim2Warm.

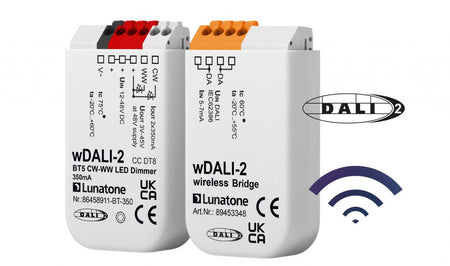

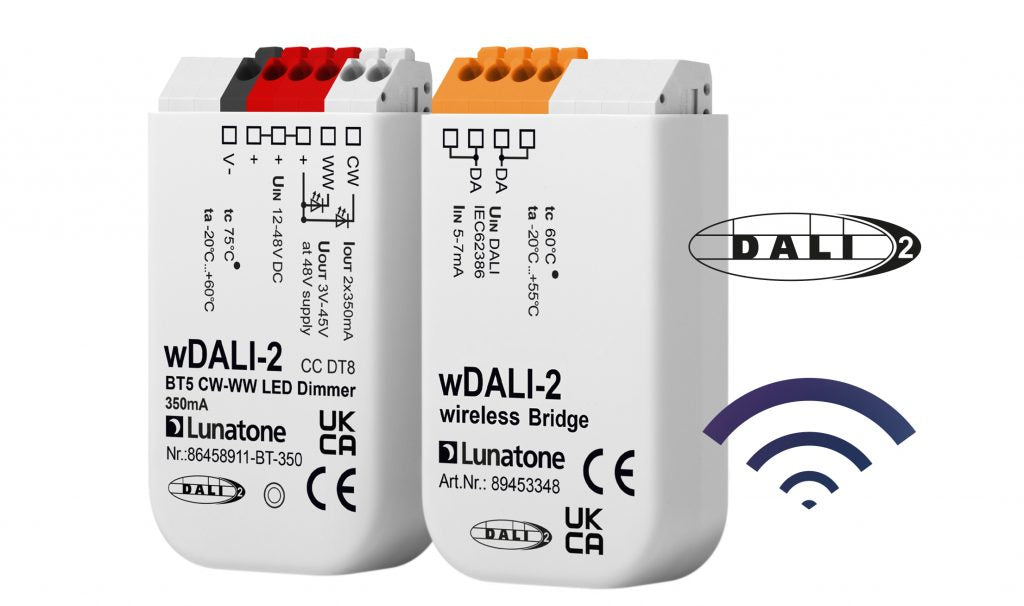

Wireless control is achieved through a transmitter unit wDALI-2 BT5 Bridge and the receiver module wDALI-2 CW-WW Dimmer.

The transmitter is connected to the DALI line, while the receiver is powered by 12-48V DC.

The wireless range depends on structural conditions: 8–12m (up to 150 m in open field).

Specifications

Technical data

Ambient temperature -20°C to +60°C
Protection class IP20/IP40
Connection wire cross section max. 1.5mm²
Mounting Back box / Installation box


Electrical data

Input V+, V- (GND)

Input type Supply, DC: V+, V-
Supply voltage Vin  12V DC … 48V DC (SELV)
Max. output current Iled 350mA
Rated power @12V / @48V  4.2W / 16.8W
Standby power consumption  ~ 180mW @12V
Power on behaviour  configurable via DALI: 0%-100% or last actual level


Output: LED+, LED-

Output type LED dimmer, constant current PWM: LED+,LED-
Number of outputs
2
Output voltage range Vled
3V-45V (at 48V supply)
Max. input current Iinmax  350mA
Max. output power per channel @45V  15,75 W


Function

Device type
 wDALI system extension -
wireless 2 Ch LED Dimmer
Wireless technology / policy Bluetooth 5 Long Range
Configurable with DALI Cockpit PC Software Yes

Dimensions

Length 59mm
Width
 33mm
Height
 15mm
Colour Grey
