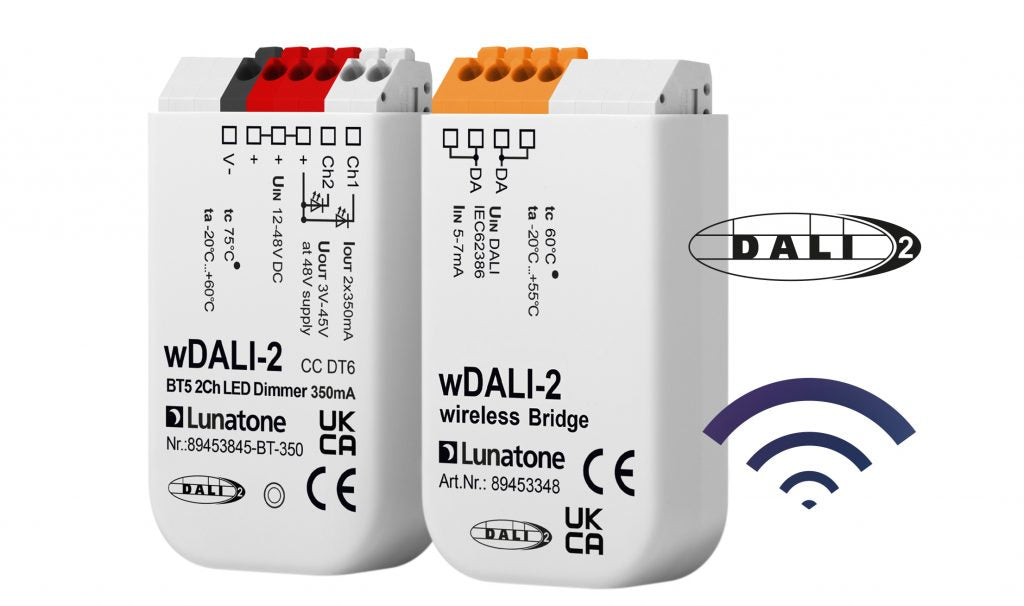

Lunatone wDALI-2 2 Channel Dimmer module is used to wirelessly control dimmable luminaries. The LED ballasts can be switched, dimmed and/or adjusted in colour temperature with 2 independent channels.
Each channel has its own DALI address. The device supports Operating Mode DT6, Balance&Dim, Dim2Warm (suitable for Tunable White luminaires).
Wireless control is achieved through a transmitter unit wDALI-2 BT5 Bridge and the receiver module wDALI-2 2 Ch Dimmer.
The transmitter is connected to the DALI line, while the receiver is powered by 12-48V DC.
The wireless range depends on structural conditions: 8–12m (up to 150 m in open field).
