Lunatone wDALI-2 Bluetooth 5 1 Ch LED Dimmer CC DT6

In stock
SKU: 89453844-BT-350
Buy 10 or more Lunatone products to get 10% off. FOR LARGER ORDERS CONTACT US DIRECTLY FOR FURTHER DISCOUNTS
X
£70.91
Title
Estimated UK delivery 1 - 7 days

The price shown is excluding VAT. If VAT is applicable, it will be calculated at checkout based on the shipment address.

Need help, call 01444 246 128

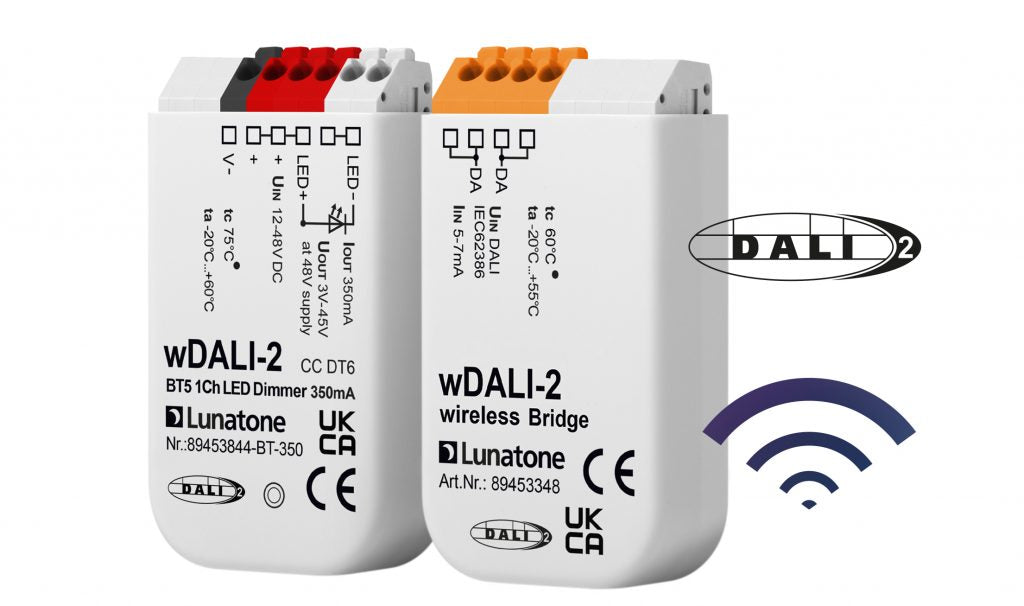

Lunatone wDALI-2 1 Channel Dimmer module is used to wirelessly control dimmable luminaries.

The device offers one Channel with 1 DALI address. The LED ballasts can be switched and dimmed via this DALI address.

Wireless control is achieved through a transmitter unit wDALI-2 BT5 Bridge and the receiver module wDALI-2 1 Ch Dimmer.

The transmitter is connected to the DALI line, while the receiver is powered by 12-48V DC.

The wireless range depends on structural conditions: 8–12m (up to 150 m in open field).

Specifications

Technical data

Ambient temperature -20°C to +60°C
Protection class IP20/IP40
Connection wire cross section max. 1.5mm²
Mounting Back box / Installation box


Electrical data

Input V+, V- (GND)

Input type Supply, DC: V+, V-
Supply voltage Vin  12V DC … 48V DC (SELV)
Max. output current Iled 350mA
Rated power @12V / @48V  4.2W / 16.8W
Standby power consumption  ~ 180mW @12V
Power on behaviour  configurable via DALI: 0%-100% or last actual level



Output: LED+, LED-

Output type LED dimmer, constant current PWM: LED+,LED-
Number of outputs
1
Output voltage range Vled
3V-45V (at 48V supply)
Max. input current Iinmax  350mA
Max. output power per channel @45V  15,75 W


Function

Device type
 wDALI system extension -
wireless 1Ch LED Dimmer
Wireless technology / policy Bluetooth 5 Long Range
Configurable with DALI Cockpit PC Software Yes

Dimensions

Length 59mm
Width
 33mm
Height
 15mm
Colour Grey
