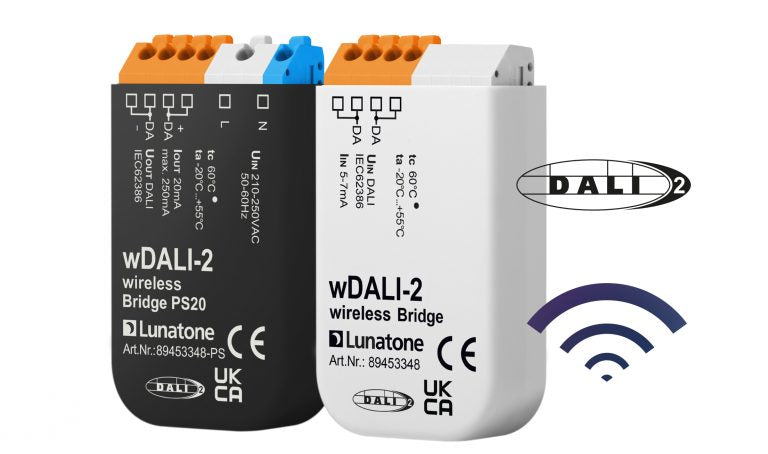

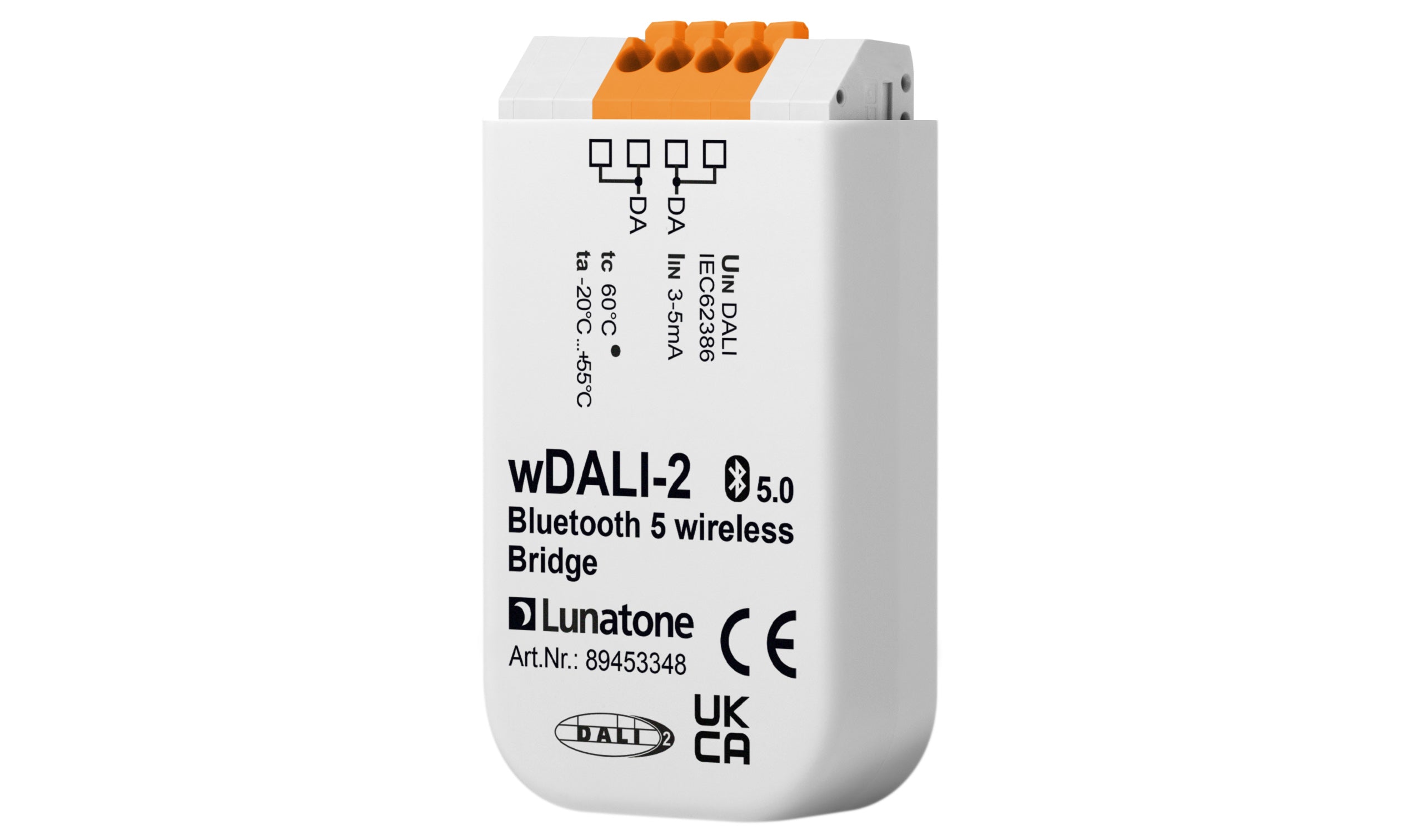

Lunatone Module to wirelessly connect spatially separated DALI lines. The wireless connection is bidirectional – control is possible from both DALI lines. Additionally, DALI queries are supported.

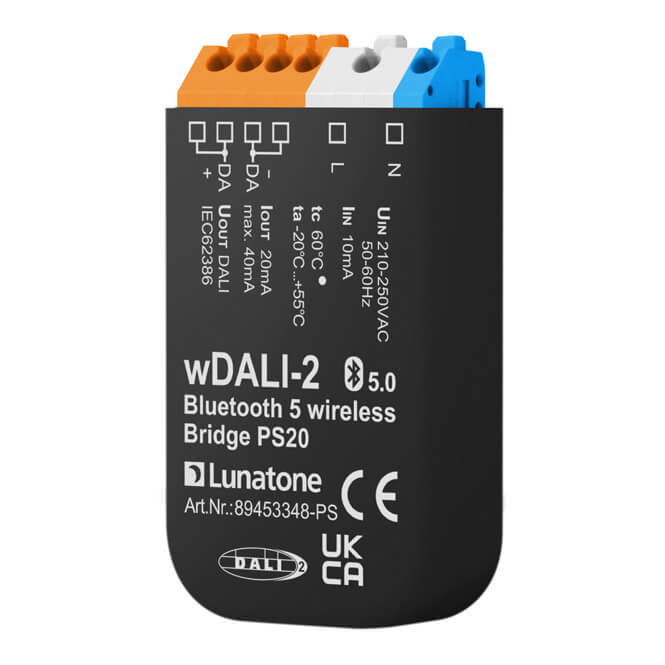

The wireless connection is set up using the DALI Cockpit PC Software. The device connected to the DALI Cockpit can be set to Master mode and wirelessly searches for all other modules (Slaves) within range. The Slaves can then be paired with the Master via the Cockpit Software. After paring the DALI devices in the Slave-DALI-lines can be addressed and configured wirelessly via the wireless DALI bridge that has been set up. The range of the wireless connection is up to 300m outdoors, inside buildings, depending on construction, from 10m to 20m. The device is suitable for flush-mounted installation boxes. Version with integrated DALI Power Supply (Art. Nr. 89453348-PS), provides 20mA for the sub-line (up to 10 DALI ballasts).
Specifications
Technical data
Ambient temperature
-20°C to +55°C
Protection class
IP20/IP40
Connection wire cross section
max. 1.5mm²
Mounting
Back box / Installation box
Electrical data
Input L,N(only Art.Nr.: 89453348-PS)
Supply, Mains voltage
L,N
Input voltage range
210Vac … 250Vac
Input supply frequency
50-60Hz
Max. power consumption
1 Watt
DALI output Art.Nr.: 89453348
Output type
DALI control: DA, DA
Typ. current consumption Iin
2 mA
DALI output Art.Nr.: 86452785-PS
Output type
DALI control and DALI power supply 20mA: DA+, DA-
Output voltage range
12,9Vdc ... 20,5Vdc according to IEC62386 20mA
Guaranteed DALI supply current
20mA
Max. DALI Ausgangsstrom
250mA
Function
Device type
wDALI system extension - Module for the wireless connection of spatially separated DALI systems
