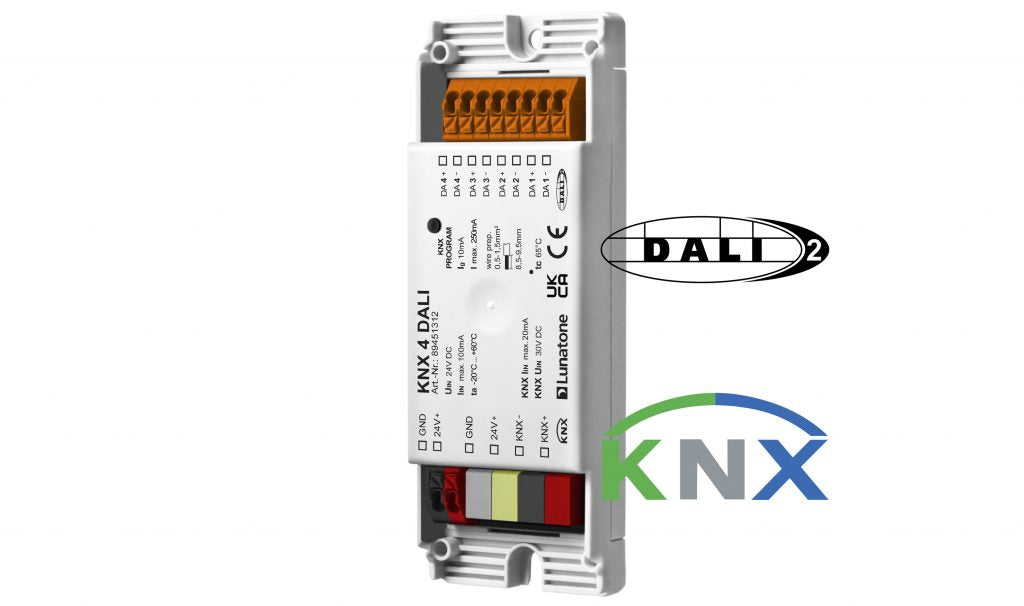

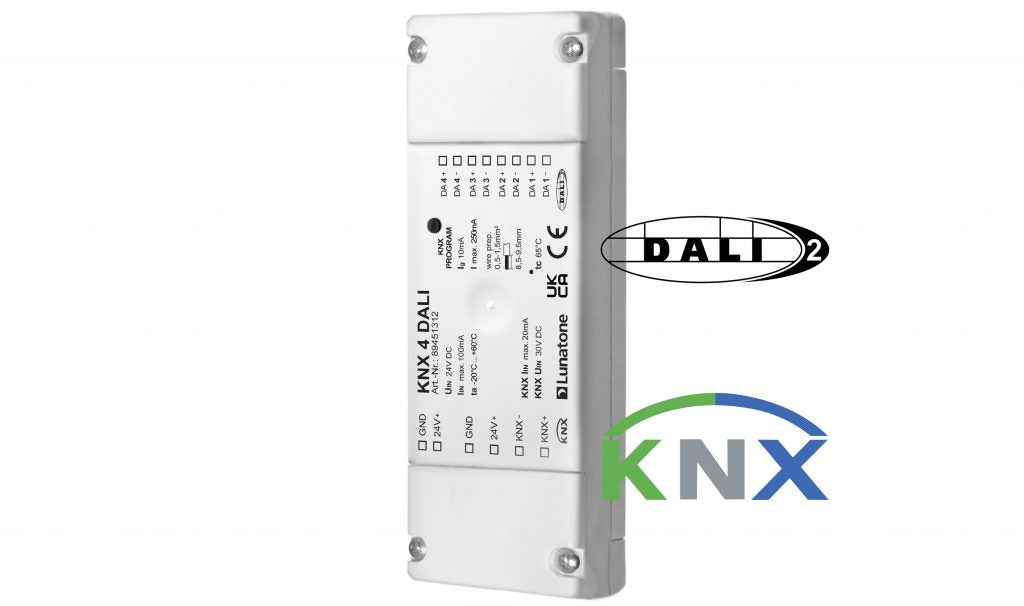

The KNX 4 DALI Gateway is DALI-2 and KNX certified.
The gateway enables broadcast control of 4 DALI lines, each with 4 DALI operating devices. If needed, the number of devices can be extended with a DALI Expander. The 4 DALI lines are supplied with power by the KNX 4 DALI Gateway.
The configuration of the DALI-KNX Gateway can be done with the provided product database for ETS5. The data point types that match the DALI devices can be set in the ETS5 and linked to the KNX components.
Color temperature control (DT8: CW-WW), color control (DT8: RGB, RGBW) as well as the control of other light sources (DT0, DT2, DT3, DT4, DT6) are supported. DALI scene recalls are possible with KNX communication objects for scenes.
