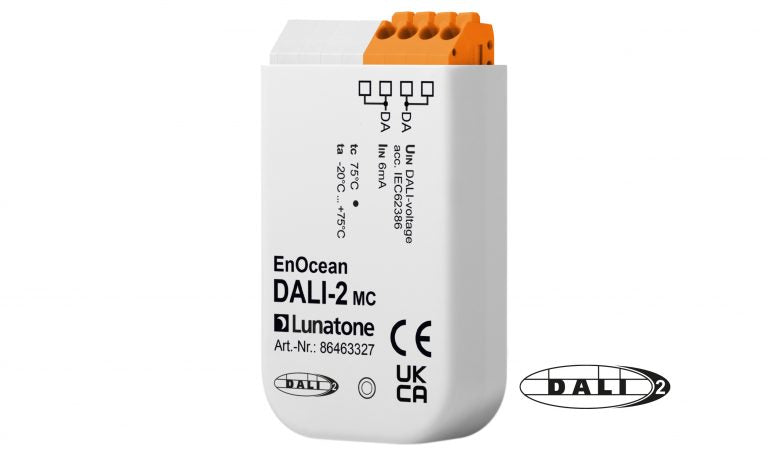

Lunatone EnOcean DALI-2 MC
Couldn't load pickup availability
The price shown is excluding VAT. If VAT is applicable, it will be calculated at checkout based on the shipment address.
Need help, call 01444 246 128
Lunatone Compact DALI-2 control module for connection of up to 4 EnOcean pushbuttons to the DALI system. Each of the 4 EnOcean inputs can be individually configured with effective range, switching functions and DALI commands. Besides the standard functions, dimming, switching, scene recall, etc., predefined macros such as setting the colour temperature, dynamic scenes and sequences as well as user defined command lists are supported. The device is designed to fit a flush-type installation box.
With variant 86463327-app, the application controller is activated. In addition to the standard DALI commands, the DALI DT8 TC and RGB (W) control is also supported. The device can also be set to instance mode with the DALI Cockpit PC Software.
The variant 86463327-int is set to instance mode (no direct DALI control commands) for integration into higher-level building management systems from e.g. WAGO, Beckhoff. The application controller can be activated with the DALI Cockpit PC Software.
With the 86463327-NFC version, selected settings are adjustable using a NFC ready smartphone and the Lunatone NFC App (in addition to configuration via the DALI Cockpit PC Software).
Specifications
Technical data
| Ambient temperature | -20°C to +75°C |
| Protection class | IP20 |
| Connection wire cross section | Max. 1.5mm² |
| Mounting | Back box |
Electrical data
| Supply | From DALI bus |
| max. current consumption DALI (10V) |
10 mA |
| Number of inputs: EnOcean | 4 |
| Minimum length of control pulse | 40ms |
| Control pulse length for long press | >500ms |
| Output type | DALI, DALI-2, Multimaster |
Function
| Device type |
Push button coupler |
| Configurable via DALI Cockpit |
Yes |
| Multi-master capable | Yes |
Dimensions
| Length | 59mm |
| Width |
33mm |
| Height |
15mm |
| Colour | Grey |
