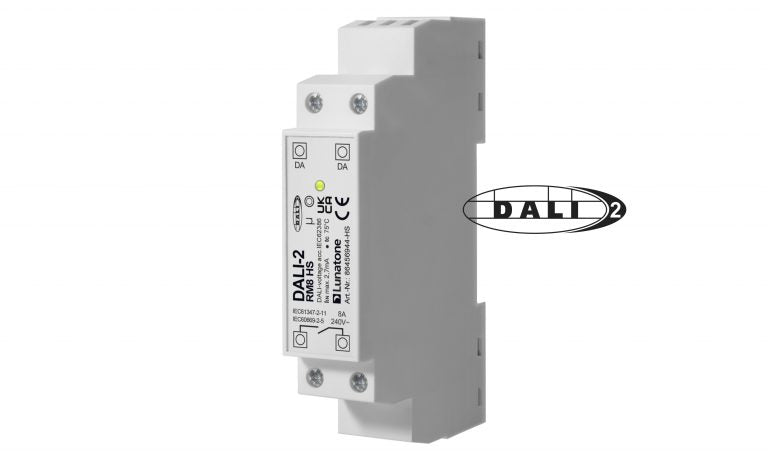

Lunatone DALI-2 RM8 DIN Rail
Couldn't load pickup availability
The price shown is excluding VAT. If VAT is applicable, it will be calculated at checkout based on the shipment address.
Need help, call 01444 246 128
Lunatone DALI-2 RM8 provides a via DALI bus controllable relay switch, which allows direct switching of permanent loads up to 2kW. Various compact designs and variations with make contact or changeover contact are available. The purposeful switching in voltage zero crossings, enables an increase of the device lifetime.
The product range also includes versions with integrated in-rush current limitation, which are suitable for applications with high in-rush currents. Power-up mode and system-failure settings can be configured using the DALI Cockpit.
Specifications
Technical data
| Ambient temperature | -20°C to +60°C |
| Protection class | IP20 |
| Connection wire cross section | 2.5mm² |
| Mounting | DIN Rail |
Electrical data
| Supply | From DALI bus |
| Typ. current consumption DALI |
2.7mA |
| Input |
DALI |
| Relay output switch on/off voltage | 250V AC |
| Max. switching current | 8A |
| Max. nominal load | 1000VA |
| Switching method |
Zero cross switching
|
| Maximum switching frequency | 1Hz |
| Type of relay contact |
1 normally open
|
| Switching operations at nominal load - resistive |
>10^5
|
Function
| Device type |
DALI Switching actuator |
| Configurable via DALI Cockpit | Yes |
Dimensions
| Length | 98mm |
| Width |
17.5mm |
| Height |
56mm |
| Colour | Grey |
