Lunatone DALI-2 RTC+ Timer

In stock
SKU: 86457142
Buy 10 or more Lunatone products to get 10% off. FOR LARGER ORDERS CONTACT US DIRECTLY FOR FURTHER DISCOUNTS
X
Regular price £162.04
Title
Estimated UK delivery 1 - 7 days

The price shown is excluding VAT. If VAT is applicable, it will be calculated at checkout based on the shipment address.

Need help, call 01444 246 128

This Timer module DALI-2 RTC+ enables the configuration and query of date and time as well as time based control of the DALI system – scheduler function.

Up to 32 entries can be defined, each consisting of weekday, days of the month, months, time stamp and DALI commands.

Timestamps can be selected not only in absolute terms but also in relation to sunrise and sunset – Astroclock function.

The scheduler entries can be activated/deactivated via scene commands.
Automatic daylight saving can be set.

The device is designed to fit in a flushmounted installation box or integration in class II devices.

Specifications

Technical data

Ambient temperature -20°C bis +60°C
Protection class IP20
Connection wire cross section Max. 1.5mm²
Mounting Back box


Electrical data

Supply From DALI bus
Current  consumption
5mA (DALI)
Input DALI
Output DALI
RTC
Quartz accuracy


Function

Device type
Control device
Timer
Up to 32 entries programmable


Dimensions

86457142 (length, width, height) 59x33x15mm

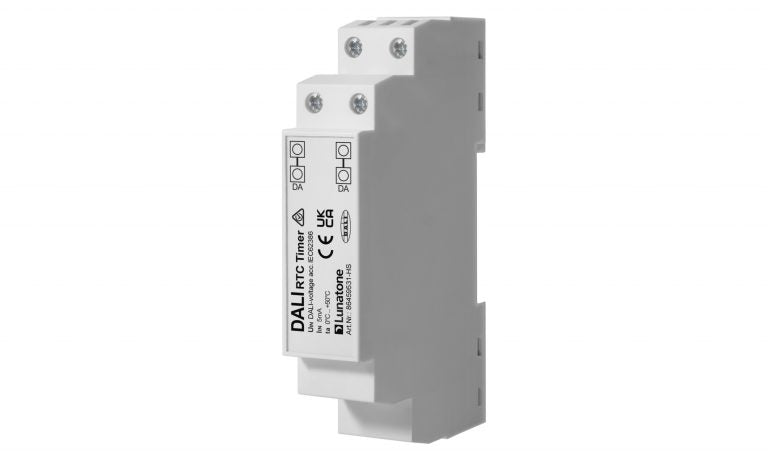

86457142-HS (length, width, height)
98x17,5x56mm
Colour Grey
