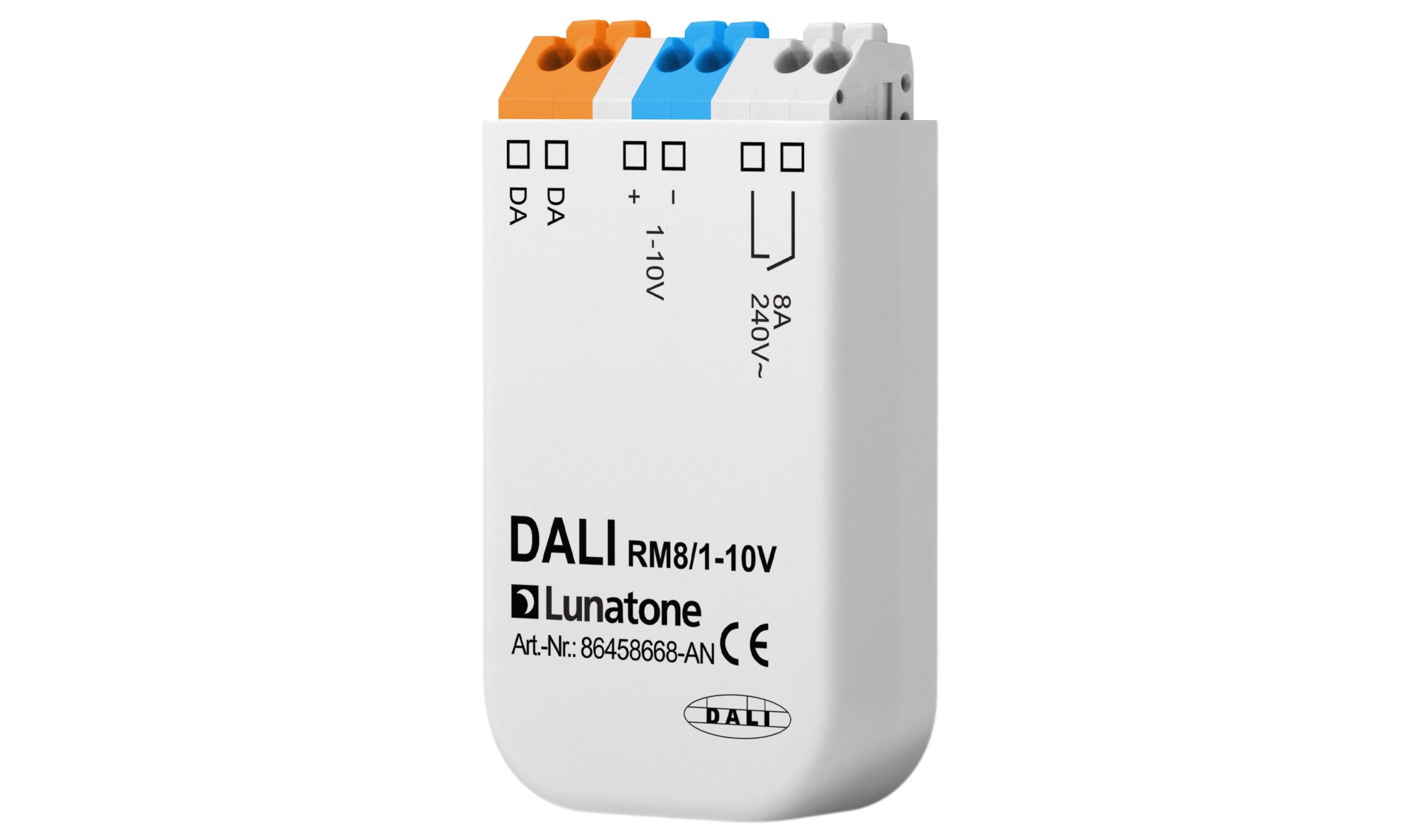

This Lunatone interface converts DALI signals into a 1-10V control signal and enables the integration of control gear with 1-10V control input in a DALI system. With the help of the integrated switching relay, the power supply of the LED ballasts is switched on and off. DALI Device Type 5 (IEC62386-206) compatible: -Selection of linear or logarithmic dimming curve -Selection of 0-10V or 1-10V output voltage range
Specifications
Technical data
| Ambient temperature | -20°C to +60°C |
| Protection class | IP20 |
| Connection wire cross section | Max. 1.5mm² |
| Mounting |
Back box installation, integration in luminaires
|
Electrical data
| Supply | From DALI Bus |
| Current consumption DALI |
4.2mA |
| Input | DALI |
| Output | 1-10V analog; max. 1mA |
| Switching voltage relay | 250V AC / 400V AC |
| Nominal load relay | 1000VA |
| Max. switching current relay | 8A |
| Max. inrush current relay | 80A |
| Switching operations at nominal load - resistive | 3x10^4 |
| Max. switching frequency relay |
1Hz
|
Function
| Device type | Signal Converter |
| Configurable via DALI Cockpit |
Yes |

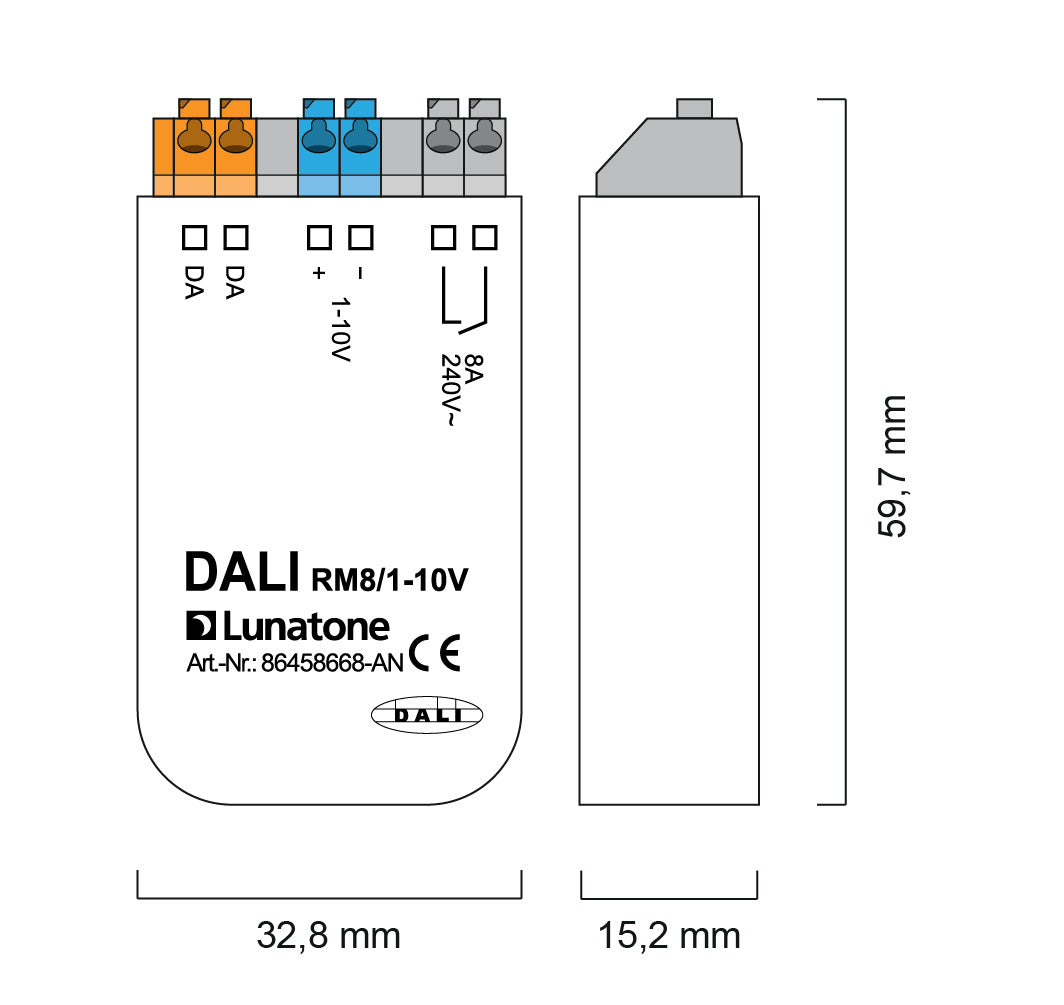

Dimensions
| Length | 59mm |
| Width |
33mm |
| Height |
15mm |
| Colour | Grey |
