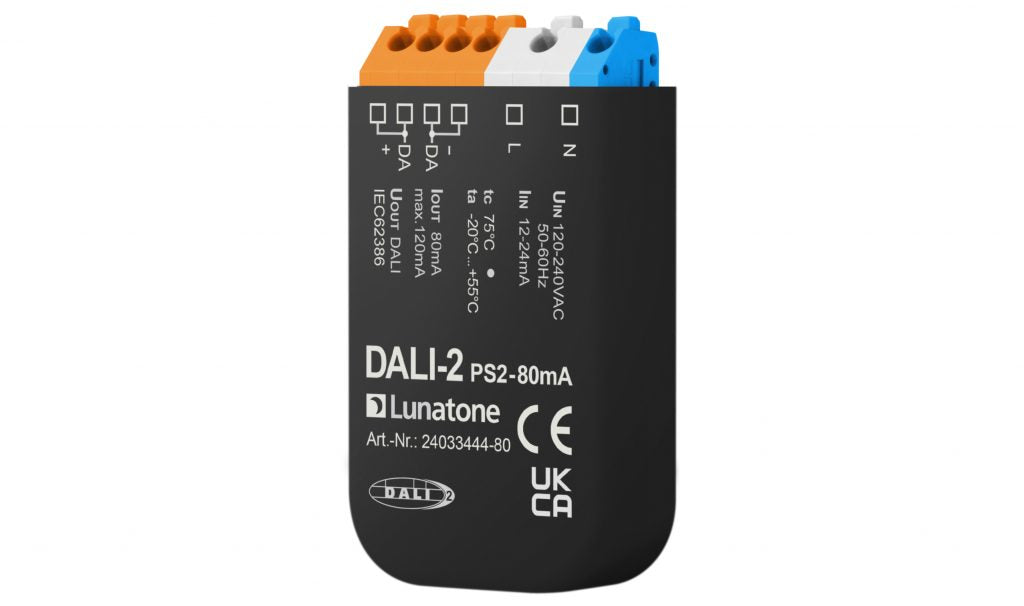

Lunatone DALI PS2 80mA serves as power supply for the DALI bus system. Voltage and current limitation according to standard as well as timing ensure a reliable bus communication. With the output current of up to 80mA a small to medium-sized DALI installation can be supplied. Up to 15 or 40 addressable DALI devices and control modules (DALI Sensors, MC, Touch panel…)can be connected, up to an overall load of 80mA. The device is suitable for installation in flush-mounted installation boxes.
Specifications
Technical data
Ambient temperature
-20°C to +55°C
Protection class
IP20
Connection wire cross section
Max. 1.5mm²
Mounting
Back box
Electrical data
Supply
120V/240V AC 50/60Hz
Max. Output current
80mA guaranteed
Rated power
2W
Output
DALI
Function
Device type
Bus supply
Dimensions
Length
59mm
Width
33mm
Height
15mm
Colour
Black
