Lunatone DALI-2 LS - Light Sensor

In stock
SKU: 68791433
Buy 10 or more Lunatone products to get 10% off. FOR LARGER ORDERS CONTACT US DIRECTLY FOR FURTHER DISCOUNTS
X
Regular price £51.19
Title
Estimated UK delivery 1 - 7 days

The price shown is excluding VAT. If VAT is applicable, it will be calculated at checkout based on the shipment address.

Need help, call 01444 246 128

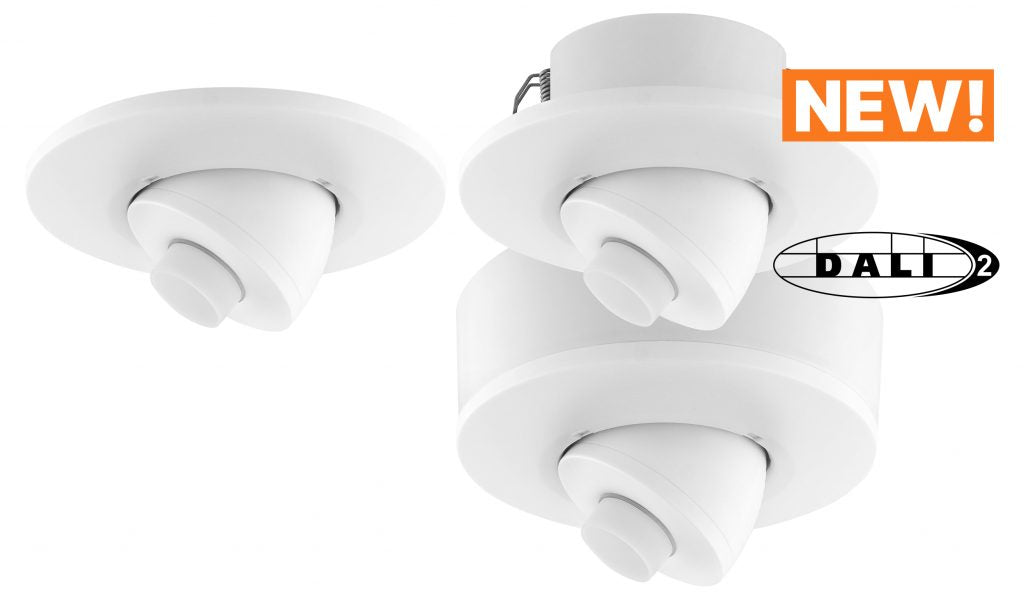

The Lunatone DALI-2 LS Compact light sensor module for DALI and DALI-2 systems.

2 operating modes are supported: constant light control or light control via 4 threshold values.

The operating mode can easily be changed via scene calls or external DALI commands. The constant light control automatically regulates the light level of individual luminaires or luminaire groups to a user-defined light value. Blinds and roller blinds can be automated via user-defined light thresholds.

The module can either be used to directly control the DALI system (application controller) or simply to gather measurements for a building management system (instance mode). Multiple sensors can be used in one system.
The measured values can be read out via the DALI line.
The device is powered directly by the DALI bus.

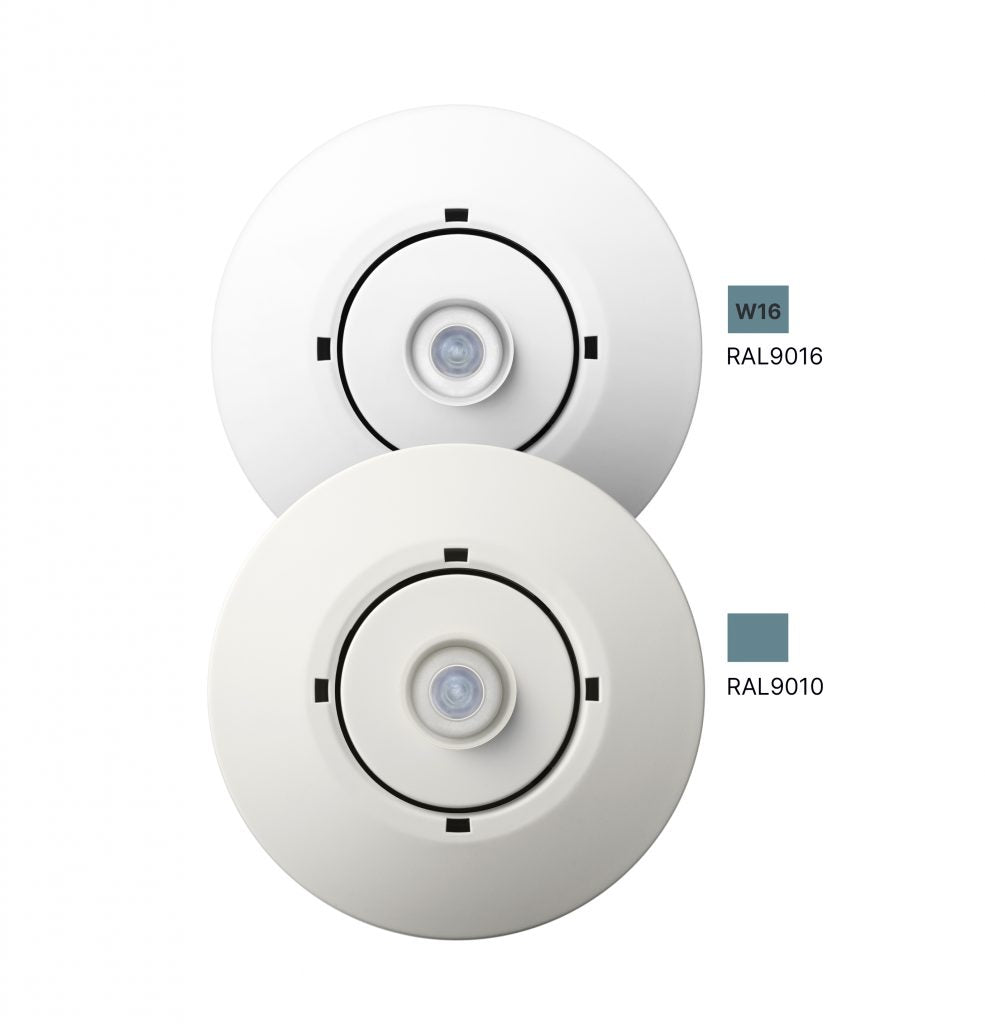

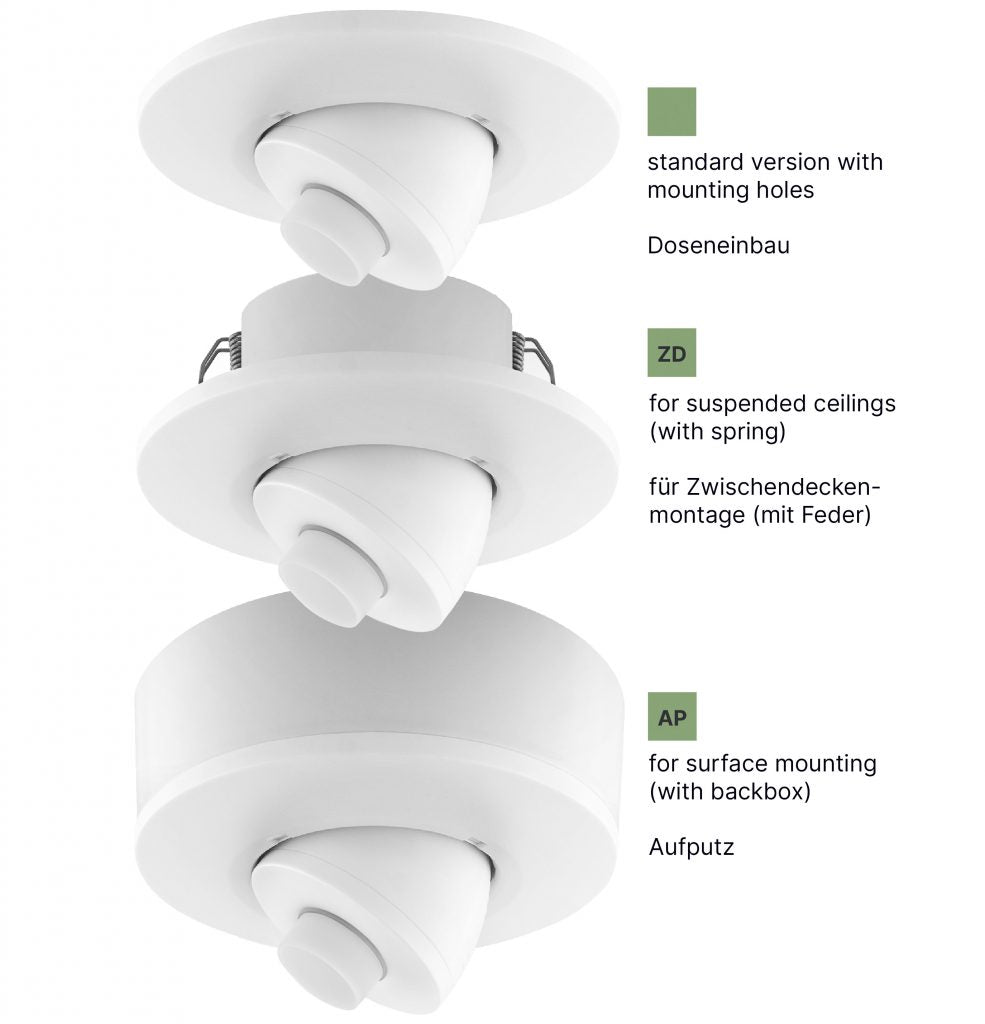

DALI-2 LS is available in three different housings: for direct mounting on cavity walls or installation boxes (standard), for suspended ceilings (with spring), or for surface mounting (with backbox). Available housing colours are pure white RAL 9010 and traffic white RAL 9016 (-W16).

Factory setting: Application Controller – Master Mode, constant light control, target value 500lx, effective range: broadcast

Specifications

Technical data

Ambient temperature -20°C to +70°C
Protection class IP20
Connection wire cross section Max. 1.5mm²
Mounting Depending on version


Electrical data

Supply From DALI Bus
Input/Output
DALI
Current consumption
3.5mA
Measuring range
0-2500lux / resolution 1 lux


Function

Device type Sensor
Constant lighting control
Yes
Multi-master capable Yes
Configurable via DALI Cockpit Yes

Dimensions

Length Depending on version
Width
Depending on version
Height
Depending on version
Colour White RAL9010 or white RAL9016
