Lunatone DALI 4Net
Couldn't load pickup availability
The price shown is excluding VAT. If VAT is applicable, it will be calculated at checkout based on the shipment address.
Need help, call 01444 246 128

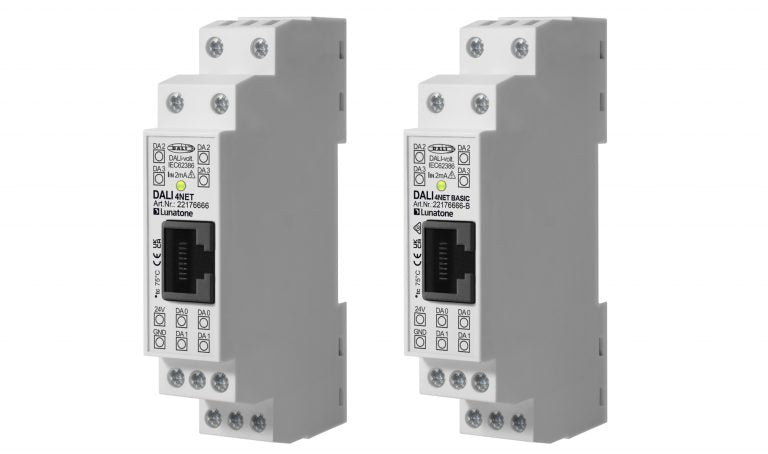

Lunatone DALI 4Net - This compact 1HP DIN rail module enables the independent control of up to 4 DALI lines, which equals 256 DALI operating devices. Efficient scaling is possible with external DALI bus supplies. Via the DALI4Net connected control devices and control gear can be configured via Ethernet with the DALI Cockpit Software. Using the Modbus TCP interface the DALI 4Net can be accessed for control and visualisation or connected to a building control system. Further functions are: cross line control functions for sensors, real time clock, scheduler.
Power supply for DALI 4Net can be found here!
Specifications
Technical data
| Ambient temperature | -20°C to +60°C |
| Protection class | IP20 |
| Connection wire cross section | Max. 2.5mm² |
| Mounting | DIN Rail |
Electrical data
| Supply | 24V DC |
| Ethernet | 1 x Ethernet 10/100Base-T, electrically isolated, isolation voltage 1500VAC, RJ45-connector |
| DALI |
4 x DALI, electrically isolated
|
| Current consumption | 90mA |
Dimensions
| Length | 98mm |
| Width |
17.5mm |
| Height |
56mm |
| Colour | Grey |
