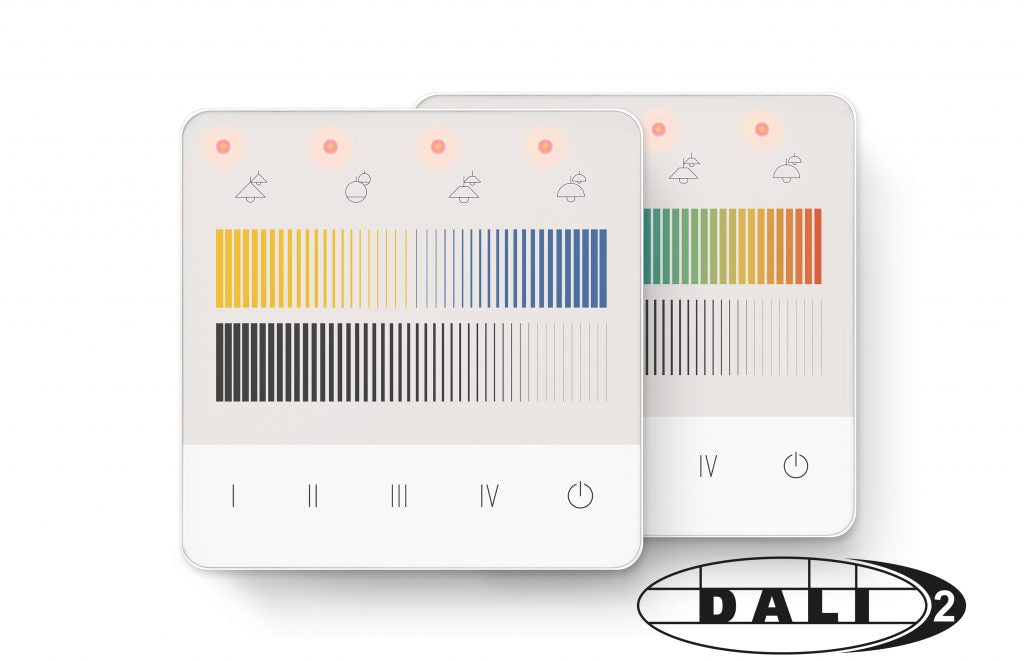

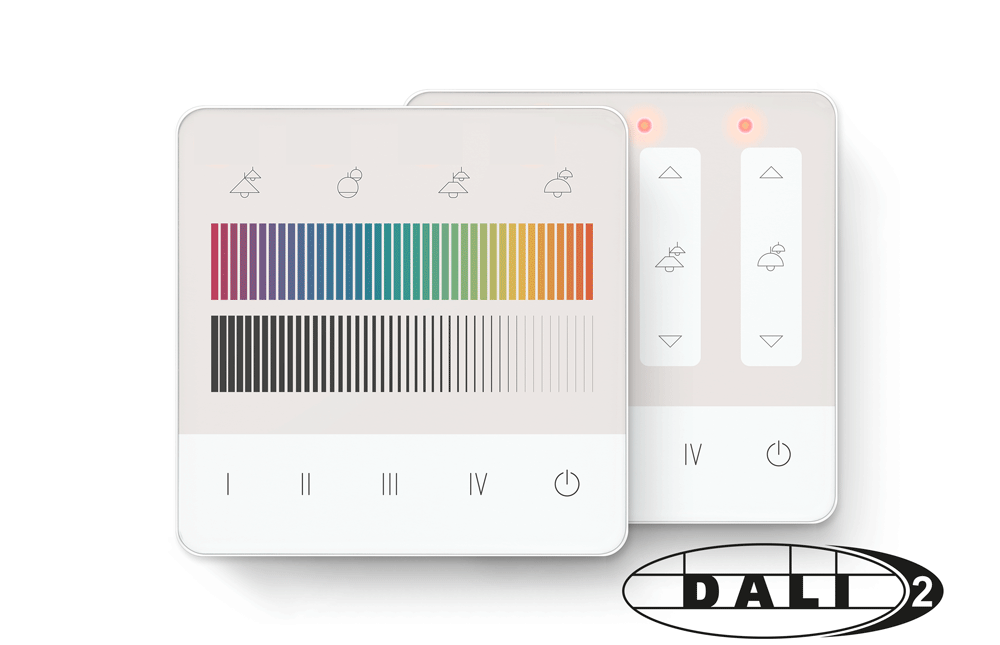

The Lunatone DALI-2 Touchpanel 04 with 4 LED's to indicate selected groups or scenes.

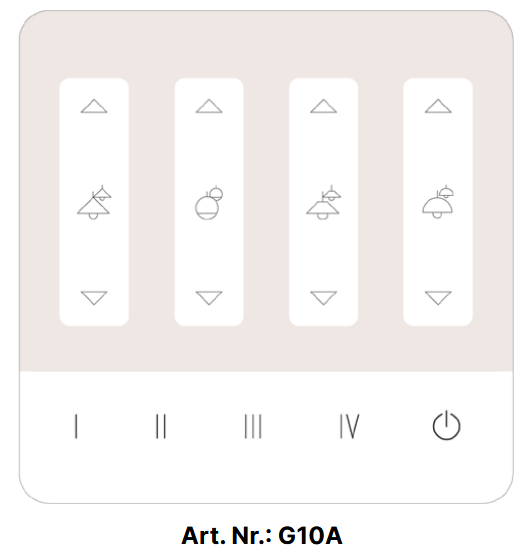

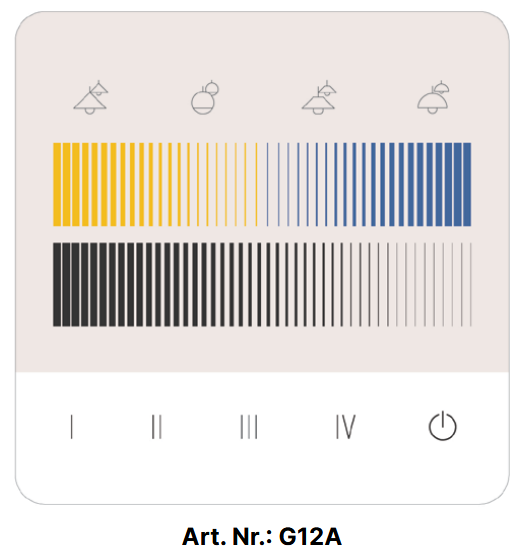

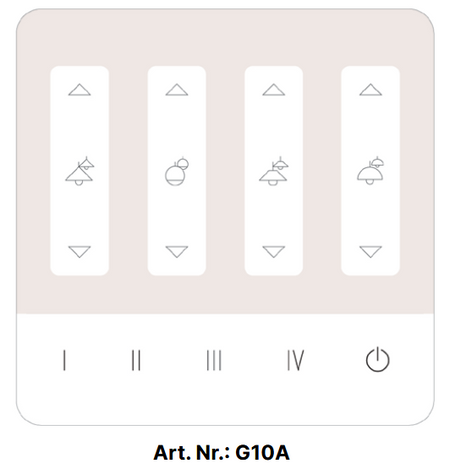

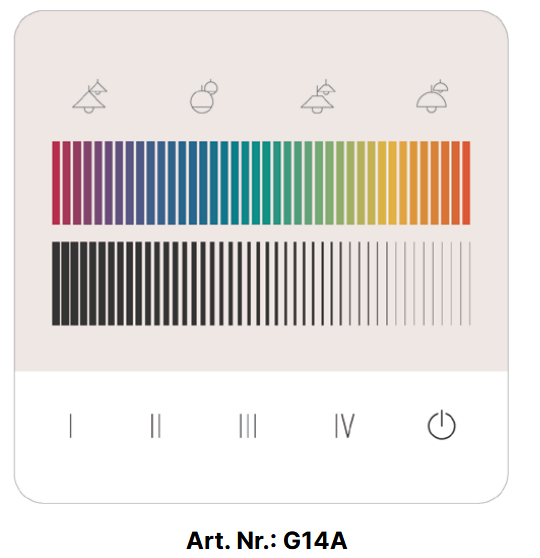

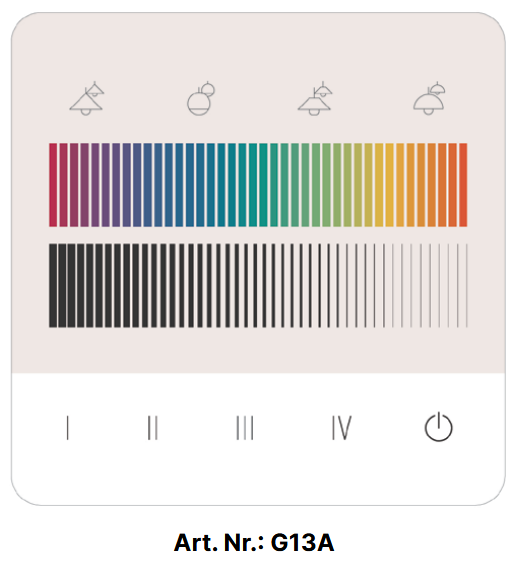

The DALI-2 Touchpanel 04 is a multifunctional control unit with up to 16 freely configurable buttons. The number of keys and the assigned DALI commands can be set in the DALI Cockpit Software. The device can be adapted to a wide variety of applications. A large number of layouts are available and custom layouts can be realised upon request.
Besides the standard functions, dimming, switching, scene recall, etc., predefined macros such as setting the colour temperature, dynamic scenes and sequences, as well as user defined command lists are supported.
Specifications
Technical data
Ambient temperature
-20°C to +45°C
Protection class
IP40/IP20
Connection wire cross section
Max. 1.5mm²
Mounting
On back box
Electrical data
Supply
From DALI Bus
Typical current consumption DALI (16,5V)
2mA
Output type
DALI, DALI-2, Multimaster, supply
Function
Device type
Multifunctional control module
Multi-master capable
Yes
Configurable via DALI cockpit
Yes
Dimensions
Length
87.7mm
Width
87.7mm
Height
16.5mm
Colour
Touch-interface: glass, frame: plastic white (other colors available on request)
