Lunatone DALI-2 Touchpanel
Couldn't load pickup availability
The price shown is excluding VAT. If VAT is applicable, it will be calculated at checkout based on the shipment address.
Need help, call 01444 246 128
The Lunatone DALI-2 Touchpanel is a multifunctional control unit with up to 16 freely configurable buttons. The number of keys and the assigned DALI commands can be set in the DALI Cockpit Software. The device can be adapted to a wide variety of applications. A large number of layouts are available and custom layouts can be realised upon request.
Besides the standard functions, dimming, switching, scene recall, etc., predefined macros such as setting the colour temperature, dynamic scenes and sequences, as well as user defined command lists are supported.

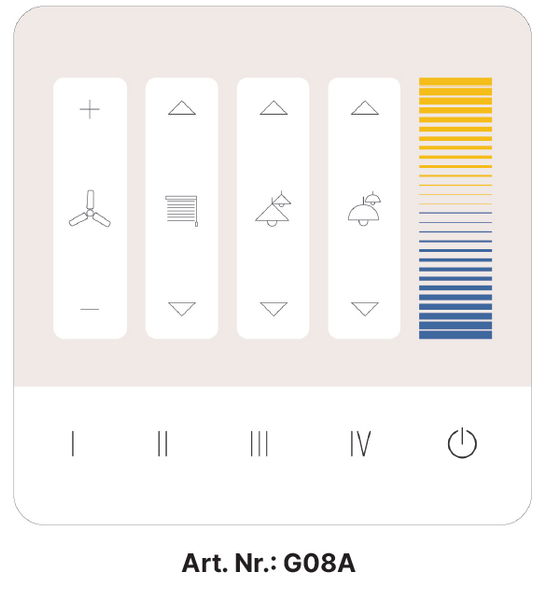

Touch panel layout options can be viewed in more detail via the downloads section.
Option G000 provides the device with no printed layout option so you can create your own layout. Template is available upon request.
Specifications
Technical data
| Ambient temperature | -20°C to +75°C |
| Protection class | IP40/IP20 |
| Connection wire cross section | Max. 1.5mm² |
| Mounting | On back box |
Electrical data
| Supply | From DALI Bus |
| Typical current consumption DALI (16,5V) |
2mA |
| Output type | DALI, DALI-2, Multimaster, supply |
Function
| Device type | Multifunctional control module |
| Multi-master capable |
Yes |
| Configurable via DALI cockpit |
Yes |
Dimensions
| Length | 87.7mm |
| Width |
87.7mm |
| Height |
16.5mm |
| Colour | White Others on request |
