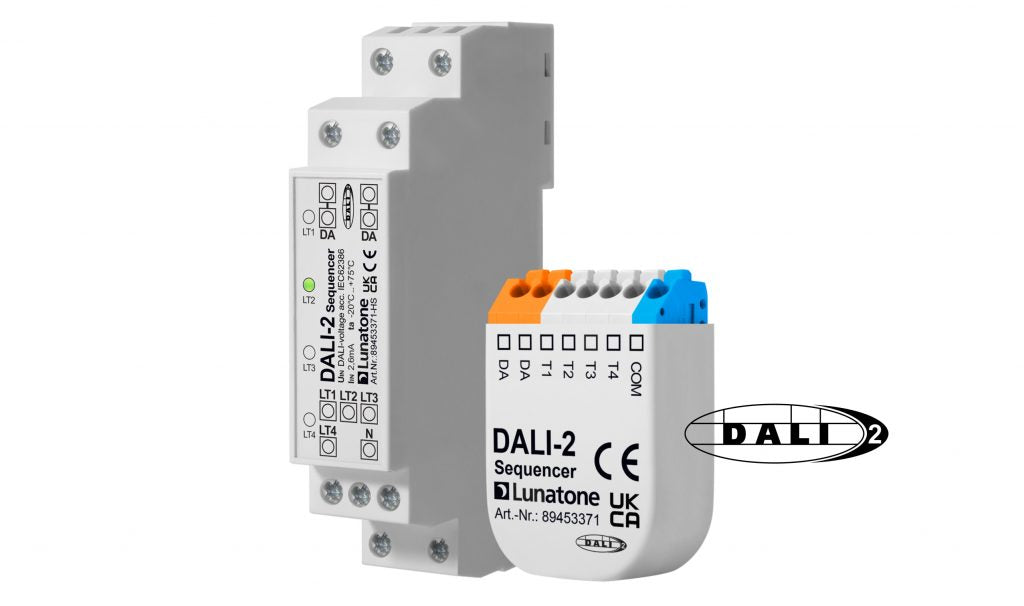

Lunatone DALI-2 Sequencer is a control unit to recall automatically timed instruction sequences. A sequence can combine various command-sequences and scene- recalls. 4 different sequences can be defined. The active sequence is started and stopped using DALI commands. Sequences can be executed once or looped. Housings for DIN Rail mounting and back box installation are available.

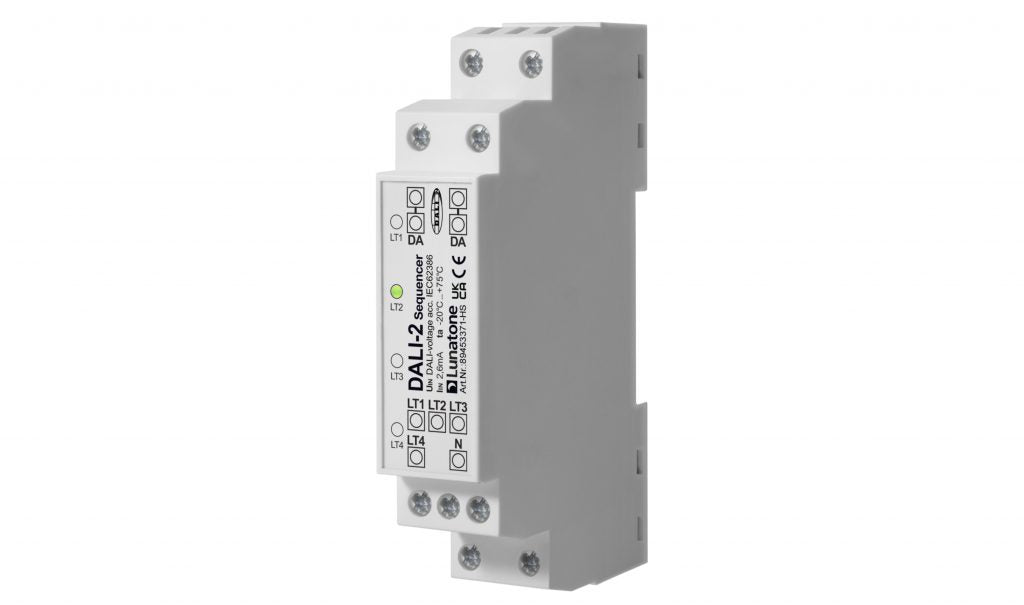

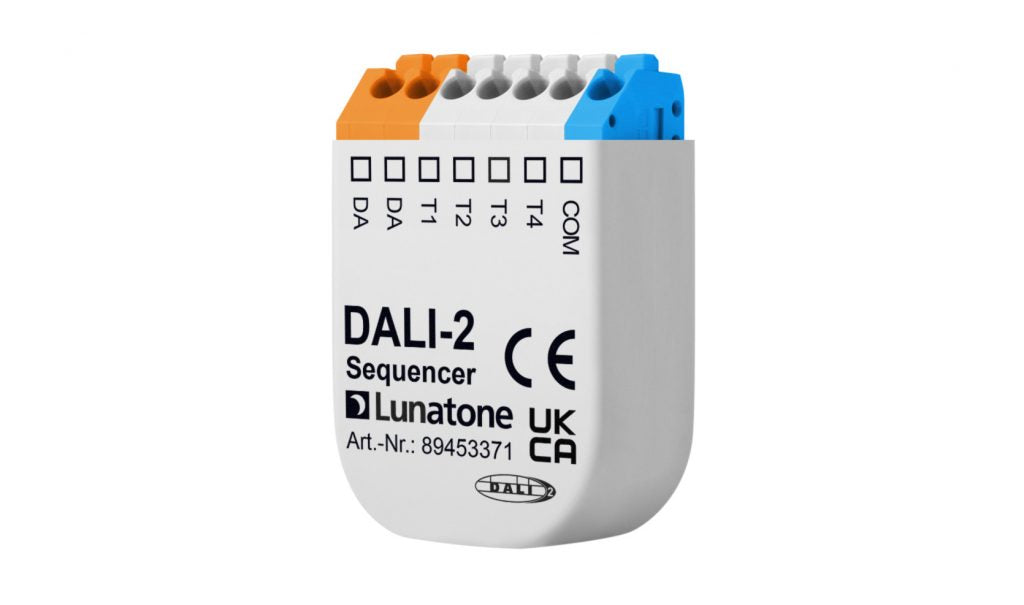

The back box version provides 4 potential free inputs to start the sequences. The DIN Rail type provides 4 switching inputs for mains voltage to start the sequences, and 4 LEDs to indicate active sequences.
Easy configuration via DALI-Cockpit PC Software.
Technical data
| Ambient temperature |
-20°C to +75°C |
| Protection class | IP20 |
| Connection wire cross section | Max. 1.5mm²/2.5 mm² at DIN rail (depending on version) |
| Mounting | Back box/DIN rail (depending on version) |
Electrical data
| Supply |
From DALI bus |
| Input voltage range 89453371 | sole connection with COM |
| Input voltage range 89453371-HS | 230V AC |
| Input type 89453371 | 4 potential free switching inputs |
| Input type 89453371-HS | 4 switching inputs for mains voltage |
| Output type | DALI, DALI-2, Multimaster, power supply |
| Max. cable length 89453371 | 50cm (or more, depending on interference of environment) |
| Max. cable length 89453371-HS | 10m (up to 50m in an interference-free environment i.e. no parallel power lines) |
| Current consumption DALI (16,5V) | 1,7 mA |
| Device type |
Control device |
| Multi-master capable |
Yes |
| Configurable via DALI Cockpit | Yes |
| Length | 39.7mm ( 89453371) / 98mm (89453371-HS) |
| Width |
28mm ( 89453371) / 17.5mm (89453371-HS) |
| Height | 14mm ( 89453371) / 56mm (89453371-HS) |
| Colour | Gery |
