Lunatone DALI-2-RS232-PS240mA

In stock
SKU: 24166096-LU-PS-DE
Buy 10 or more Lunatone products to get 10% off. FOR LARGER ORDERS CONTACT US DIRECTLY FOR FURTHER DISCOUNTS
X
£209.88
Title
Estimated UK delivery 1 - 7 days

The price shown is excluding VAT. If VAT is applicable, it will be calculated at checkout based on the shipment address.

Need help, call 01444 246 128

Lunatone Module with serial interface to communicate with the DALI bus via RS232, with RJ45 plug and screw terminals. Allows e.g. the connection of a PLC to a DALI system via RS232 for bidirectional data transmission. Suitable for addressing, configuration, status queries and monitoring.

Specifications

Technical data

Ambient temperature -20°C to +60°C
Protection class IP20
Connection wire cross section Max. 2.5mm²
Connector RS232 Screw terminals (max. 2.5mm²)
Mounting Remote ceiling/DIN Rail


Electrical data

Supply
 230V
SCI protocol
RS232, 38400Baud, 8 Datenbits, kein Paritätsbit, 1 Stopbit (38400,8,n,1)
Max. power supply DALI 240mA

Function

Device type Interface

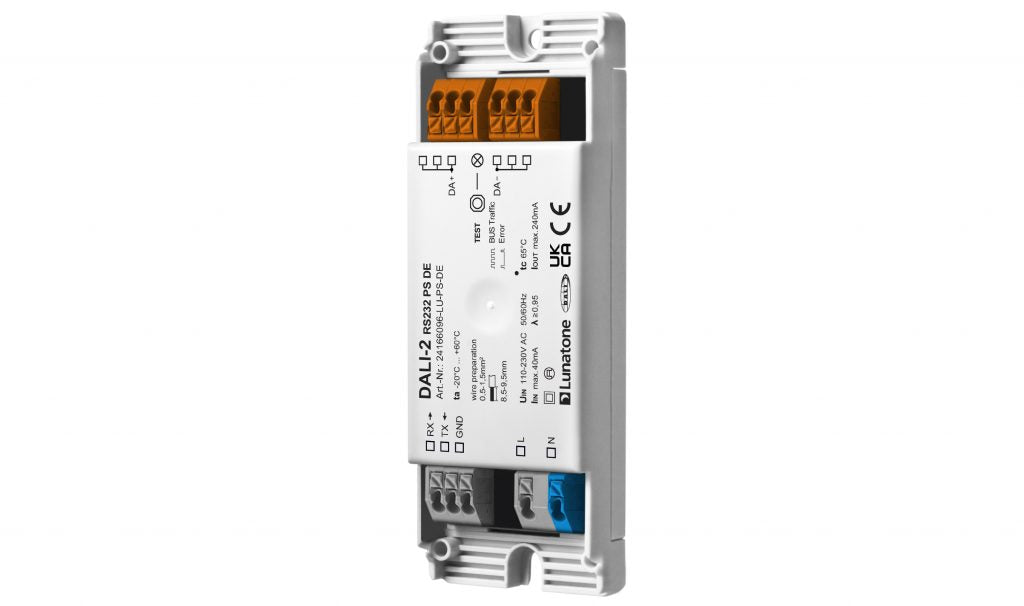

Dimensions- 24166096-PS-DE

Length 120mm
Width
 40mm
Depth
 22mm
Colour Grey

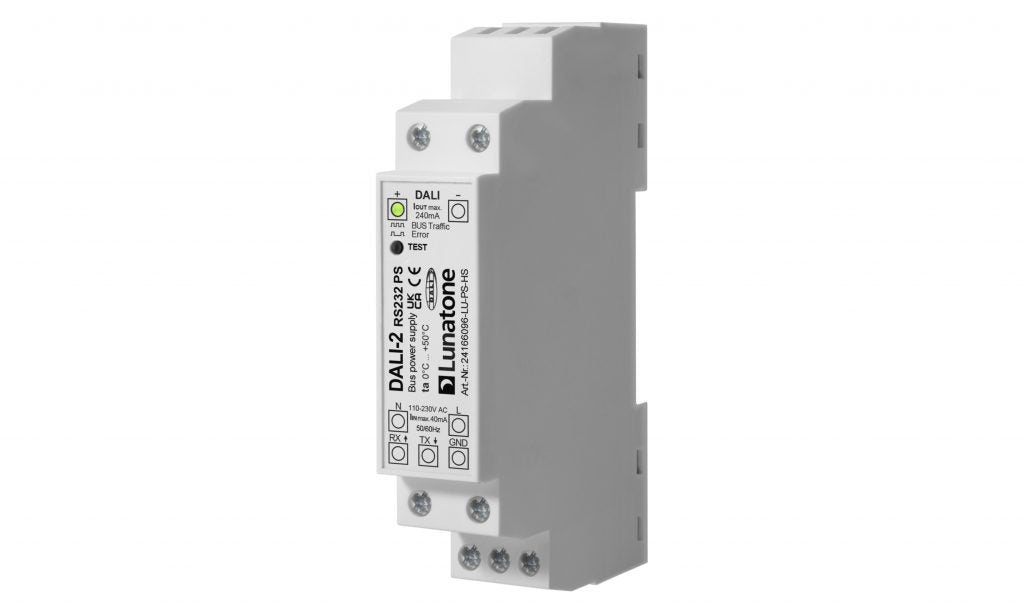

Dimensions-24166096-PS-HS

Length 98mm
Width
 18mm
Depth
 57mm
Colour Grey
