Lunatone DALI-2 Phase Cut Sensor

In stock
SKU: 86468411
Buy 10 or more Lunatone products to get 10% off. FOR LARGER ORDERS CONTACT US DIRECTLY FOR FURTHER DISCOUNTS
X
£72.73
Title
Estimated UK delivery 1 - 7 days

The price shown is excluding VAT. If VAT is applicable, it will be calculated at checkout based on the shipment address.

Need help, call 01444 246 128

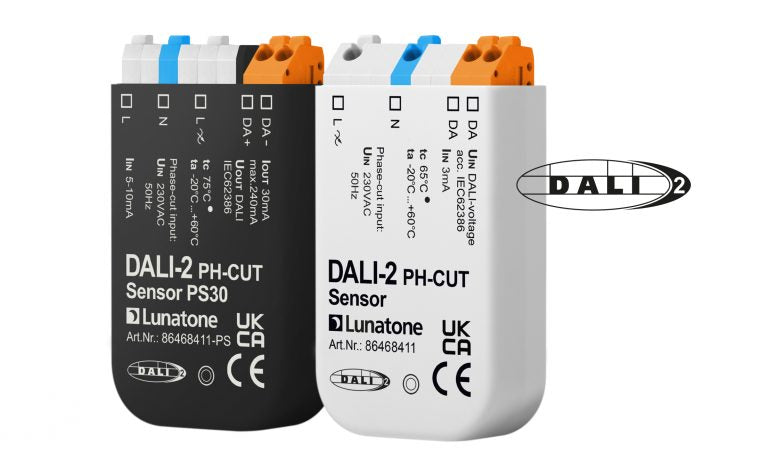

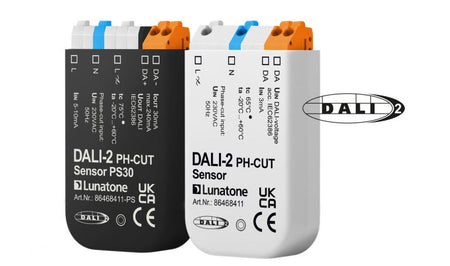

Lunatone compact interface module converts 0–230V PhaseCut control signals into DALI dim levels. The incoming 0–230V voltage is broadcasted as a dimming value to the DALI subnet.

Changes in the input voltage greater than 1% serve as event triggers. A minimum load is required for operation of the control device.

The version with integrated DALI Power Supply (Art. Nr. 86468411-PS), provides 30mA for the subnet (up to 10 DALI ballasts).

Expansion to up to 64 loads is possible using a DALI Expander.

Specifications



Technical data

Ambient temperature -20°C to +60°C
Protection class IP20/IP40
Connection wire cross section Max. 1.5mm²
Mounting Back box, installation box


Electrical data

Input L,N(only Art.Nr.: 86468411-PS)
Supply, mains voltage L, N
Input voltage range 210Vac … 250Vac
Input supply frequency 50-60Hz
Max. power consumption 2 Watt
DALI output Art.Nr.: 86468411
Output type DALI control: DA, DA
Typ. current consumption 3mA
DALI output Art.Nr.: 86468411-PS
Output type DALI control and DALI power supply 30mA: DA+, DA-
Output voltage range 12,0Vdc ... 20,5Vdc according to IEC62386
Guaranteed DALI supply current 30mA
Max DALI supply current 250mA


Function

Device type
 Interface for converting 0-230V control signals to DALI dim levels
Trigger Event Change in the input voltage signal (>1%)
Configurable with DALI Cockpit PC Software Yes

Dimensions

Length 59mm
Width
 33mm
Height
 15mm
Colour Grey
