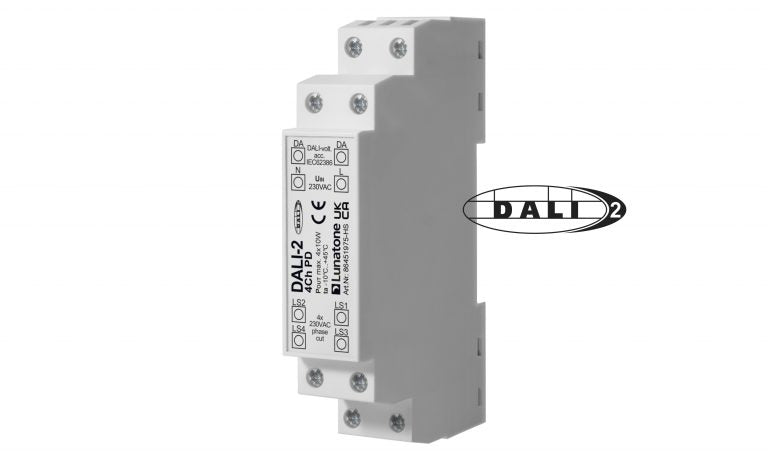

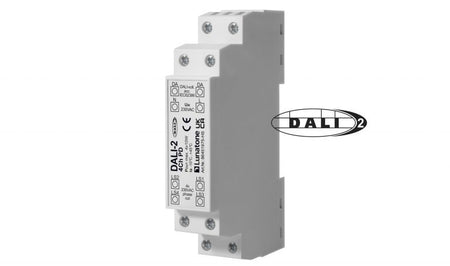

Lunatone 86451975 HS DALI-2 4CH PD
Lunatone 86451975 HS DALI-2 4CH PD
Lunatone

Lunatone DALI-2 4Ch PD

In stock
SKU: 86451975-HS
Buy 10 or more Lunatone products to get 10% off. FOR LARGER ORDERS CONTACT US DIRECTLY FOR FURTHER DISCOUNTS
X
£158.18
Title
Estimated UK delivery 1 - 7 days

The price shown is excluding VAT. If VAT is applicable, it will be calculated at checkout based on the shipment address.

Need help, call 01444 246 128

Lunatone Phase dimmer with DALI input to control dimmable 230V luminaires in a DALI system. The 4 channel phase dimmer is suitable for 4x10W loads. Each channel has its own DALI address. Leading edge or trailing edge can be set with the software tool DALI Cockpit. The DALI-2 4Ch PD also supports the operating mode as a DALI controlled electronic switch. The DIN rail housing is suitable for installation in control cabinets.

Specifications

Technical data

Ambient temperature -20°C to +45°C
Protection class IP20/IP40
Connection wire cross section Max. 2.5mm²
Mounting DIN Rail


Electrical data

Input mains L, N
Input voltage range 230V AC
DALI control input DA, DA
Max. current consumption DALI
4mA
Number of DALI addresses
4
Output trailing/leading edge phase cut of mains
LS1, LS2, LS3, LS4, N
Output voltage range 0 to 230VAC


Function

Device type
 4 Channel Phase dimmer
Configurable via DALI Cockpit Yes

Dimensions

Length
98mm
Width
 17.5mm
Height
 56mm
Colour Grey
