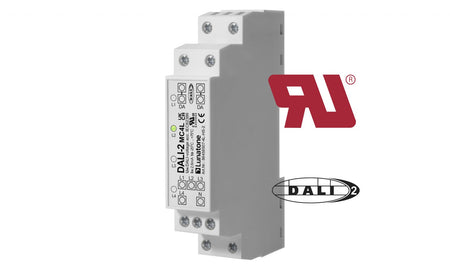

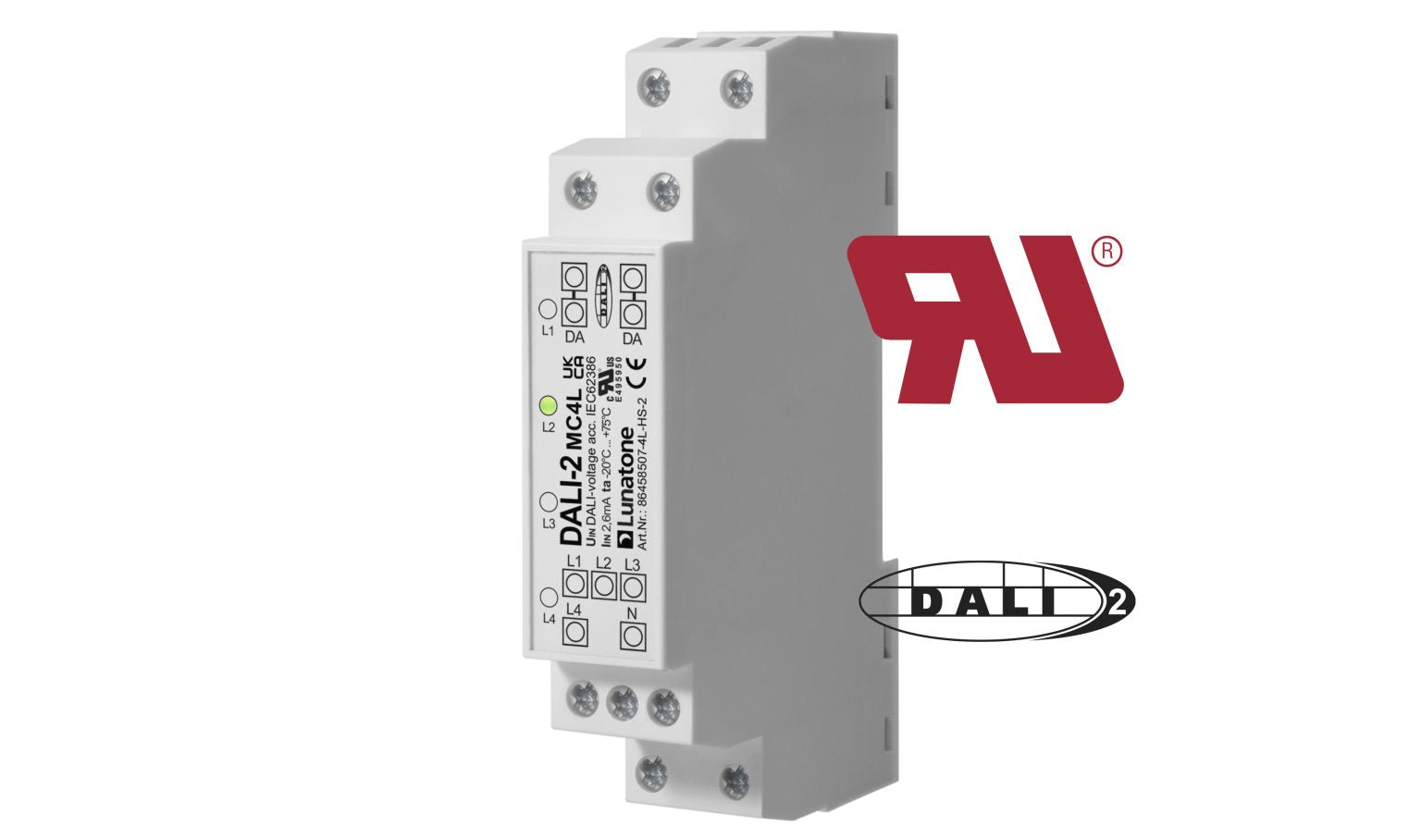

Lunatone DALI-2 MC4L- DIN Rail

Lunatone DALI-2 MC4L- DIN Rail

Lunatone

£83.18

Shipping calculated at checkout.

Lunatone DALI2 MC4L Din Rail Interface with 4, from the DALI bus galvanically isolated, inputs for mains voltage. Each input can be individually configured with target address, button behaviour and DALI commands. Besides the standard functions, dimming, switching, scene recall, etc., predefined macros such as setting the colour temperature, dynamic scenes and sequences as well as user defined command lists are supported. Suitable for DIN rail mounting.

With variant 86458507-4L-HS-2-app, the application controller is activated. In addition to the standard DALI commands, the DALI DT8 TC and RGB (W) control is also supported. The device can also be set to instance mode with the DALI Cockpit PC Software.

The variant 86458507-4L-HS-2-int is set to instance mode (no direct DALI control commands) for integration into higher-level building management systems from e.g. WAGO, Beckhoff. The application controller can be activated with the DALI Cockpit PC Software.

Specifications

Technical data

Ambient temperature
-20°C to +75°C
Protection class IP20
Connection wire cross section
Max. 2.5mm²
Mounting Din rail


Electrical data

Supply From DALI Bus
Current consumption
 1,7 mA
Input
 4 switching inputs
Output DALI, DALI-2, multi master, power supply

Function

Device type Push button coupler
Multi-master capable
 Yes
Configurable via DALI Cockpit
 Yes

Dimensions

Length 98mm
Width
 17.5mm
Height
 56mm
Colour Grey
