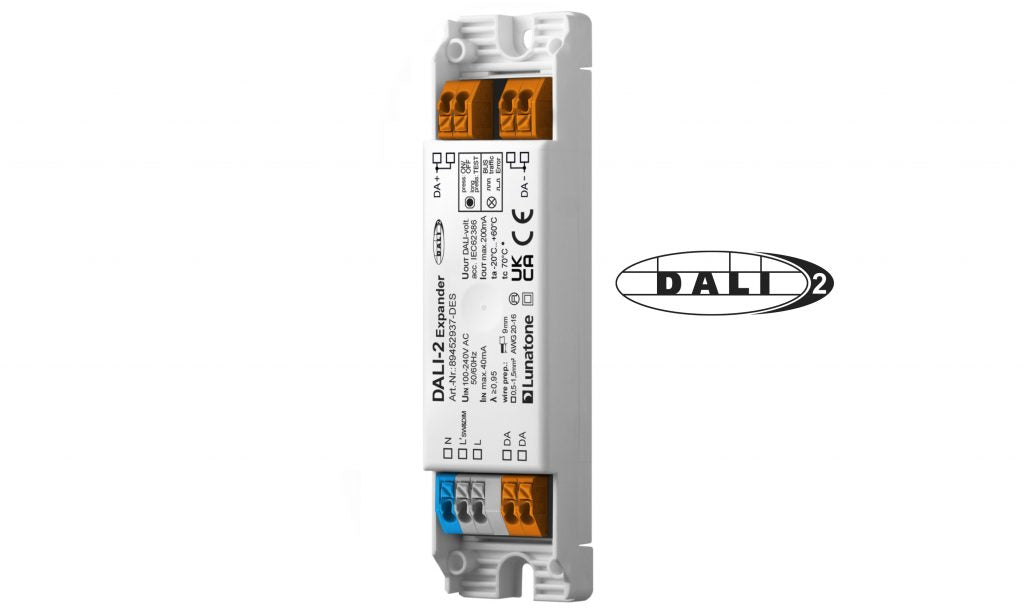

Lunatone DALI-2 Expander
Regular price
£145.66
Estimated UK delivery 1 - 7 days
Couldn't load pickup availability
The price shown is excluding VAT. If VAT is applicable, it will be calculated at checkout based on the shipment address.
Need help, call 01444 246 128
With the Lunatone DALI-2 Expander a new DALI sub-line can be created and supplied with power and information. The connected devices within the DALI sub-line can be controlled broadcast via the address of the DALI Expander. Alternatively, the DALI sub-line can be controlled directly with Switch&Dim inputs. The DALI Expander has an integrated DALI bus supply (200mA) for up to 90 DALI devices in the DALI sub-line. The amount of DALI units as well as the line length (up to 300m) can be increased using the DALI Expander.
Specifications
Technical data
| Ambient temperature | -20°C to +60°C |
| Protection class | IP20 |
| Mounting | remote ceiling |
Electrical data
| Input voltage range | 100V-240V AC |
| Guaranteed DALI supply current |
200 mA (DALI) |
| Max. current consumption DALI |
2 mA (DALI) |
| Input | DALI |
| Output | DALI |
Function
| Device type |
System extension |
Dimensions
| Length | 120mm |
| Width |
30mm |
| Height |
22mm |
| Colour | Grey |
