Lunatone DALI-2 Display 4"

Lunatone

Regular price £227.27

Shipping calculated at checkout.

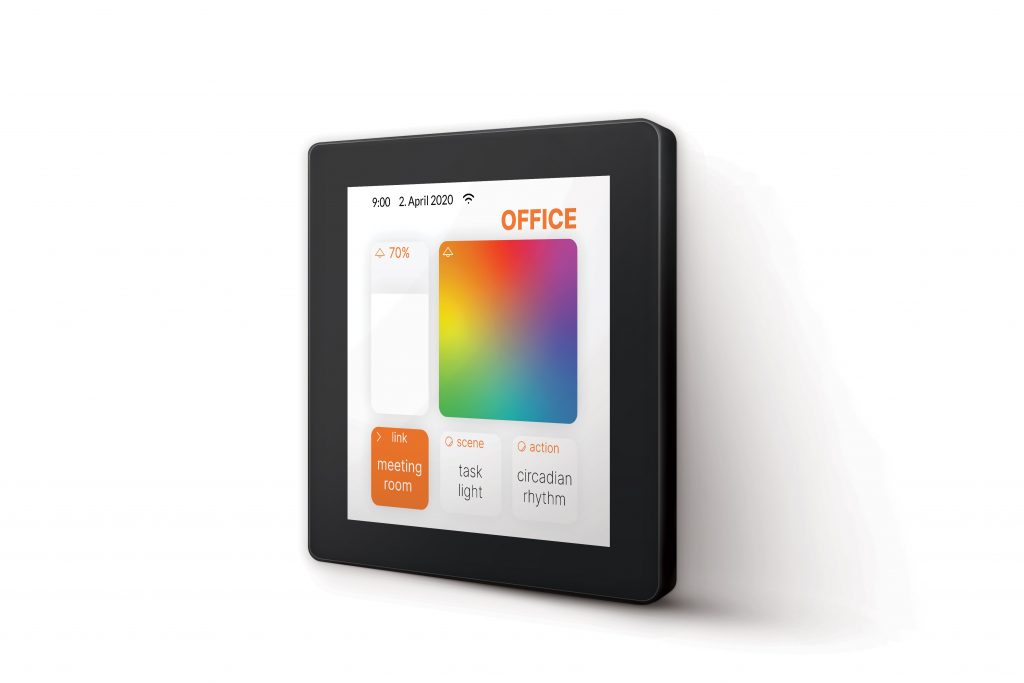

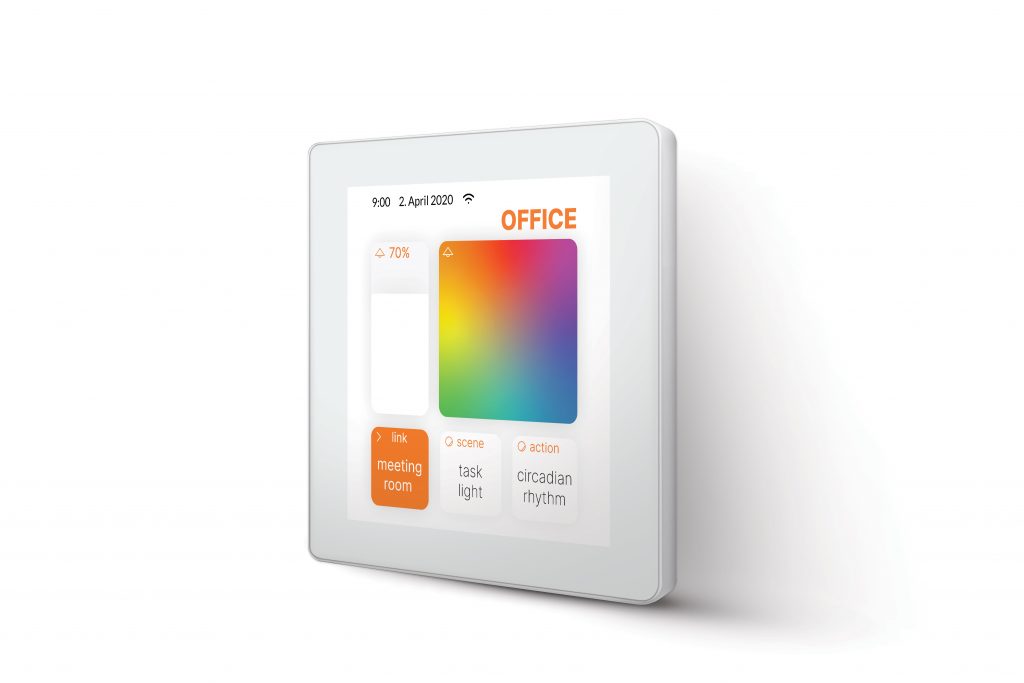

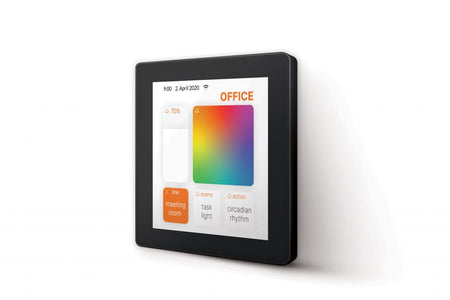

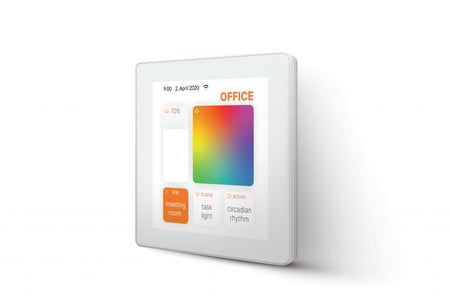

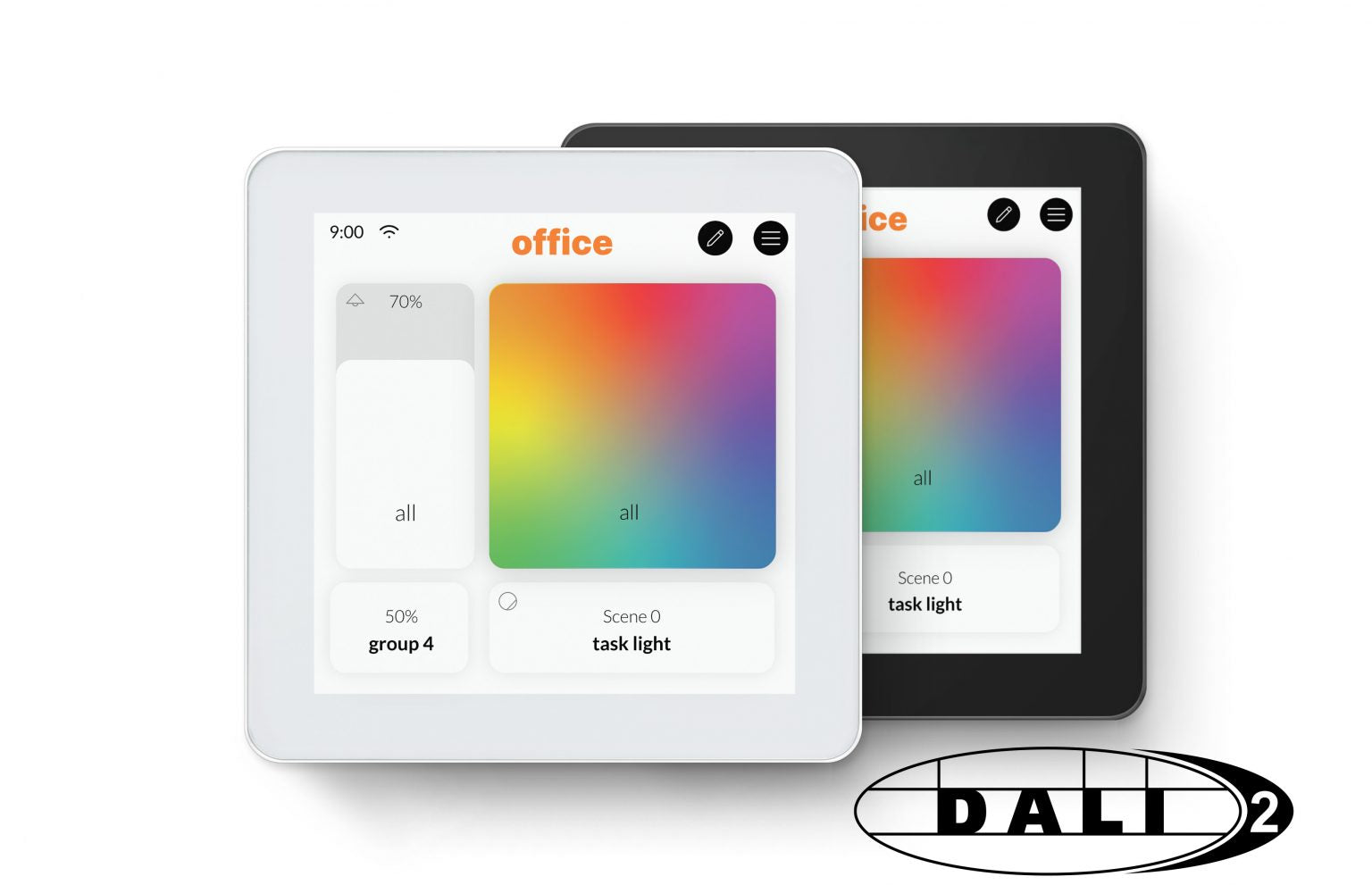

The capacitive Lunatone 4” colour display with 24-bit colour depth allows both the configuration, as well as the control and operation of a DALI system. Numerous widgets enable customisation. Supported functions are dimming and switching of groups, recall of scenes, RGB colour management and colour temperature control, etc. DALI and WLAN are available as interfaces. The measurement of temperature, humidity, air pressure, air quality etc. is also possible via integrated sensors.

Specifications

Technical data

Ambient temperature -10°C to +50°C
Protection class IP20
Connection wire cross section Max. 1.5mm²
Mounting On back box


Electrical data

Supply 24-56V DC
Current  consumption
3W

Function

Device type DALI-2 Control and operating unit
Multi-master capable
Yes
Interface
DALI

Dimensions

Length 88mm
Width
88mm
Height
8.5mm
Colour White / Black
