Lunatone DALI-2 Cross Switch
Couldn't load pickup availability
The price shown is excluding VAT. If VAT is applicable, it will be calculated at checkout based on the shipment address.
Need help, call 01444 246 128

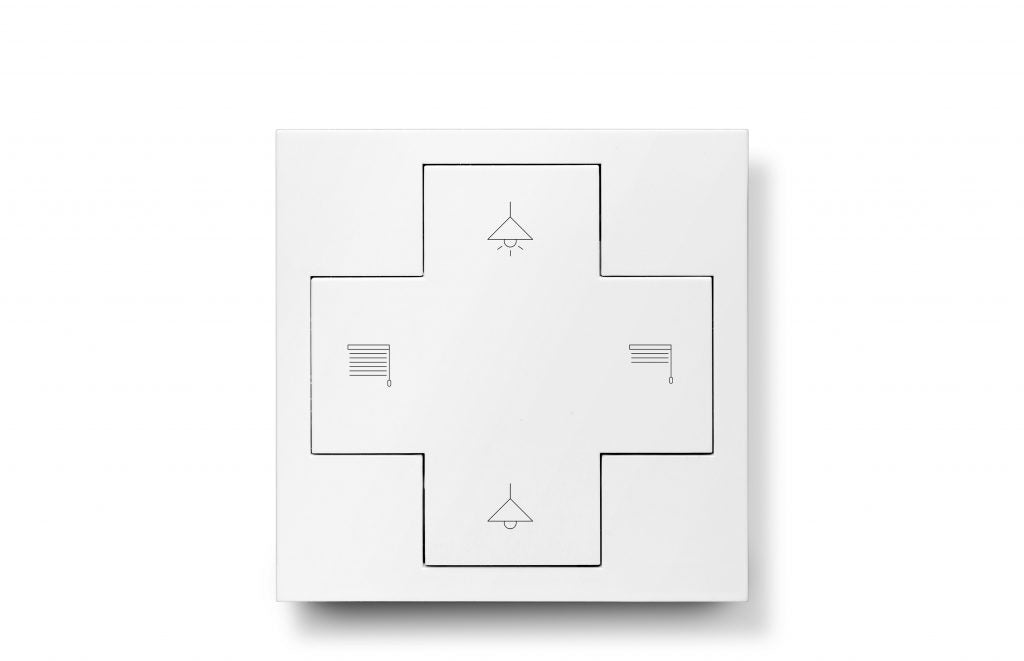

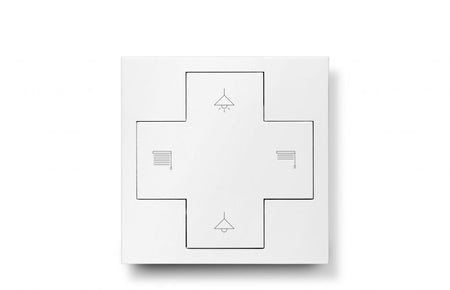

Lunatone Push button module with four programmable buttons. With the DALI Cockpit Software, as well as an NFC-ready smartphone and the Lunatone NFC app, each button can be individually configured with target address, button behaviour and DALI commands. Besides the standard functions, dimming, switching, scene recall, etc., predefined macros such as setting the colour temperature, dynamic scenes and sequences as well as user defined command lists are supported. The devices can be ordered with predefined or custom symbols. The devices support DALI-2 and can be set to “Instance Mode”, enabling the communication with higher-level building management systems, such as WAGO, Beckhoff etc.

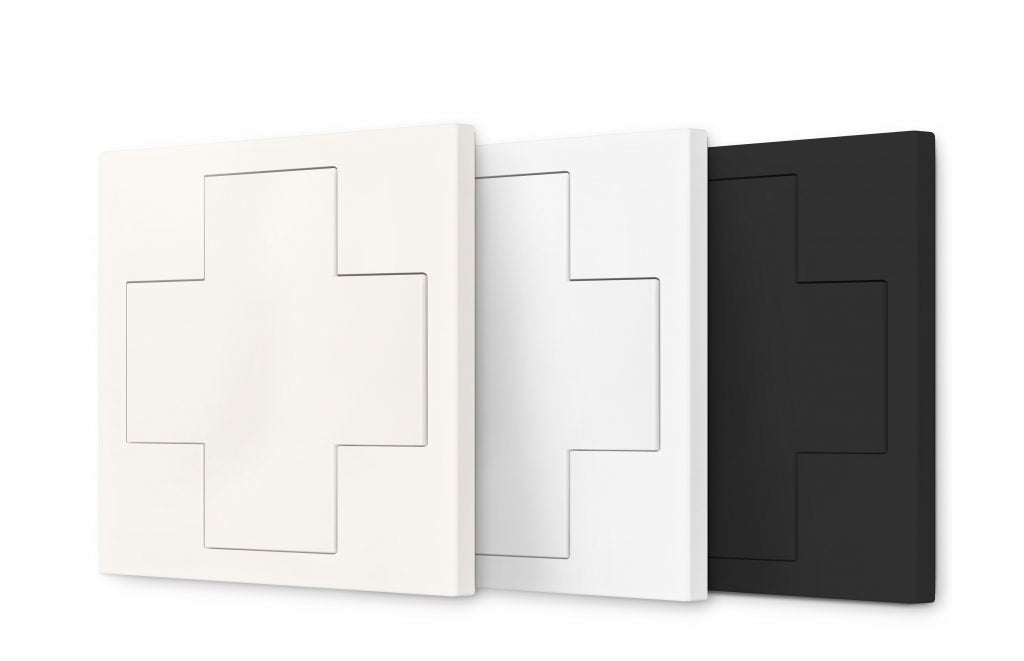

Image (from left to right): RAL9010 ; RAL9016 ; black
Specifications
Technical data
| Ambient temperature | 0°C bis +50°C |
| Protection class | IP20 |
| connection wire cross section | max. 2.5mm² |
| Mounting | wall mounting |
Electrical data
| Supply | from DALI bus |
| Control input |
4 integrated buttons |
| Current consumption |
1.5mA |
| Output | DALI, DALI2, Multimaster |
Function
| Device type | Control device |
| Power-on behaviour |
Configurable |
| Multi-master capable |
Yes |
| Programmable functions | Yes |
Dimensions
| Length | 82mm |
| Width |
82mm |
| Height |
8.5mm |
| Colour | white RAL9010/white RAL 9016/black (depending on version) |
