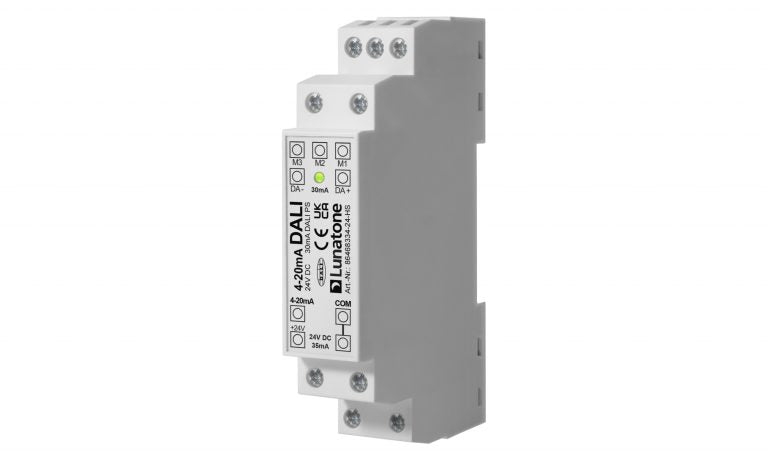

Lunatone 4-20mA to DALI Converter, 24V
Regular price
£75.45
Estimated UK delivery 1 - 7 days
Couldn't load pickup availability
The price shown is excluding VAT. If VAT is applicable, it will be calculated at checkout based on the shipment address.
Need help, call 01444 246 128
Lunatone compact module converts 4-20mA signals to DALI dim levels. The 4-20mA current value is sent Broadcast as a dimming value on the DALI bus.
The module has an integrated bus power supply for a small DALI system with up to 10 standard DALI ballasts (30mA).
The configuration of the dimming characteristics is possible with the help of jumpers. An additional configuration with the DALI Cockpit Software is not possible.
The interface module requires a 12- 24V power supply (e.g. 24V/300mA Art.Nr. 24166012-24HS)
Specifications
Technical data
| Ambient temperature | -20°C to +60°C |
| Protection class | IP20/IP40 |
| Connection wire cross section |
0.5-2.5 mm²
|
| Mounting | DIN Rail |
Electrical data
| Supply | 12V-24V, 35mA |
| Input 4-20mA | load 10Ohm |
| Current consumption |
4mA + current for DALI output |
| Output DALI | I max=30mA |
Function
| Device type |
Signal converter |
| Dimming characteristics | selection by setting jumpers |
Dimensions
| Length | 98mm |
| Width |
18mm |
| Height |
56mm |
| Colour | Grey |
