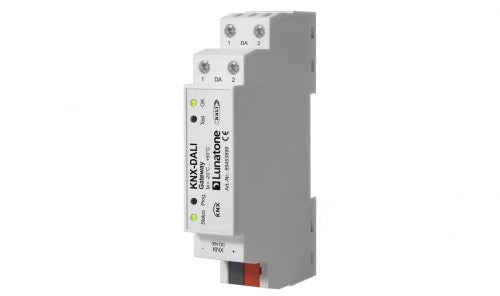

Lunatone KNX DALI-2 Gateway

Lunatone

Regular price £231.82

Shipping calculated at checkout.

The KNX DALI-2 Gateway is DALI-2 and KNX certified. It is DALI multimaster capable and can transmit commands bidirectional from KNX to DALI and vice versa. The DALI system and the individual DALI devices can be configured with the DALI Cockpit PC Software. Via the gateway’s product database in the KNX ETS Software the DALI devices can be matched with the respective data points and linked to the KNX components. All DALI device types (DT6, DT8-CW-WW, RGB, RGBW, RGBWAF, X-Y) are supported.

Specifications

Technical data

Ambient temperature -20°C to +60°C
Protection class IP20
Connection wire cross section Max. 2.5mm²
Connector RS232 Screw terminals (max. 2.5mm²)
Mounting DIN Rail


Electrical data- Input DALI

Supply
via DALI bus, max current consumption: 3mA
Input Voltage Range
10-22.5V



Electrical data- Input KNX

Input Voltage Range DC 12-32V SELV
Max. Input Supply Current
6mA
Max. power consumption
150mW



Function

Device type KNX to DALI and DALI to KNX Gateway
Multi-Master capable Yes

Dimensions

Length 98mm
Width
17.5mm
Depth
56mm
Colour Grey
