High Gain Antenna and 10m Cable
Couldn't load pickup availability
The price shown is excluding VAT. If VAT is applicable, it will be calculated at checkout based on the shipment address.
Need help, call 01444 246 128

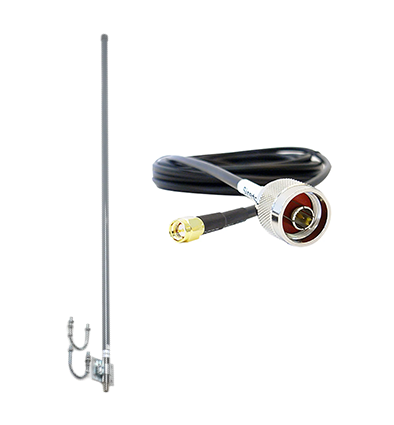

High gain antenna and 10m cable for use with our SIPslice LoRaWAN products and other applications requiring a high gain antenna and longer cable.

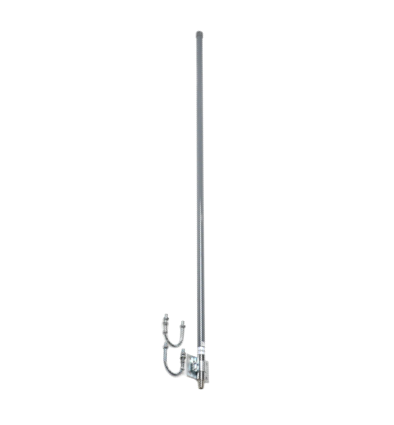

The 806MHz, 1200mm antenna has an omnidirectional rotational pattern. It can withstand a harsh environment. The gain of this antenna is 8dBi and the VSWR ratios are 1.5:1. This antenna has a horizontal beamwidth of 360° and a vertical beamwidth of 18°.
Feature
• Maximum input power is between 50 and100W
• Nominal impedance is 50ohms
• Reliable
• Rugged
• Standard N type female connector
• Vertical Polarisation
Certifications
• BS EN 61340-5-1:2007

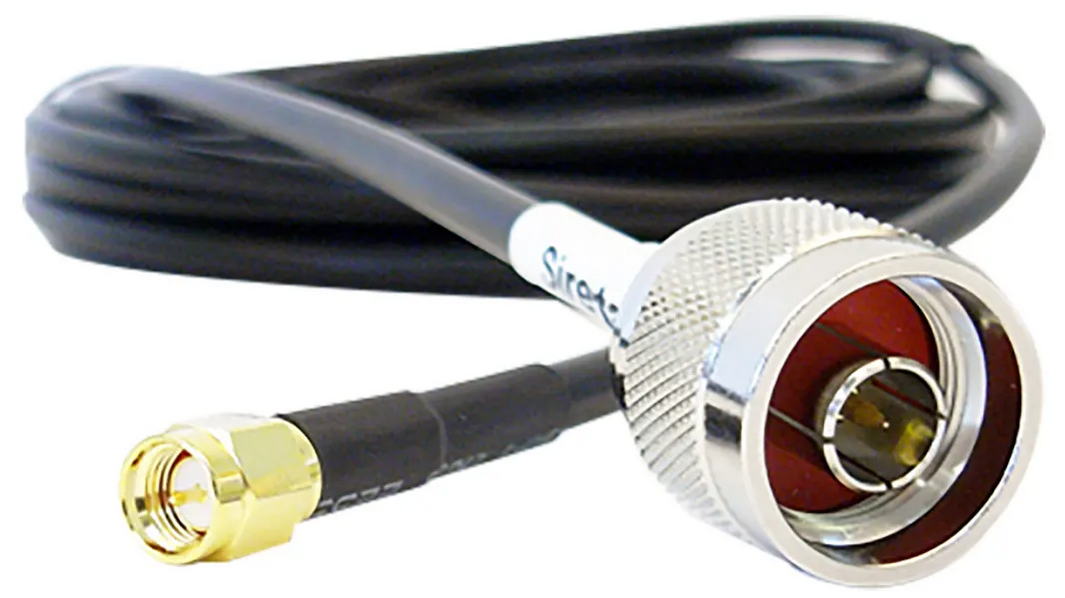

The 10m MA Male to N-Type Male LLC200A Coaxial cable has an SMA Male connector and an N-Type Male connector:
Cable Specifications
Impedance: 50 Ω
Loss dB/M @ 1.8 GHz: 0.52, @ 2.1 GHz: 0.64
Cable: LLC200A
Operating Frequencies: Up to 6 GHz
Dimensions
Core: 0.94 mm copper wire
Insulator: 2.79 mm GAS-FPE
Shield: tinned copper braid
Jacket: 4.95 mm PVC
