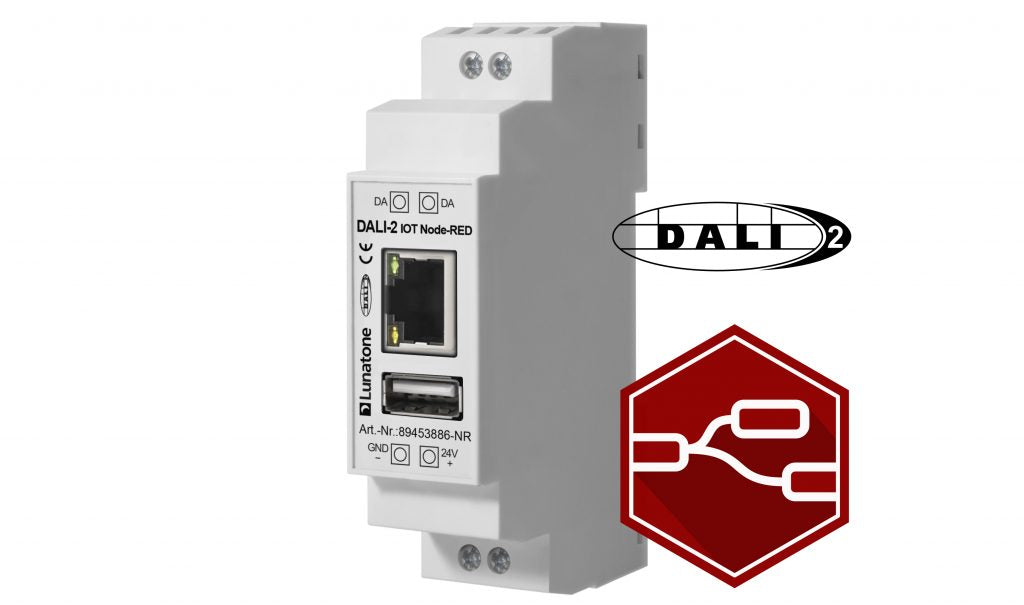

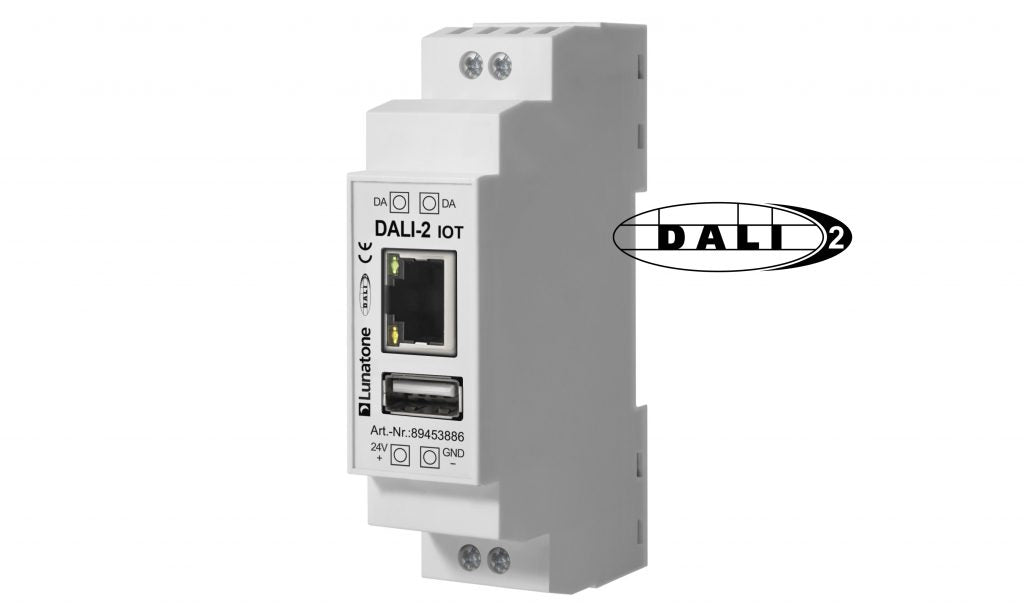

DALI-2 IoT Gateway

Lunatone

Regular price £435.12

Shipping calculated at checkout.

DALI-2 IoT Gateway is an interface to connect the DALI system with smart devices over the Internet of Things (IoT). With the DALI IoT Gateway, a simple realization of an intelligent system is possible, in which devices can be controlled and monitored with smartphones, PCs, etc. It is also possible to link several DALI lines. An API documentation is available, to enable energy monitoring, remote support, and many other applications. (RESTFul API endpoints and WebSocket with JSON syntax, encrypted (optionally unencrypted) for custom integrations).

Technical data

Ambient temperature -20°C to +60°C
Protection class IP20
Mounting Din Rail


Electrical data

Supply
24V DC
Typical power consumption
90mA
Ethernet
1 x Ethernet 10 / 100Base-T, galvanically separated, isolation voltage 1500V AC, RJ45 connector
DALI
1x DALI, galvanically isolated



Function

Device type
Central control device and interface between DALI-2 and LAN

Dimensions

Length 98 mm
Width
22.5 mm
Height
56 mm
Colour Grey

Downloads
