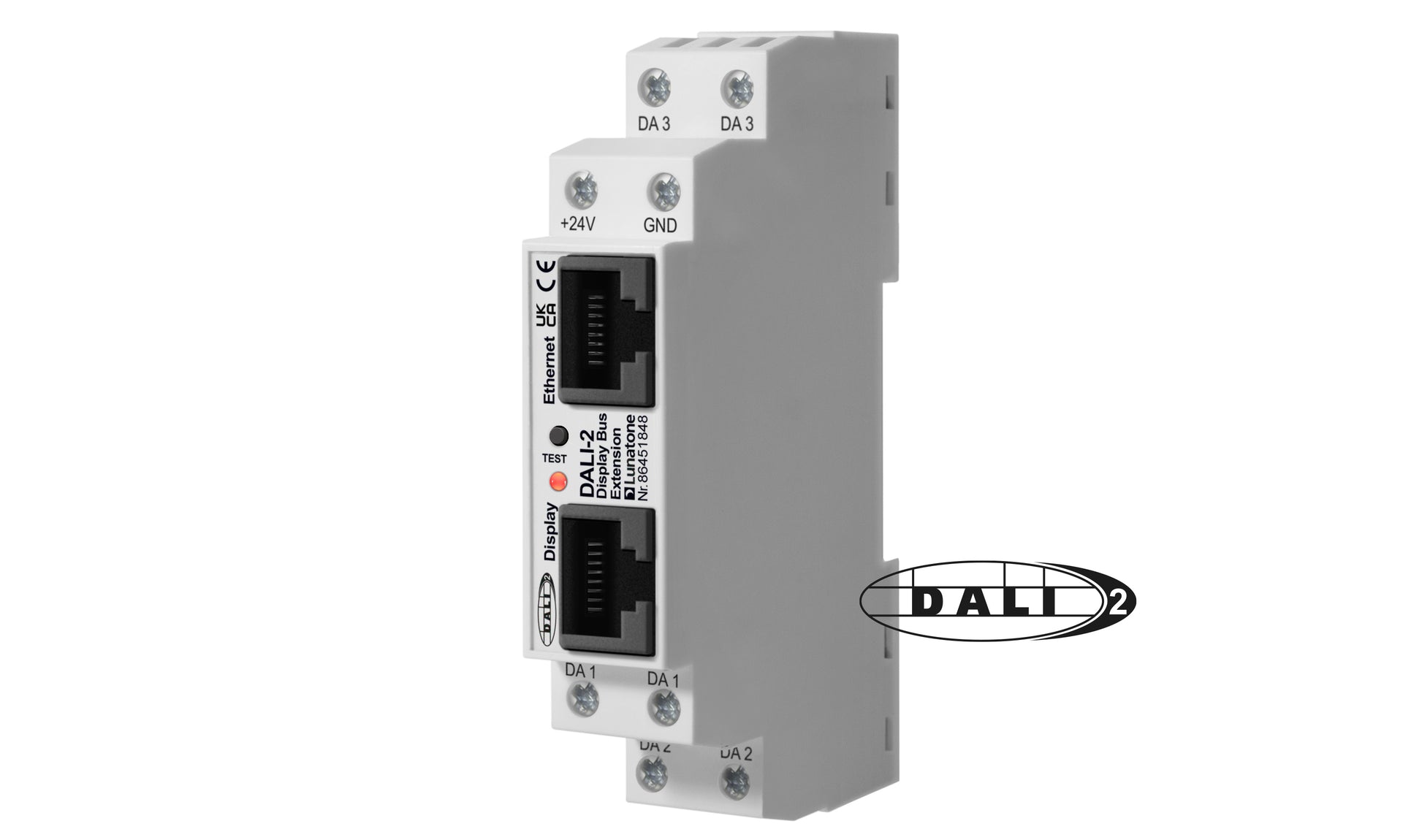

The module is used in combination with a DALI-2 Display 7” Plus or DALI-2 Display 7” Emergency. It allows a DALI system expansion with up to 3 additional DALI lines. The device has 2 Ethernet sockets for connecting the DALI-2 Display and the local network. Up to three DALI lines can be connected via terminals DA1, DA2 and DA3. The Display Bus Extension Module requires a 24V supply (suitable power supply unit: PS 24V, 300mA, Art. Nr.: 24166012-24HS). DIN rail housing suitable for installation in control cabinets.
Specifications
Technical data
Ambient temperature
-20°C to +60°C
Protection class
IP20
Mounting
Din Rail
Electrical data
Input voltage range
24V DC
Network socket - Display
Ethernet 10/100Base-T, electrically isolated, isolation voltage 1500VAC, RJ45-connector
Max. current consumption
90mA + POE
Input
DALI
Network socket - Ethernet
Ethernet 10/100Base-T, electrically isolated, isolation voltage 1500VAC, RJ45-connector
Function
Device type
DALI line extension in combination with DALI-2 Display 7"
Dimensions
Length
98 mm
Width
18 mm
Height
56 mm
Colour
Grey
