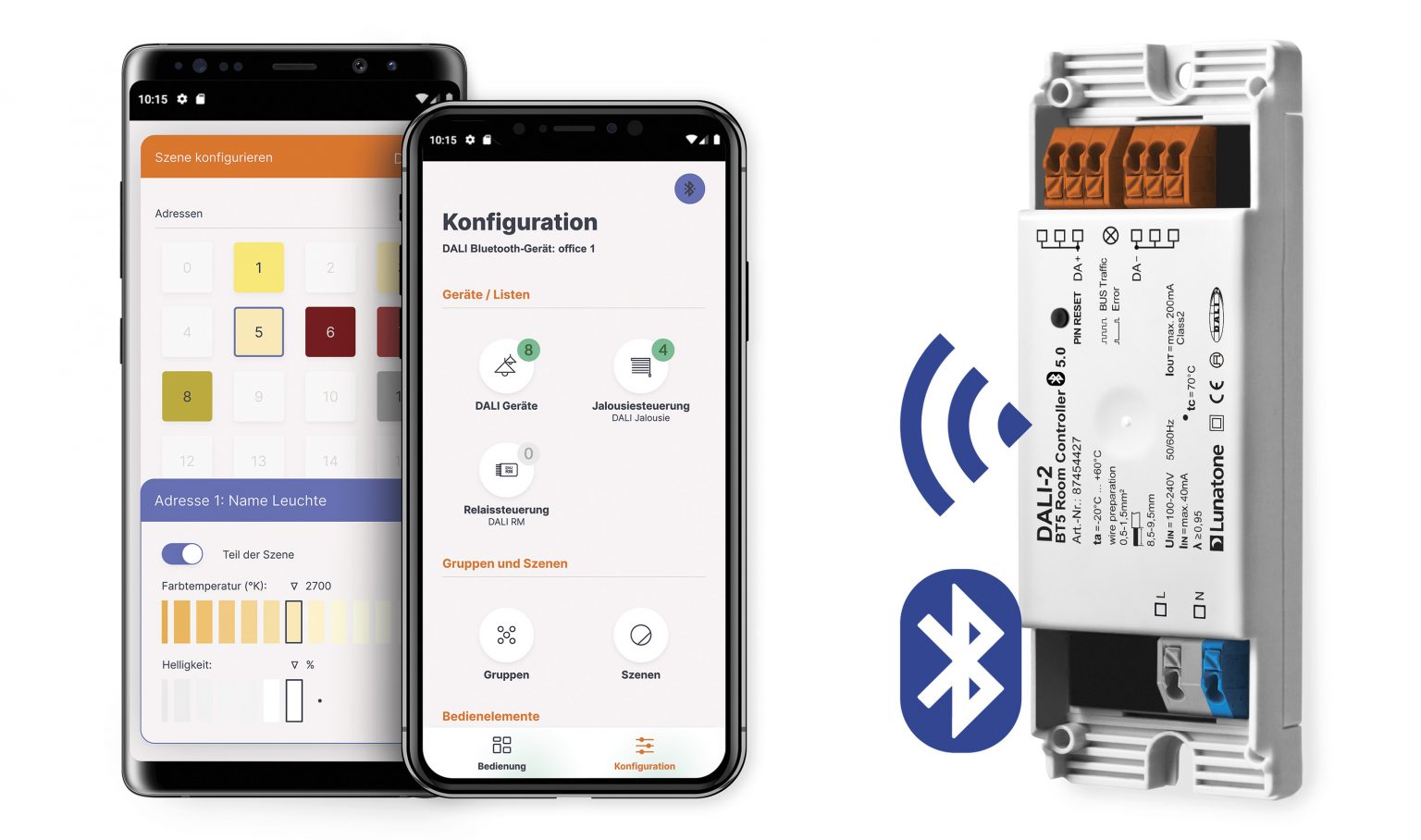

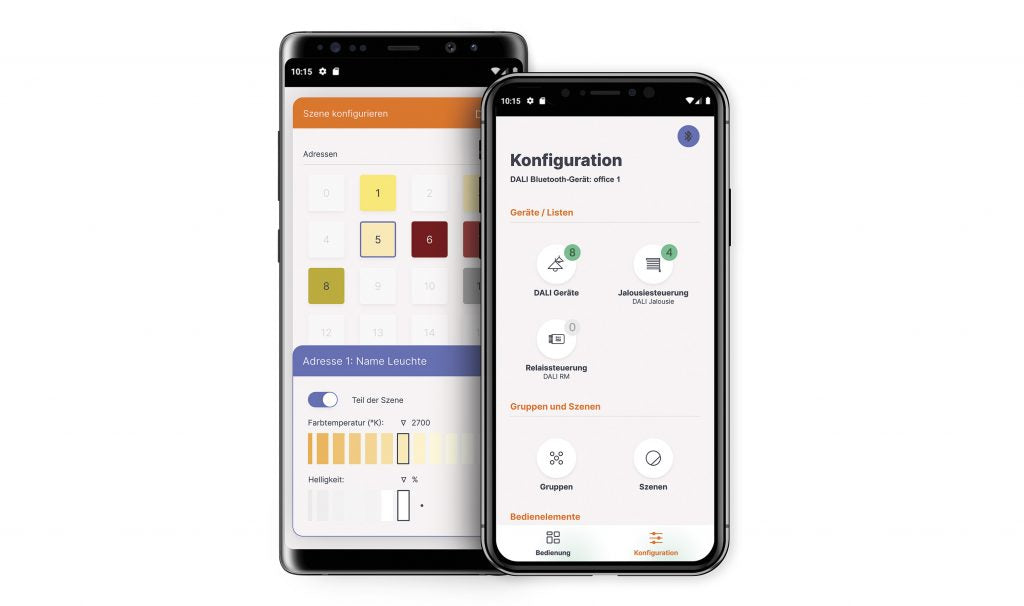

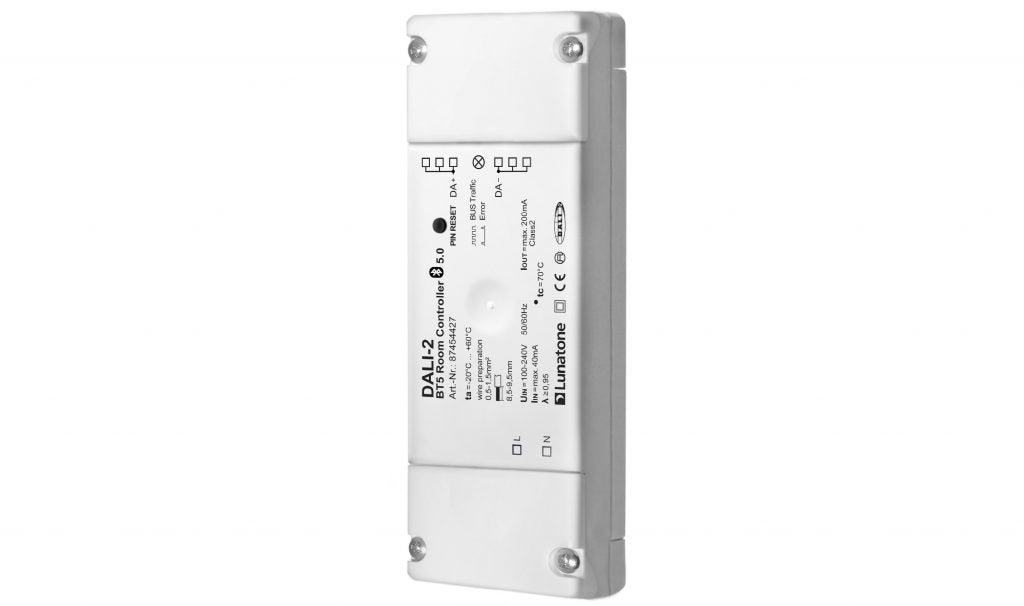

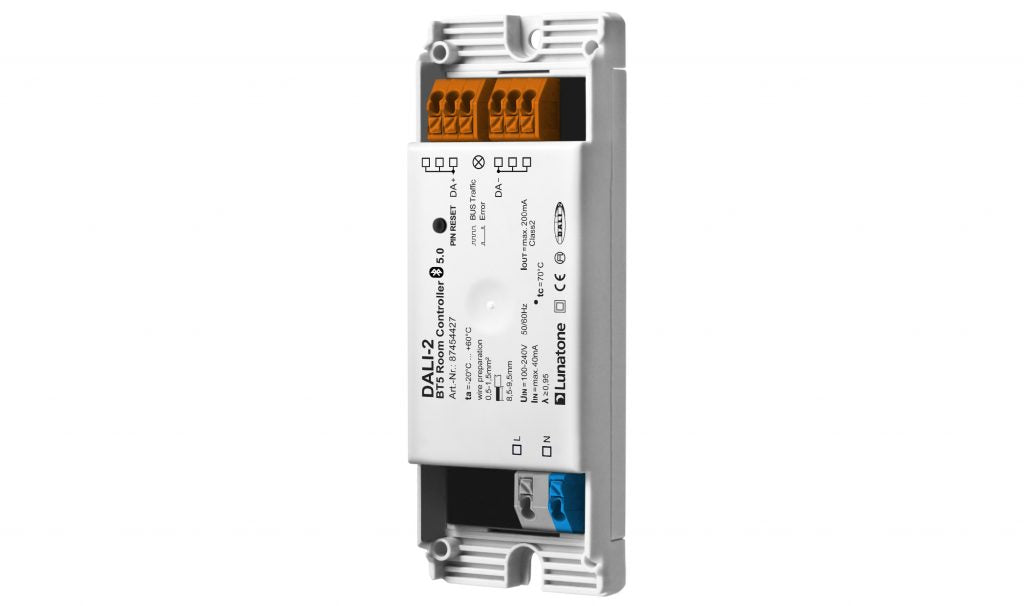

The Lunatone DALI Room Controller serves as an interface between Bluetooth 5.0 and DALI. The Lunatone smartphone application DALI-Cockpit Mobile offers a clear and simple interface with an installation assistant, various configuration options and a configurable user interface to control connected devices. The module has an integrated bus supply (200mA) for a DALI system of up to 64 DALI devices. The independent control gear is suitable for remote ceiling installation or integration in luminaires.
Specifications
Technical data
Ambient temperature
-20°C to +75°C
Protection class
IP40/IP20
Mounting
Remote ceiling, integration in class II devices
Electrical data
Input voltage range
100Vac 240Vac
Max. input supply current
40mA (@120Vac), 20mA (@240Vac)
Guaranteed DALI supply current
200mA
input type
Mains- voltage: L, N
Output
DALI
Function
Device type
Bluetooth 5.0 Interface
Dimensions
Dimensions (L x B x H)
120mm x 41mm x 22mm
Colour
Grey
